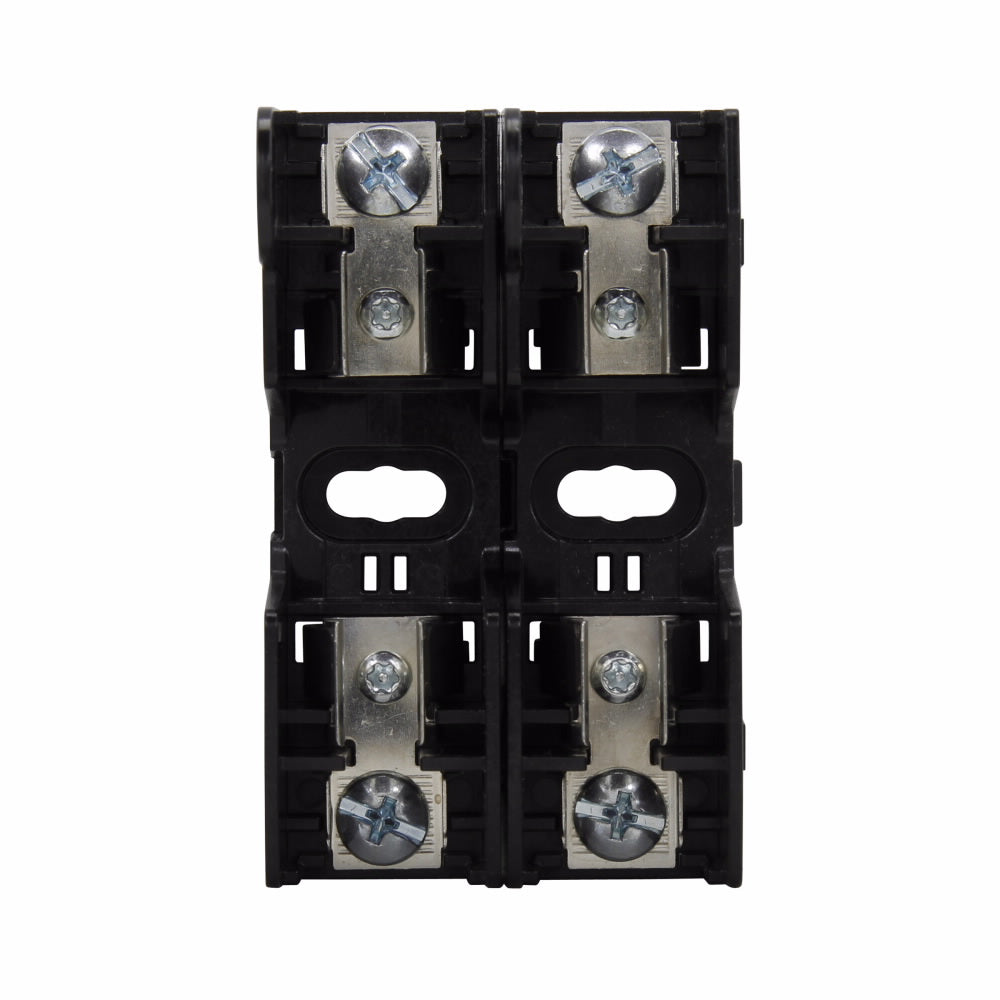

Eaton RM25030-2SR BUS FUSE BLOCK CLASS R 250V 30A 2 POLE

Product Description

The Eaton RM25030-2SR BUS Fuse Block is designed for modular use. This product operates at 250 volts with a current rating from zero to thirty amps. It features a two-pole connection, suitable for various electrical assemblies and applications.

• Modular design allows for quick tool-less assembly.
• Compatible with 18 to 10 AWG wire.
• Temperature rating ranges from -40 to 120 degrees Celsius.

Product Highlights

This fuse block offers flexibility for both DIN rail and panel mount installations, ensuring versatility for different project requirements.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: RM25030-2SR

Technical Specifications

• Amperage Rating: 0 to 30 A
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Class: R
• Connection Type: Screw
• Dimensions: 3.2 in L x 2 in W x 1.4 in H
• Fuse Diameter: 0.56 in
• Fuse Length: 2 in
• Material: Thermoplastic
• Mounting Type: DIN Rail/Panel
• Number of Poles: 2
• Series: RM Series
• Standards/Approvals: CE Certified, CSA File No.47235, REACH Compliant, RoHS Compliant, UL File No.E14853 Guide IZLT
• Suitable For Use With: Low-Peak LPN Series Time Delay, Limitron KTN-R Series Fast Acting, Fusetron FRN Series Time Delay Ferrule Fuse
• Voltage Rating: 250 V
• Temperature Rating: -40 to 120 deg C
• Type: Modular
