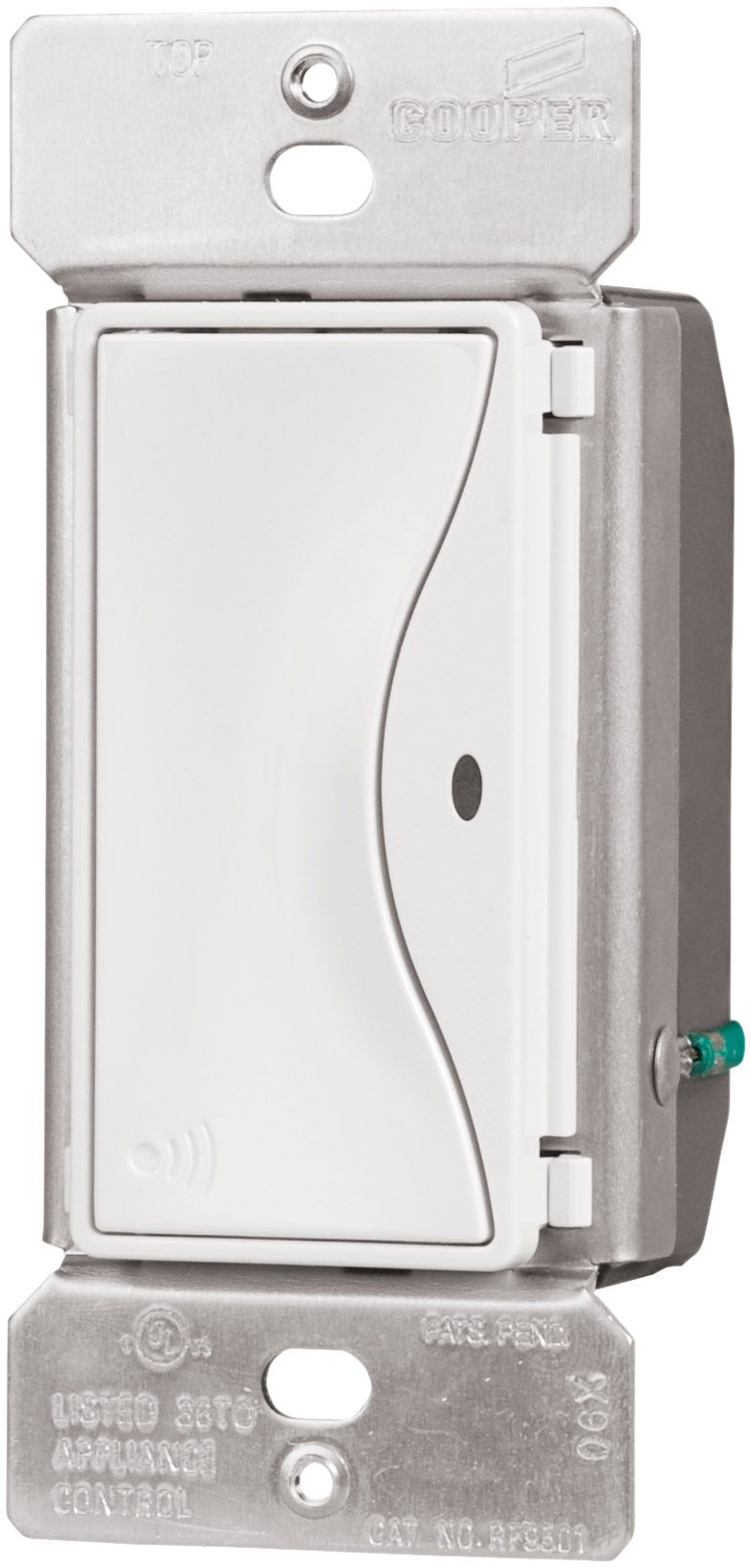

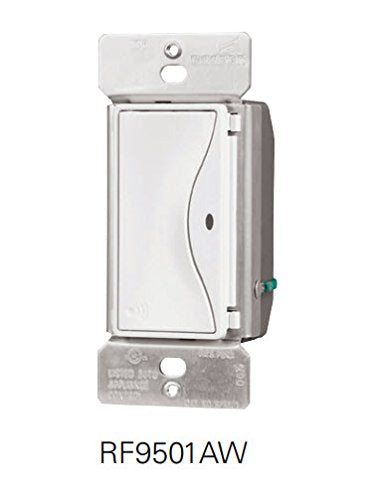

Eaton RF9501AW Aspire RF Single-Pole Wireless Light Switch 15-Amp REPLACEMENT RF9517

Product Description

The Eaton RF9501AW ASPIRE RF 15-Amp Single-Pole Wireless Light Switch is ideal for playrooms and other areas where lights are often left on. This light switch can control up to (5) RF devices through association function. It features a programmable delayed OFF feature and provides the convenience of controlling multiple devices with a button click. It is compatible with LED, CFL, incandescent, MLV, ELV, fluorescent, and halogen lighting.

• Ideal for playrooms and other areas where lights are often left on
• Can control up to (5) RF devices through association function to cover all the bases
• Includes a programmable delayed OFF feature

Product Highlights

The Eaton RF9501AW is a 15-Amp single-pole wireless light switch with a programmable delayed OFF feature. It can control up to 5 RF devices and is suitable for various lighting types.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: RF9501AW

Technical Specifications

• Brand: Eaton
• Model / MPN: RF9501AW
• Operating frequency: 60Hz
• SKU: RF9501AW
• Product Name: Eaton Z-Wave designer switch
• Catalog Number: RF9501AW
• UPC: 032664672231
• Product Length/Depth: 1.63 in
• Product Height: 3.81 in
• Product Width: 1.8 in
• Compliances: FCC Compliant
• Certifications: NOM, cULus Listed
• Product Type: Designer switch
• Amperage Rating: 15A
• Frequency rating: 60 Hz
• Voltage rating: 120 V
• Load type: HAL, FLR, MLV, INC, ELV, CFL, LED
• Number of poles: Single-pole
• Switch type: Single-pole, multi-location
• Type: Designer switch
• Used with: RF9517
• Special features: Power Failure Memory
• Current Rating: 15 Amps
• Connector Type: Wireless
• Switch Type: Rocker
• Terminal: Button
• Circuit Type: 1-way
• Mounting Type: Wall Mount
• Controller Type: SmartThings, vera
• Control Method: App
• Connectivity Protocol: Wi-Fi, Z-Wave
• International Protection Rating: IP00
• Specification Met: Certification
• Amps: 15
• Poles: 1
