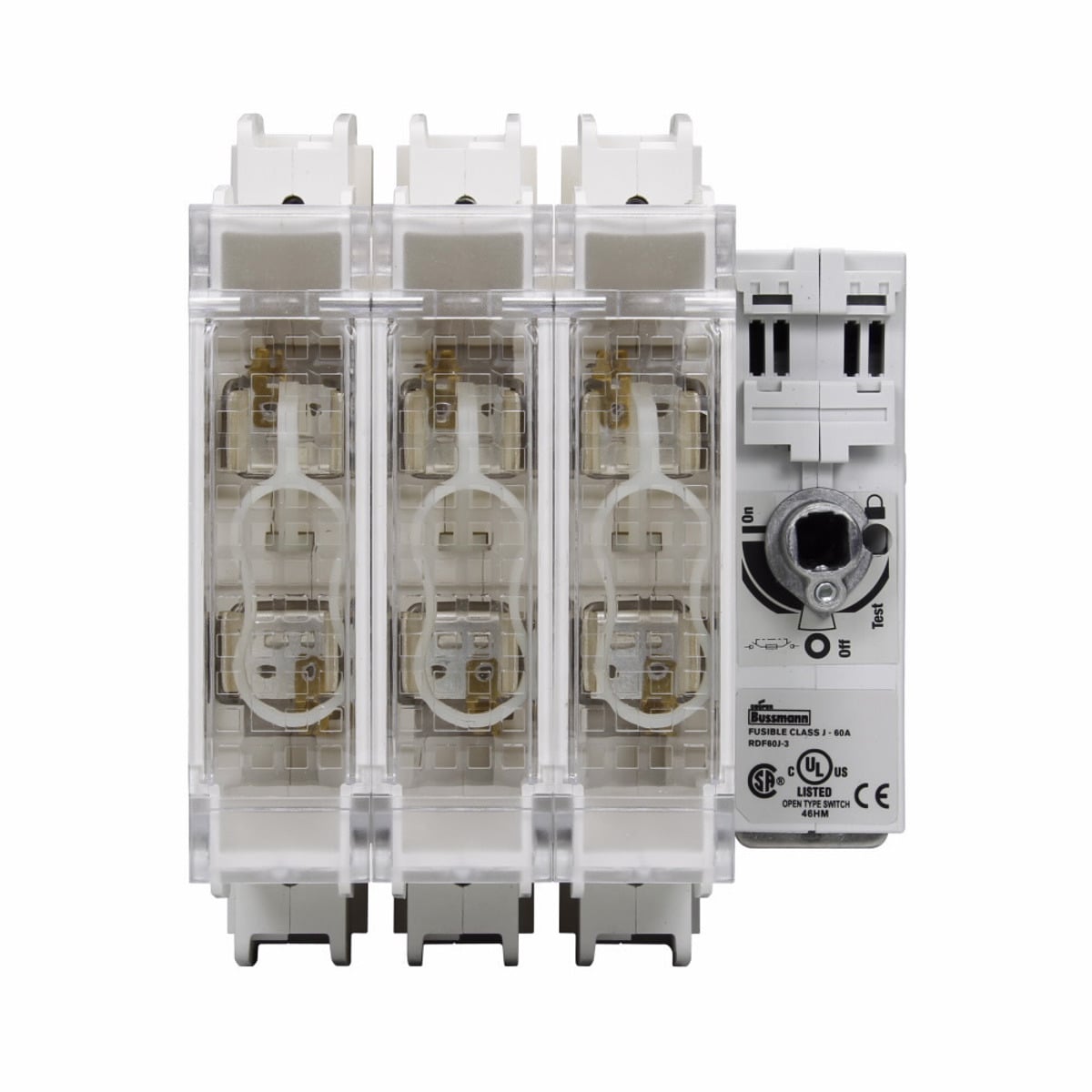

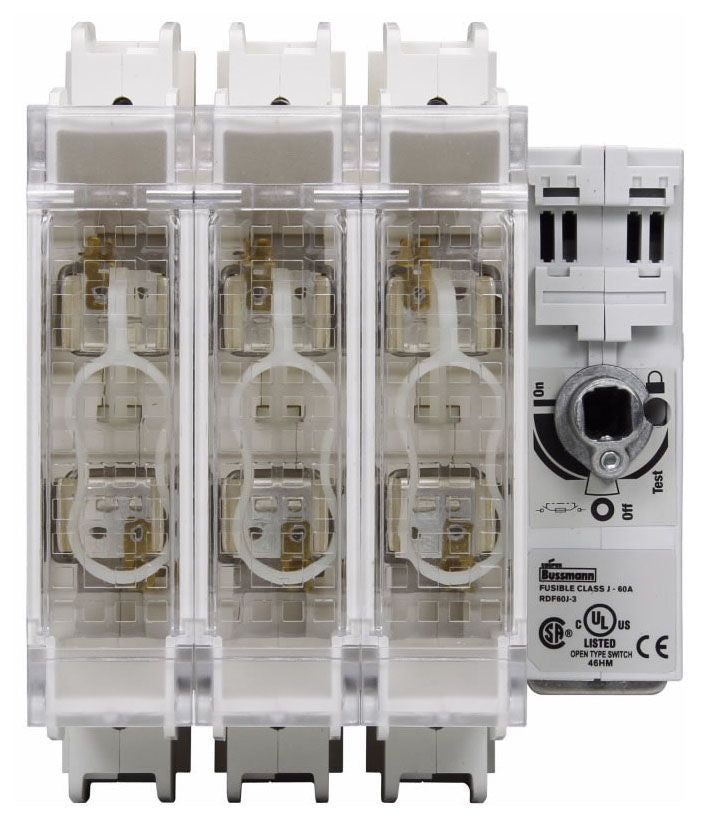

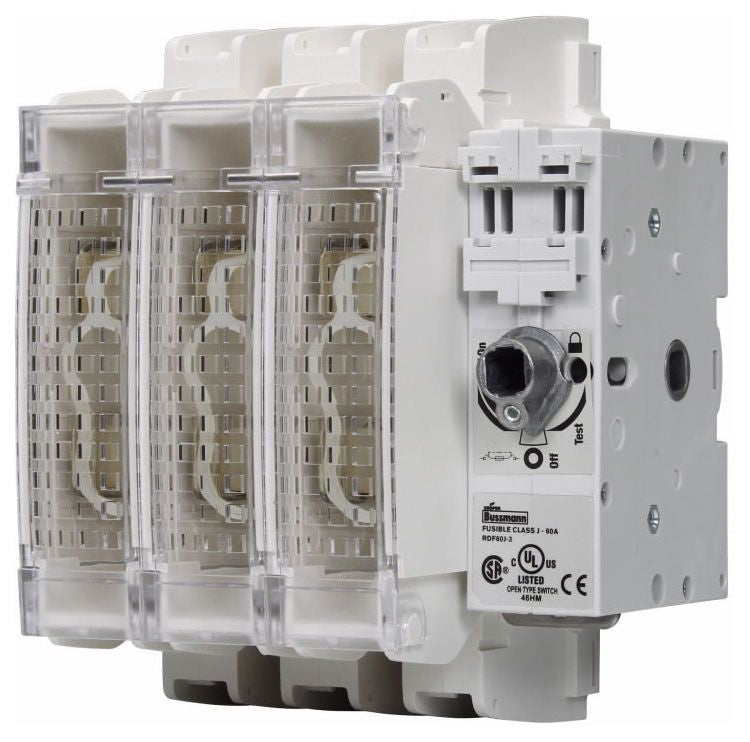

Eaton RDF60J-3 Bussmann Fused Rotary Disconnect Switch 60 A (3 Pole) RDF60J-3

Product Description

Eaton RDF60J-3 is a Bussmann series fused rotary disconnect switch rated 60 A for 600 Vac and 250 Vdc operation. The standard 3-pole device provides fused isolation and protection with front/side handle operation and flange mounting. It has a 200 kA short-circuit rating, -20 to 70 deg C temperature range, and lug terminals supporting solid and stranded conductors. Typical applications include machinery and industrial power distribution.

• Class J fusible rotary disconnect, 3 poles, 60 A rating
• Rated 600 Vac and 250 Vdc; 200 kA short-circuit rating; specified horsepower ratings
• Front/side handle actuator; flange, panel or DIN rail mounting; lug terminals; conductor size 12 to 1 AWG (stranded)

Product Highlights

Fused rotary disconnect for isolation and circuit protection in industrial and machinery applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: RDF60J-3
• Country of Origin: France

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: RDF60J-3
• Series: Bussmann RDF
• Product Type: Fused rotary disconnect switch
• Switch Type: Fused rotary disconnect
• Fuse Type: Class J
• Current Rating: 60 A
• Voltage Rating: 600 Vac, 250 Vdc
• Number of Poles: 3
• Phase: 3
• Short Circuit Current Rating: 200 kA
• Power / Horsepower Rating: 15 hp (general); 50 hp at 600 VAC; 10 hp at 250 VDC
• Actuator Type: Front/side handle
• Operator Included: Direct handle and shaft included
• Operator Position: Front/side
• Mounting: Flange; DIN rail; Panel
• Dimensions: 5.75 in L x 4.5 in W x 7.1 in H
• Weight: 4.4 lb
• Operating Temperature: -20 to 70 deg C
• Terminal Type: Lug
• Conductor Size: 12 to 10 AWG (solid); 12 to 1 AWG (stranded)
• Approvals / Certifications: CE; CSA C22.2 No. 4/257020; cULus Listed; IEC 60947-3; NFPA 79; RoHS Compliant; UL 98/489 File No. E155130/E359801
• Applicable Standards: NFPA 79; IEC 60947-3; UL 98
• Application: Stationary machinery and factory/robotics equipment
