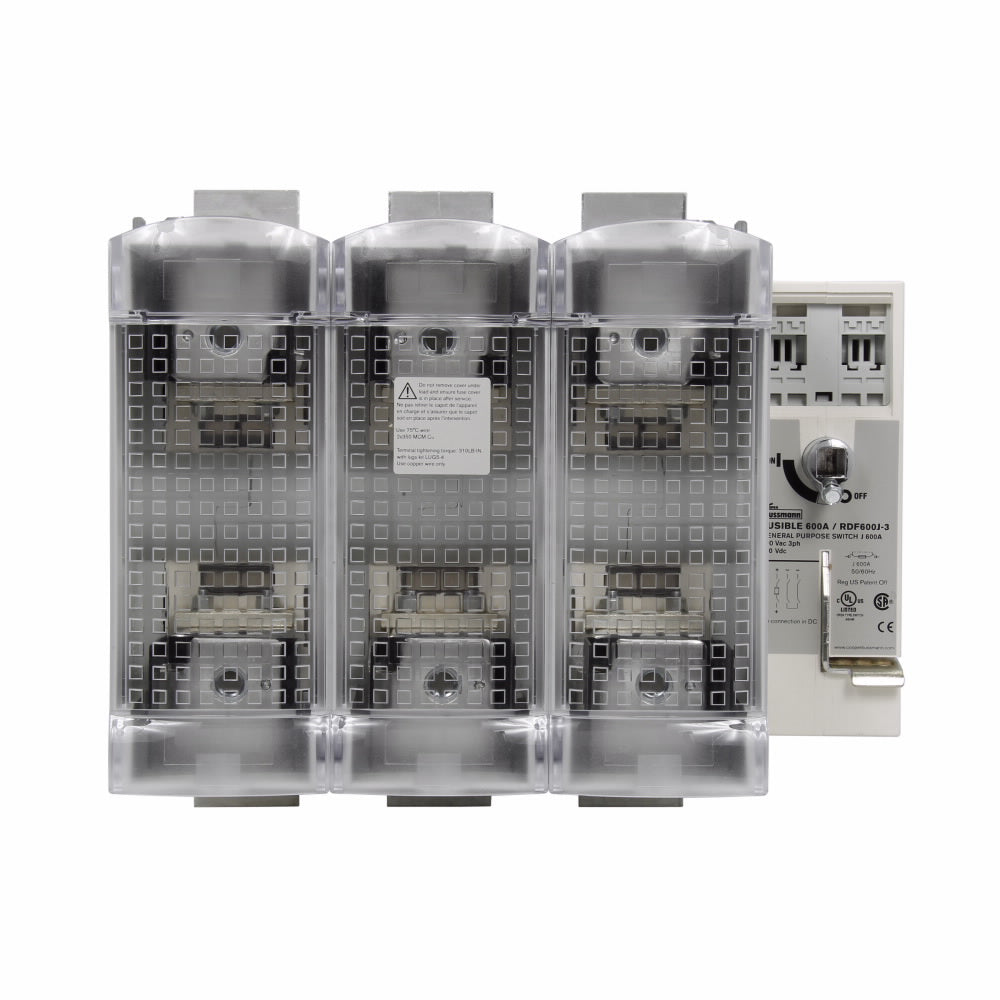

Eaton RDF600J-3 Bussmann Switch 600A J 3P UL98 (1)

Product Description

The Eaton RDF600J-3 Bussmann Switch is a Class J fused standard rotary disconnect switch designed for various industrial applications. It operates at 600 environmental AC/DC volts with a current rating of 600 amperes and is suitable for use in stationary machinery and robotics. The switch is equipped with a front handle actuator, providing easy access for operation. It supports a horsepower rating of two hundred to five hundred and features a three-pole configuration.

• Make and break power under load
• Double break by pole enhances safety
• Temperature rating from negative twenty to seventy degrees Celsius

Product Highlights

This disconnect switch is essential for safely isolating electrical circuits. It meets various standards, making it a reliable choice for electrical installations.

Product Information

Standard Information

• Manufacturer: Eaton
• Category: Electrical, Distribution Equipment

Technical Specifications

• Actuator Type: Front Handle
• Amperage Rating: 600 A
• Application: Stationary Machinery Equipment in Factory and Robotics Applications
• Dimensions: 14.5 in L x 11.2 in W x 9.6 in H
• Horsepower: 200 hp, 500 hp
• Number of Poles: 3
• Phase: 3 ph
• Short Circuit Current Rating: 200 kA
• Temperature Rating: -20 to 70 deg C
• Voltage Rating: 600 VAC/VDC
• Standards/Approvals: CE Marking, CSA C22.2 No. 4/257020, cULus Listed, IEC 60947-3, NFPA 79, RoHS Compliant, UL 98/489 File No. E155130/E359801
