EATON RDF400J-3
EATON Eaton RDF400J-3 BUS SWITCH 400A J 3P UL98 05171240277
EATON Eaton RDF400J-3 BUS SWITCH 400A J 3P UL98 05171240277
EATON RDF400J-3
Eaton RDF400J-3 BUS SWITCH 400A J 3P UL98 05171240277
Eaton RDF400J-3 BUS SWITCH 400A J 3P UL98 05171240277

Eaton RDF400J-3 BUS SWITCH 400A J 3P UL98 05171240277

EATON
Brand: EATON
SKU: RDF400J-3
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

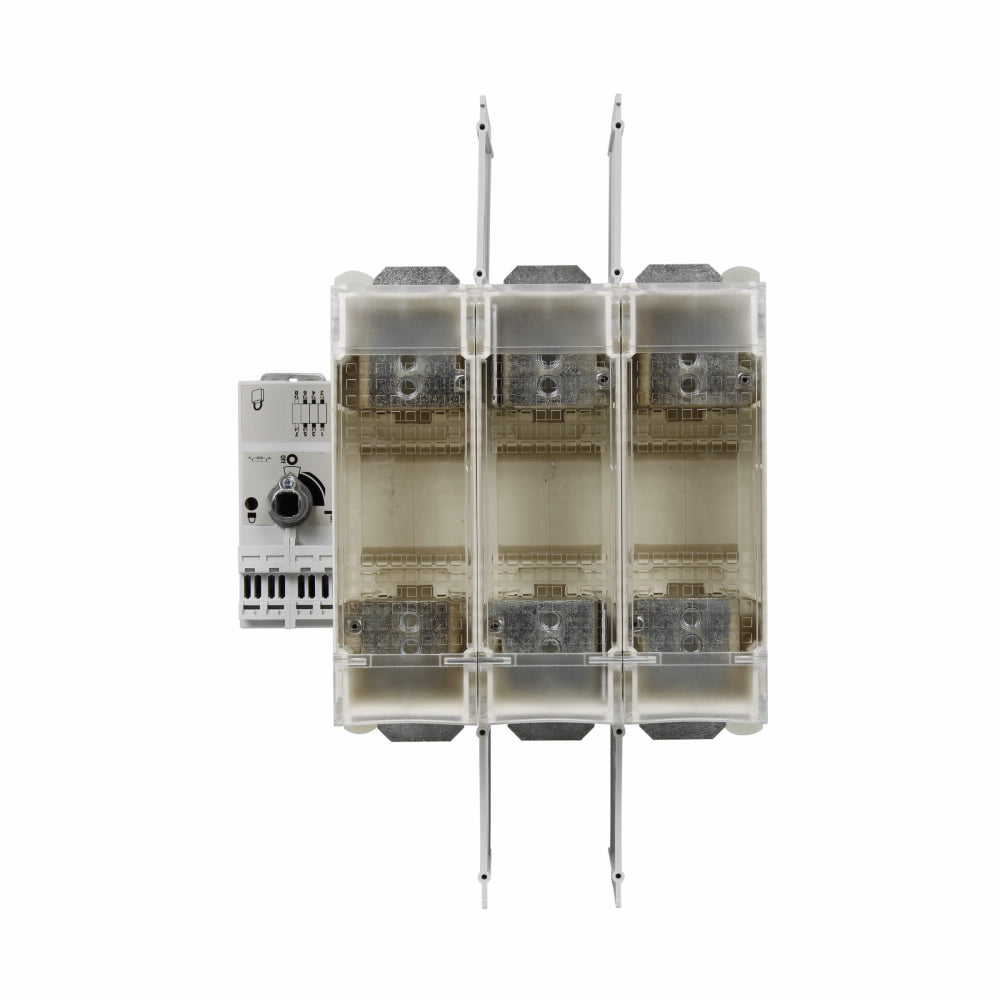

The Eaton RDF400J-3 is a Class J Fused Standard Rotary Disconnect Switch. This switch operates at six hundred volts alternating current (VAC) and two hundred fifty volts direct current (VDC) with a current rating of four hundred amps (A). It is designed for operational flexibility and safety with a front/side handle actuator. The product features connections for three phases and double break contacts for improved reliability.

  • Class J fused switch rated for six hundred VAC and two hundred fifty VDC
  • Can handle loads up to four hundred amps
  • Suitable for stationary machinery in factory and robotics applications

Product Highlights

This rotary disconnect switch is a robust choice for safely managing electrical loads. It is ideal for use in various industrial applications, ensuring effective isolation when needed.

Product Information

Standard Information

  • Manufacturer: Eaton
  • Manufacturer Part Number: RDF400J-3
Technical Specifications
Actuator Type:
Front/Side Handle
Amperage Rating:
400 A
Application:
Stationary Machinery Equipment in Factory and Robotics Applications
Dimensions:
1 in L x 7 in W x 15-1/2 in H
Horsepower:
125 hp, 350 hp at 600 VAC, 50 hp at 250 VDC
Number of Poles:
3
Voltage Rating:
600 VAC, 250 VDC
Short Circuit Current Rating:
200 kA
Temperature Rating:
-20 to 70 deg C
Standards/Approvals:
RoHS Compliant | PROP65 warning provided
