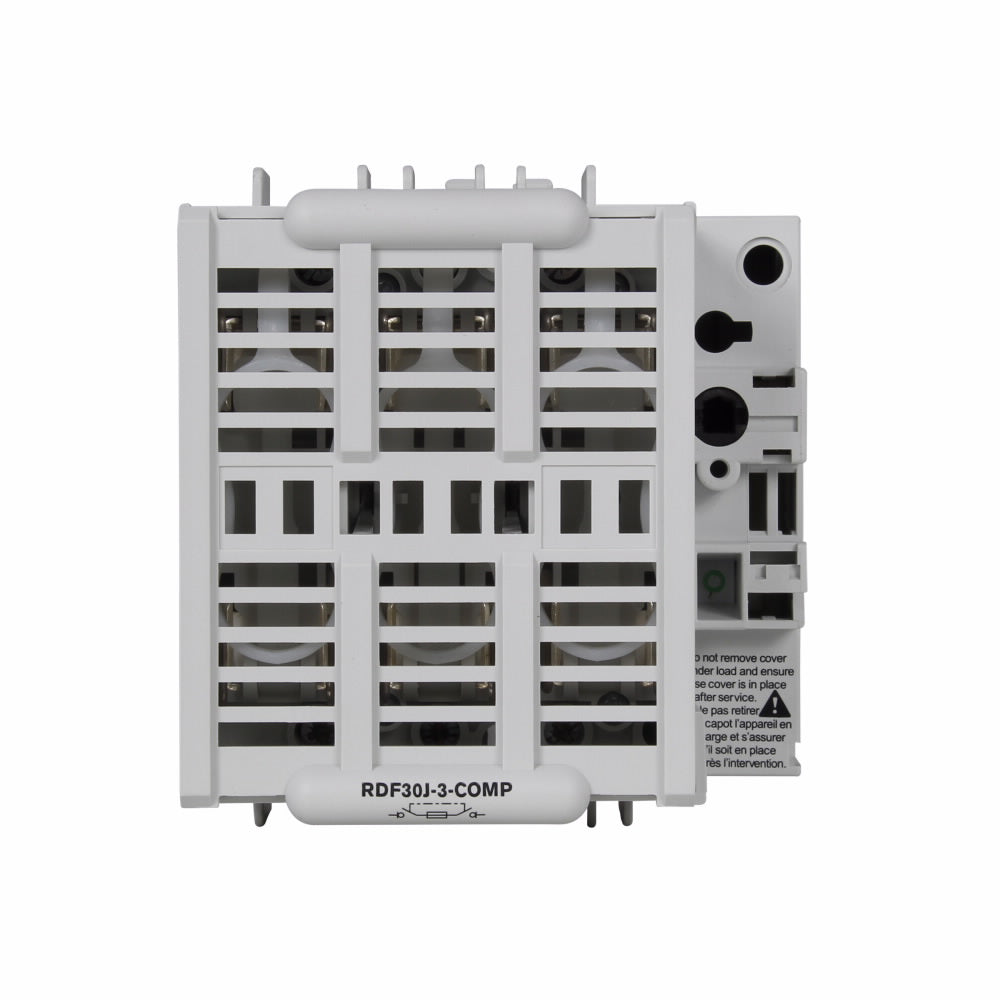

Eaton RDF30J-3-COMP BUS SWITCH 30A J 3P UL489 (1)

Product Description

The Eaton RDF30J-3-COMP is a Bussmann rotary disconnect switch designed for compact applications. This model handles up to thirty amps and operates at six hundred volts AC. It is suitable for both stationary machinery and robotics. The switch features three poles and is rated for a hundred kiloamperes short-circuit current. It is designed to be mounted on DIN rail or panels and can function effectively in temperatures ranging from negative twenty to seventy degrees Celsius.

• Operates at thirty amps and six hundred volts AC
• Rated for a hundred kiloamperes short-circuit current
• DIN rail and panel mount compatibility

Product Highlights

This switch ensures safe operation with a front handle actuator and double break contacts per pole for complete isolation. Its fingersafe design protects users and its operable features allow it to be installed in various orientations.

Product Information

Standard Information

• Manufacturer: Eaton
• Product Name: RDF30J-3-COMP BUS SWITCH

Technical Specifications

• Type: Compact Class J Fused
• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Phase: 3 ph
• Horsepower: 30 hp, 75 hp, 20 hp
• Dimensions: 4-1/2 in L x 3 in W x 3 in H
• Mounting Type: DIN Rail/Panel
• Short Circuit Current Rating: 100 kA
• Temperature Rating: -20 to 70 deg C
• Application: Stationary Machinery Equipment in Factory and Robotics Applications
