Product Description

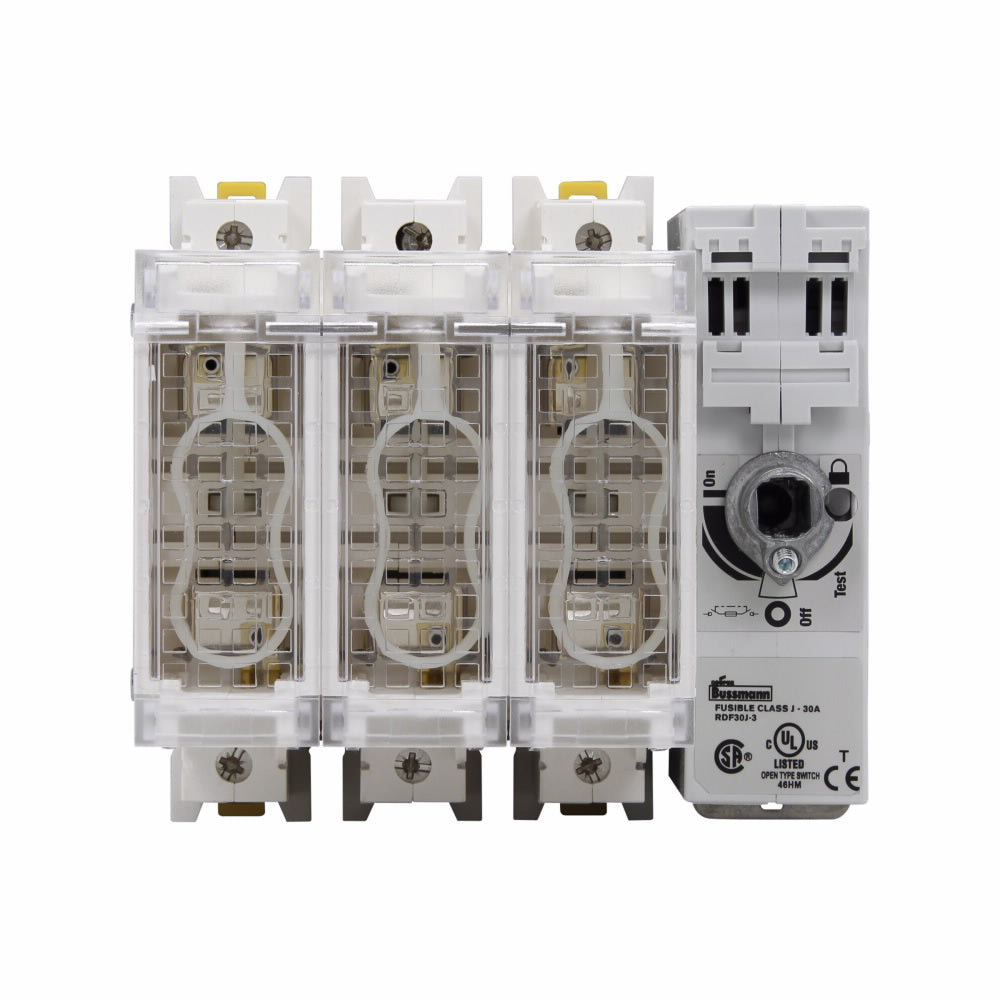

The Eaton RDF30J-3 is a Class J fused rotary disconnect switch designed for efficient circuit management. It operates at a voltage of six hundred volts alternating current and two hundred fifty volts direct current, with an amperage rating of thirty amps.
- Fused disconnect switch for reliable performance
- Suitable for various operational environments including robotics
- Mounting options include DIN rail and panel
Product Highlights
This switch allows for safe make and break of power circuits under load.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171240272
Technical Specifications
-
Actuator Type: Front/Side Handle
-
Amperage Rating: 30 A
-
Application: Stationary Machinery Equipment in Factory and Robotics Applications
-
Dimensions: 5.71 in L x 4.14 in W x 5.36 in H
-
Horsepower: 7-1/2 hp, 20 hp at 600 VAC, 5 hp at 250 VDC
-
Mounting Type: DIN Rail/Panel/Flange
-
Number of Poles: 3
-
Phase: 3 ph
-
Series: RDF
-
Short Circuit Current Rating: 200 kA
-
Voltage Rating: 600 VAC, 250 VDC
-
Temperature Rating: -20 to 70 deg C
-
Standards/Approvals: CE Marking, CSA C22.2 No. 4/257020, cULus Listed, IEC 60947-3, NFPA 79, RoHS Compliant, UL 98/489 File No. E155130/E359801
