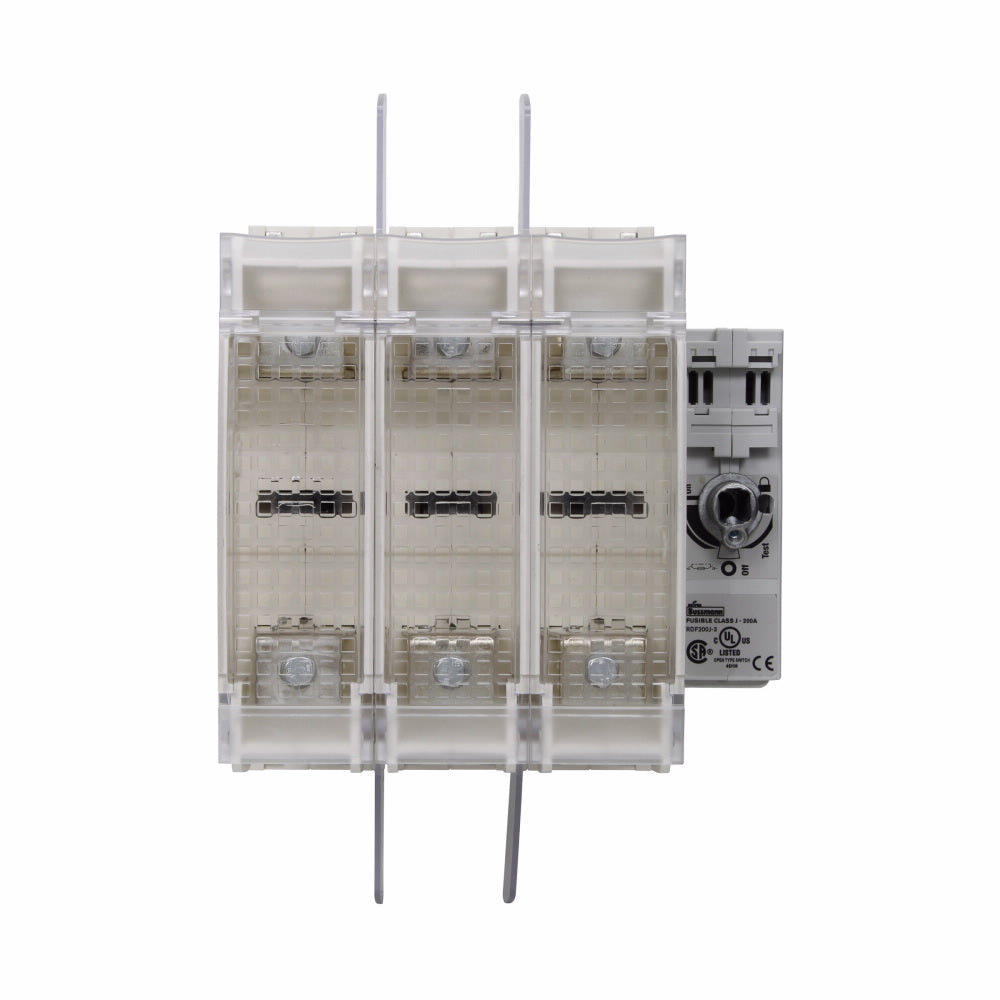

Eaton RDF200J-3 BUSS (1) Class J Fused Standard Rotary Disconnect Switch 600 VAC 200 A

Product Description

The Eaton RDF200J-3 is a Bussmann rotary disconnect switch. It is designed for reliable operation in electrical distribution systems. It supports voltages up to six hundred VAC and is rated for two hundred amperes. This switch is suitable for making and breaking power circuits under load.

• Class J fused standard rotary disconnect switch
• Designed for stationary machinery and robotics
• Robust construction for industrial applications

Product Highlights

Utilizes a front/side handle actuator for ease of operation.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171240267

Technical Specifications

• MPN: RDF200J-3
• Voltage Rating: 600 VAC
• Amperage Rating: 200 A
• Horsepower: 60 hp, 150 hp
• Number of Poles: 3
• Temperature Rating: -20 to 70 deg C
• Dimensions: 7-1/2 in L x 5 in W x 11-1/2 in H
• Short Circuit Current Rating: 200 kA
• Mounting Type: Flange
• Application: Stationary machinery equipment in factory and robotics applications
• Standards/Approvals: CE Marking, CSA C22.2 No. 4/257020, cULus Listed, IEC 60947-3, NFPA 79, RoHS Compliant, UL 98/489 File No. E155130/E359801
