Eaton RDF100J-3 BUS SWITCH 100A J 3P UL98

Product Description

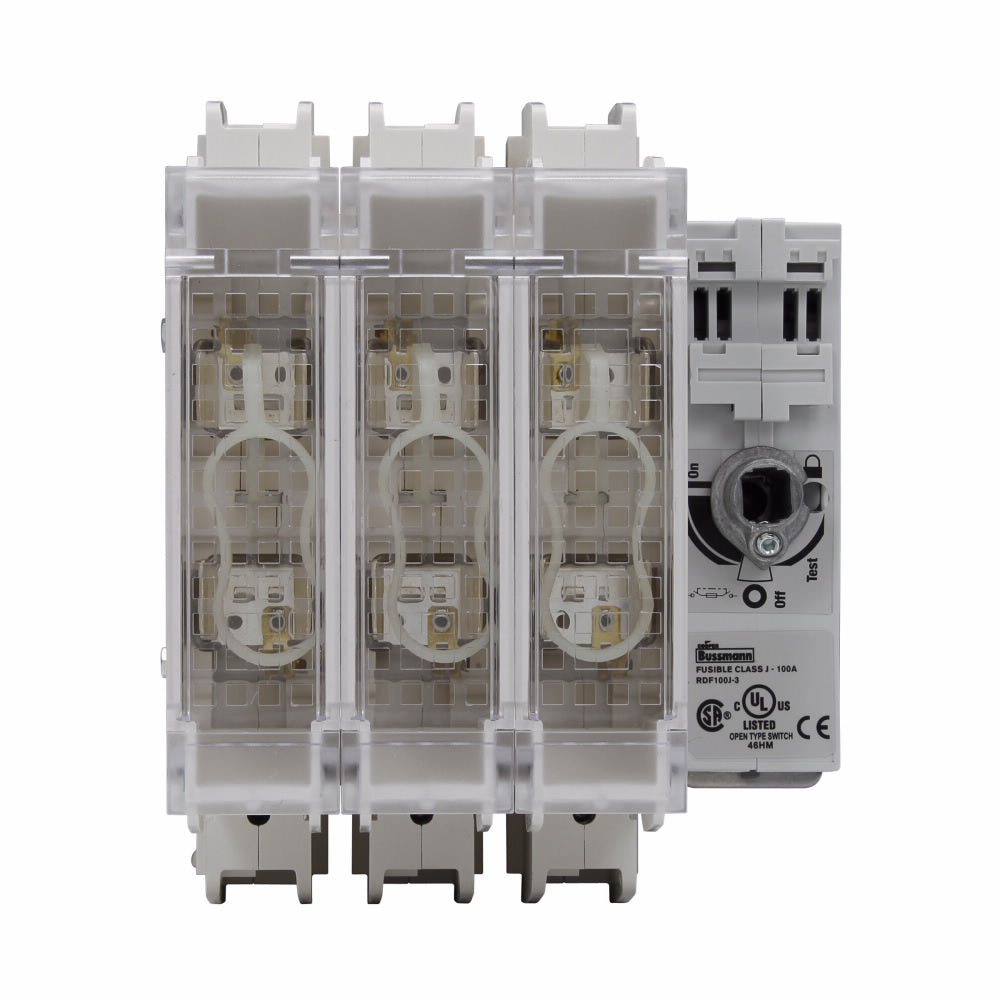

The Eaton RDF100J-3 is a Bussmann Class J Fused Standard Rotary Disconnect Switch. It features a voltage rating of 600 VAC and 250 VDC, with a current rating of 100 A. This model supports multiple horsepower ratings: 30 hp, 75 hp at 600 VAC, and 20 hp at 250 VDC. It is suitable for three-phase applications, designed to manage power circuits safely.

• Designed for stationary machinery and robotics applications
• Equipped with front and side handle actuators
• Meets high safety standards with a rated short circuit current of 200 kA

Product Highlights

This rotary disconnect switch is ideal for use in industrial settings, ensuring reliable power control and isolation when required.

Product Information

Standard Information

• Manufacturer: Eaton
• Product Category: Electrical

Technical Specifications

• Actuator Type: Front/Side Handle
• Amperage Rating: 100 A
• Voltage Rating: 600 VAC, 250 VDC
• Horsepower: 30 hp, 75 hp at 600 VAC, 20 hp at 250 VDC
• Dimensions: 5.8 in L x 4.75 in W x 7.5 in H
• Number of Poles: 3
• Phase: 3 ph
• Temperature Rating: -20 to 70 degrees C
• Short Circuit Current Rating: 200 kA
• Standards/Approvals: CE Marking, CSA C22.2 No. 4/257020, cULus Listed, IEC 60947-3, NFPA 79, RoHS Compliant, UL 98/489
