Product Description

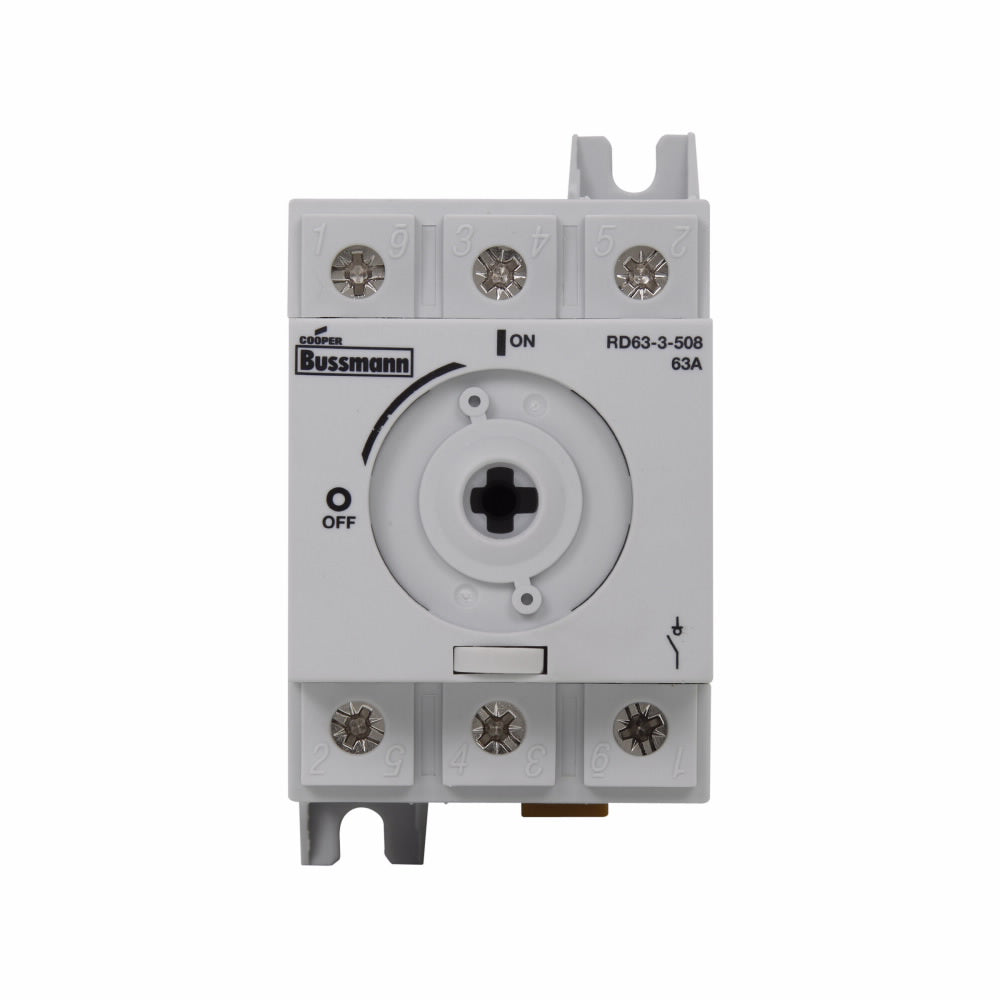

The Eaton RD63-3-508 is a Bussmann rotary disconnect switch designed for reliable operation in various industrial applications. This non-fused switch is rated for 600 VAC and 63 amps, making it suitable for motor control and disconnecting needs. The switch can handle three-phase operations and supports up to forty horsepower.
- Non-fused rotary switch for safety and reliability.
- Three-pole design for efficient performance.
- Wide application range in factories and robotics.
Product Highlights
This switch offers a front or side handle actuator to enhance accessibility and ease of use. The temperature rating ranges from -20 to 70 degrees Celsius, making it versatile in various environments.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Manufacturer Part Number: RD63-3-508
Technical Specifications
-
Amperage Rating: 63 A
-
Voltage Rating: 600 VAC
-
Horsepower: 15 hp, 20 hp, 40 hp
-
Number of Poles: 3
-
Phase: 3 ph
-
Short Circuit Current Rating: 50/65 kA
-
Temperature Rating: -20 to 70 degrees C
-
Application: Stationary machinery equipment in factory and robotics applications
-
Series: RD Series
-
Standards/Approvals: CSA C22.2 No. 40, IEC 60947, RoHS Compliant, UL 508
