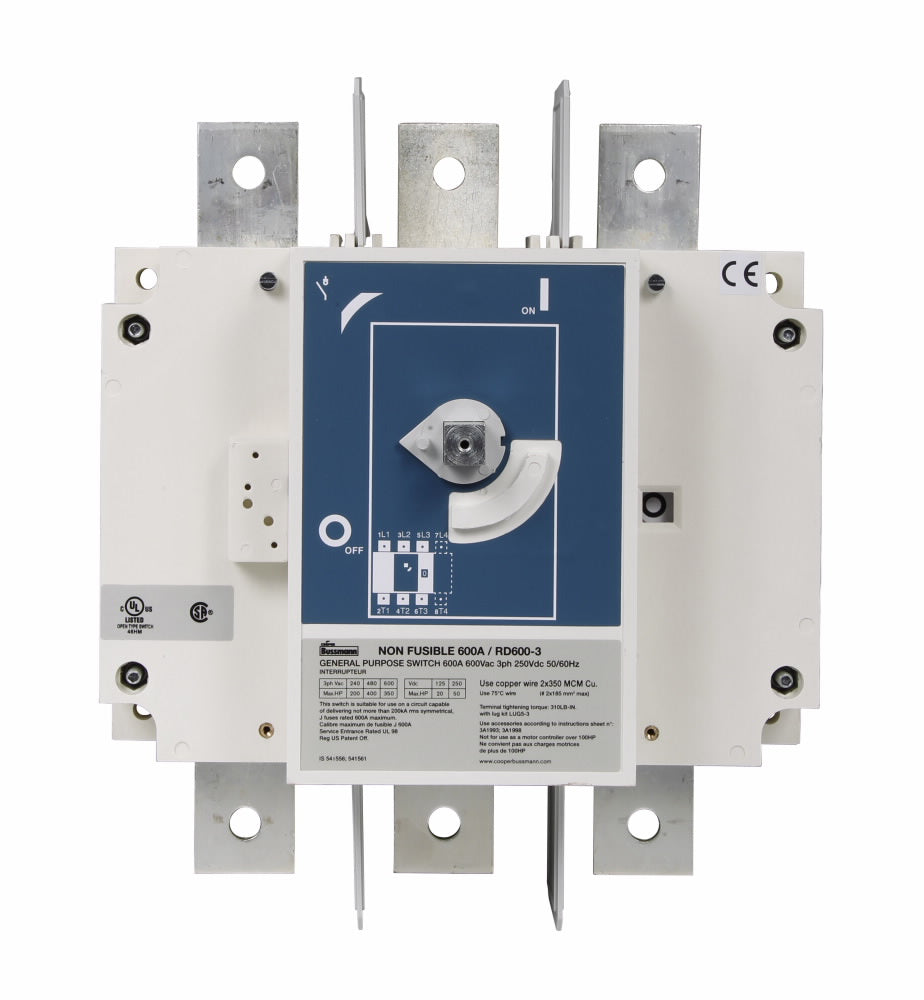

Eaton RD600-3 BUSSMANN SWITCH 600A NON-F 3P UL98 05171240256

Product Description

Eaton RD600-3 Bussmann Switch is a non-fused standard open rotary disconnect switch. It operates at six hundred volts AC and two hundred fifty volts DC with a current rating of six hundred amps. This switch can handle up to two hundred forty horsepower at various voltage levels and three hundred fifty horsepower at six hundred volts AC. The switch comes with a three-pole configuration and is designed for reliable performance in industrial applications.

• Rotary design with front handle actuator
• Lockout/tagout compatible for safety
• Endurance tested to meet UL standards

Product Highlights

A durable disconnect switch for general purpose use, the Eaton RD600-3 protects electrical circuits in industrial machinery and robotics.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171240256

Technical Specifications

• Actuator Type: Front Handle
• Amperage Rating: 600 A
• Application: General Purpose, Main Disconnect
• Contact Form: 1NO-1NC
• Dimensions: 5-1/2 in L x 11 in W x 12 in H
• Horsepower: 240 hp at 220/240/400 to 440/480 VAC
• Number of Poles: 3
• Voltage Rating: 600 VAC, 250 VDC
• Short Circuit Current Rating: 200 kA
• Temperature Rating: -20 to 70 deg C
• Standards/Approvals: CE Marking, UL 98
