Product Description

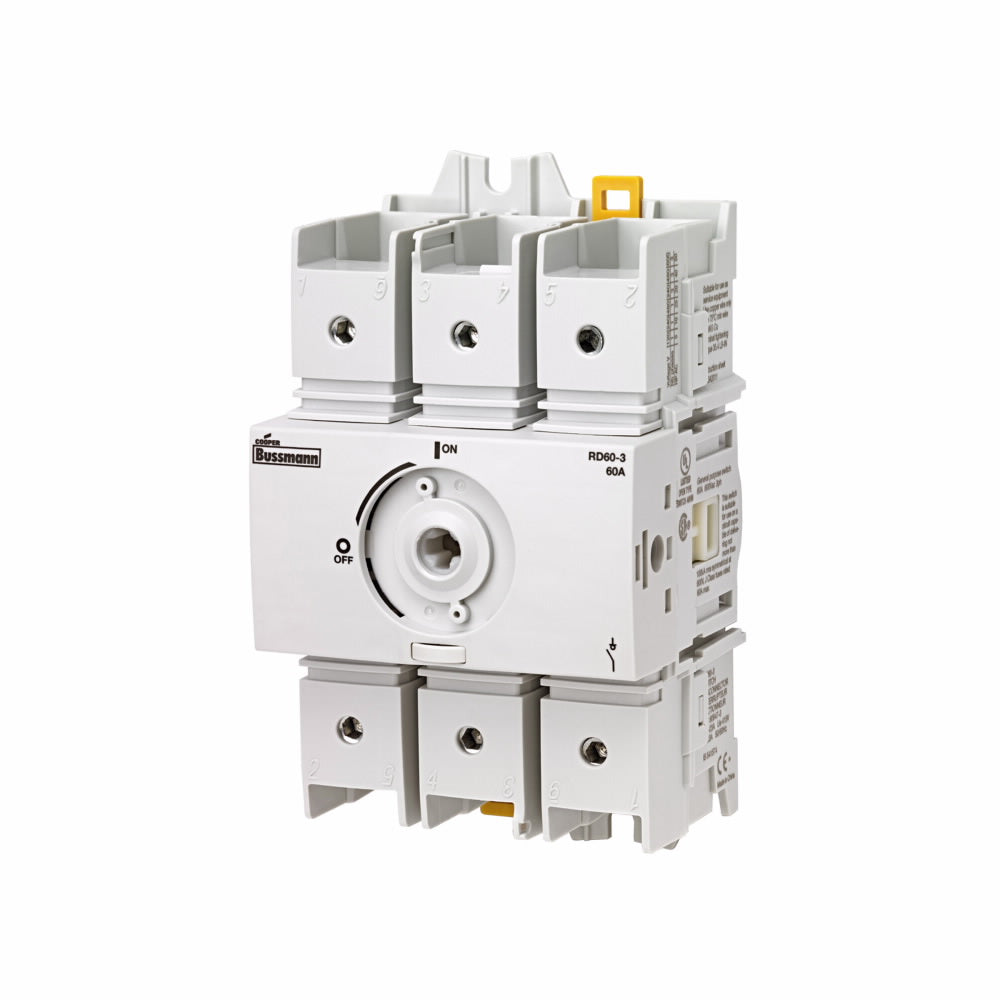

The Eaton RD60-3 is a compact non-fused rotary disconnect switch designed for various applications. This switch operates at 600 VAC and supports an amperage rating of sixty amps. It is suitable for three-phase systems and can handle a short circuit current of up to one hundred kA.
- Front and side handle actuator options
- DIN rail or panel mounting
- Temperature rated from -20 to 70 degrees Celsius
Product Highlights
This bus switch is ideal for stationary machinery equipment and robotics applications. It provides an effective way to disconnect power while ensuring safety.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Model Number: RD60-3
Technical Specifications
-
Voltage Rating: 600 VAC
-
Amperage Rating: 60 A
-
Horsepower: 50 hp
-
Number of Poles: 3
-
Temperature Rating: -20 to 70 deg C
-
Actuator Type: Front/Side Handle
-
Short Circuit Current Rating: 100 kA
-
Mounting Type: DIN Rail/Panel
