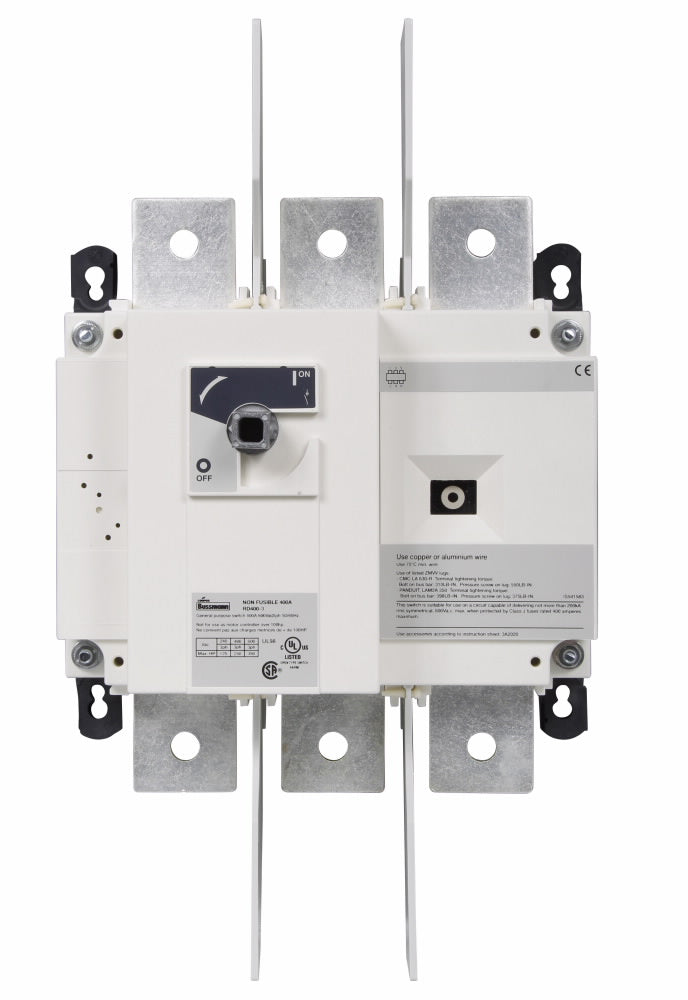

Eaton RD400-3 BUS SWITCH 400A NON-F 3P UL98 (1)

Product Description

Bussmann RD400-3 is a non-fused rotary disconnect switch designed for applications requiring efficient power management. This switch operates at six hundred volts AC and can handle four hundred amperes. It is suitable for three-phase systems and is rated for three poles.

• Front handle actuator for easy operation
• Environmentally rated -20 to 70 degrees Celsius
• 200 kA short circuit current rating for enhanced safety

Product Highlights

This disconnect switch is ideal for stationary machinery and robotics applications, providing reliable control and isolation.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: RD400-3

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 400 A
• Horsepower: 350 hp
• Number of Poles: 3
• Phase: 3 ph
• Short Circuit Current Rating: 200 kA
• Actuator Type: Front Handle
• Dimensions: 9-1/4 in L x 5 in W x 16 in H
• Application: Stationary Machinery Equipment in Factory and Robotics Applications
• Temperature Rating: -20 to 70 degrees Celsius
• Standards/Approvals: CE Marking, CSA C22.2 No. 4/257020, cULus Listed, IEC 60947-3, RoHS Compliant, UL 98 File No. E155130
