EATON RD40-3-508 RELAYS
EATON Eaton RD40-3-508 BUS SWITCH 40A NON-F 3P UL508
EATON RD40-3-508 RELAYS
Eaton RD40-3-508 BUS SWITCH 40A NON-F 3P UL508

Eaton RD40-3-508 BUS SWITCH 40A NON-F 3P UL508

EATON
Brand: EATON
SKU: RD40-3-508
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

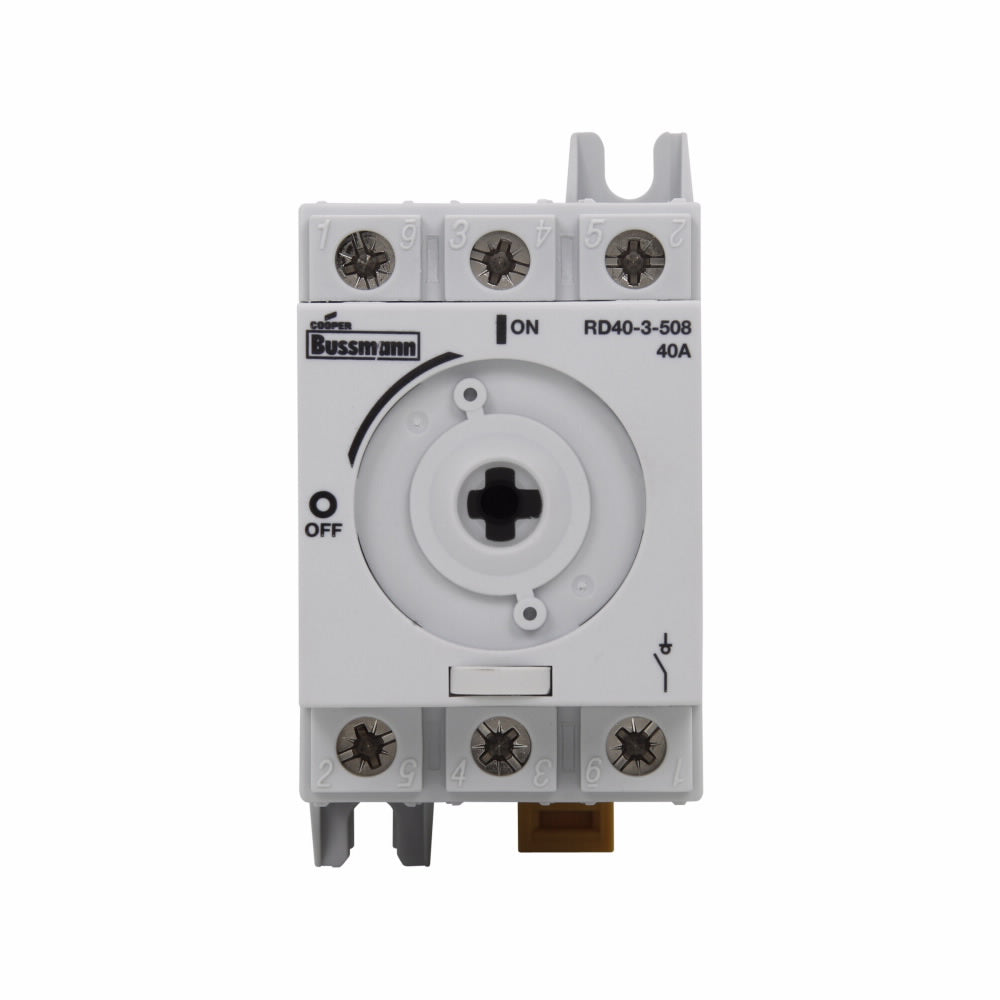

The Eaton RD40-3-508 is a Bussmann rotary disconnect switch designed for use in various electrical applications. This non-fused switch operates at a voltage rating of six hundred VAC with an amperage rating of forty A. It is suitable for motor disconnect applications and allows safe control and disconnection of motors or circuits within a panel.

  • Compact and robust design
  • Fingersafe design for enhanced safety
  • DIN rail and panel mount options available

Product Highlights

The RD40-3-508 is ideal for stationary machinery and robotics applications. The switch features a front and side handle operation for easy accessibility.

Product Information

Standard Information

  • Manufacturer: Eaton
  • Manufacturer Part Number: RD40-3-508
Technical Specifications
Actuator Type:
Front/Side Handle
Amperage Rating:
40 A
Application:
Stationary Machinery Equipment in Factory and Robotics Applications
Dimensions:
1.78 in L x 2.49 in W x 2.73 in H
Horsepower:
25 hp
Mounting Type:
DIN Rail/Panel
Number of Poles:
3
Phase:
3 ph
Series:
RD Series
Short Circuit Current Rating:
10/65 kA
Temperature Rating:
-20 to 70 deg C
Type:
Non-Fused
Voltage Rating:
600 VAC
