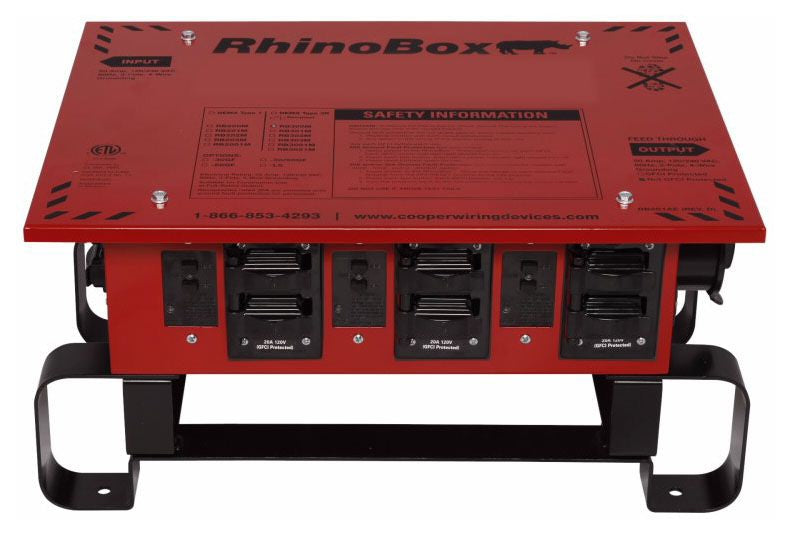

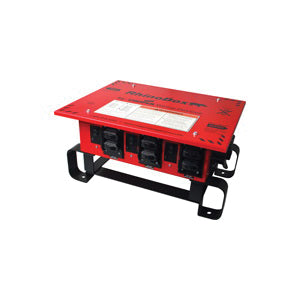

Eaton RB300M RhinoBox Manual Reset Temporary Power Center 50 A

Product Description

The Eaton RB300M RhinoBox is a manual reset temporary power center designed to safely centralize and distribute temporary power. Rated for 120/240 VAC at 50 A, this power center features a NEMA 3R enclosure for weather resistance. It is suitable for general maintenance, repair work, construction sites, and outdoor entertainment venues.

• Safely centralize and distribute or hub and spoke temporary power
• Unique patented "stackable" design allows multiple RhinoBox units to lock together for safe transport and storage
• Weatherproof receptacle covers and flip-up circuit breaker cover prevent nuisance tripping and protect from damage and weather

Product Highlights

Eaton's RB300M RhinoBox provides a robust solution for temporary power distribution in demanding environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: RB300M
• Country of Origin: MEX

Technical Specifications

• Amperage Rating: 50 A
• Application: For general maintenance and repair work in industrial facilities, temporary power distribution at construction sites, ship building facilities, expositions, theater, outdoor entertainment, film making and any other location where temporary power distribution is needed
• Color: Red
• Manufacturer Part Number: RB300M
• Material: Steel;18 ga Cold Rolled Steel
• NEMA Rating: NEMA 3R
• Number of Outlets: 1
• Number of Poles: 3
• Number of Wires: 4
• Series: RhinoBox��
• Standards/Approvals: cETLus Listed|UL 1640|CSA C22.2 No 14|NEC Articles 525, 590|OSHA Reg. 29CFR, Part 1926, Subpart K, 1926.404|GFCI Requirements;cETLus Listed|NOM Certified
• Type: Manual;Manual Reset
• Voltage Rating: 120/240 VAC
• Input Voltage: 120 VAC, 240 VAC
• Output Voltage: 120 VAC, 240 VAC
• Phase: 1
• Output Receptacles: (6) 20A Duplex, (1) 30A Locking, (1) 50A Power
• Current Rating: 50 A
• Receptacle Details: (12) 5-20R GFCI Receptacles, (1) L6-30R GFCI Receptacle, (1) 50A CS6369 Receptacle
• Inlet Type: Twist Lock - CS6375
• Flip Cover: Yes
• Overload Protection: Yes
• GFCI Reset: Manual
• Power Feed Through: Yes
• Approvals: CSA, UL
• Country Of Origin: MEX
