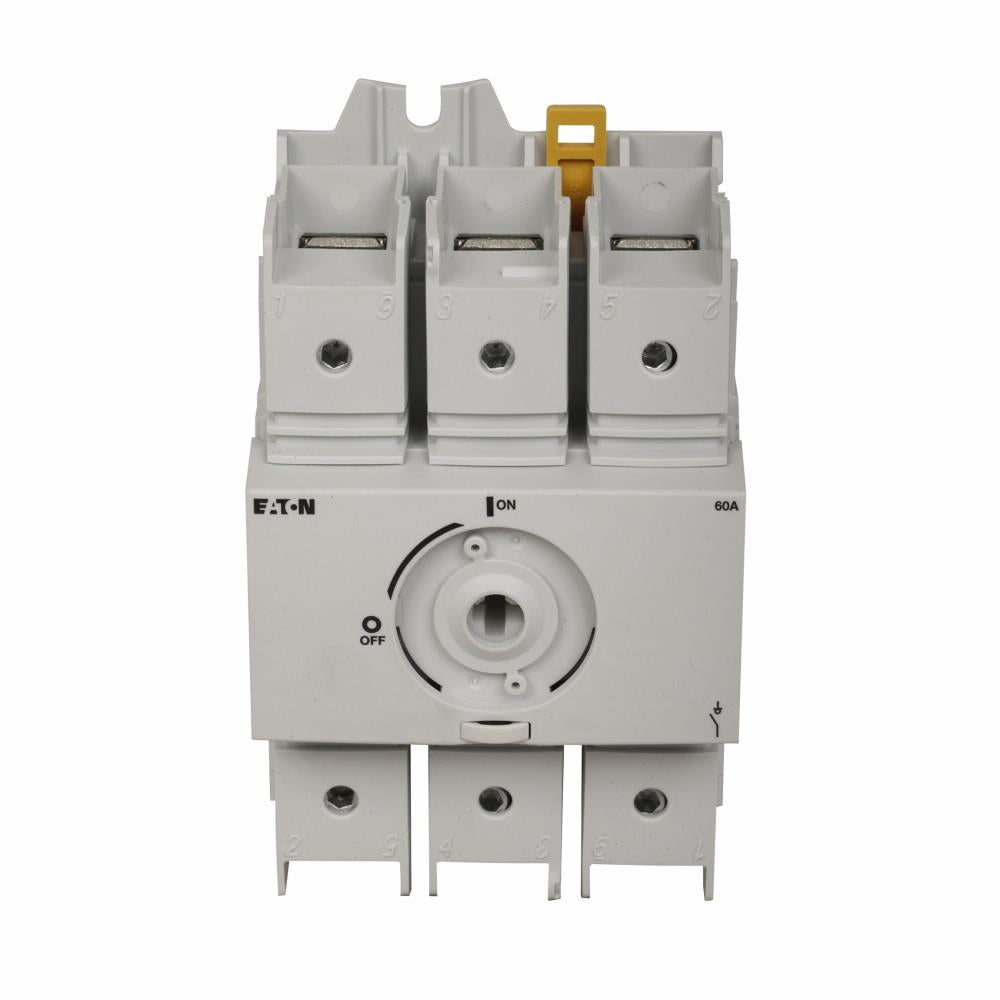

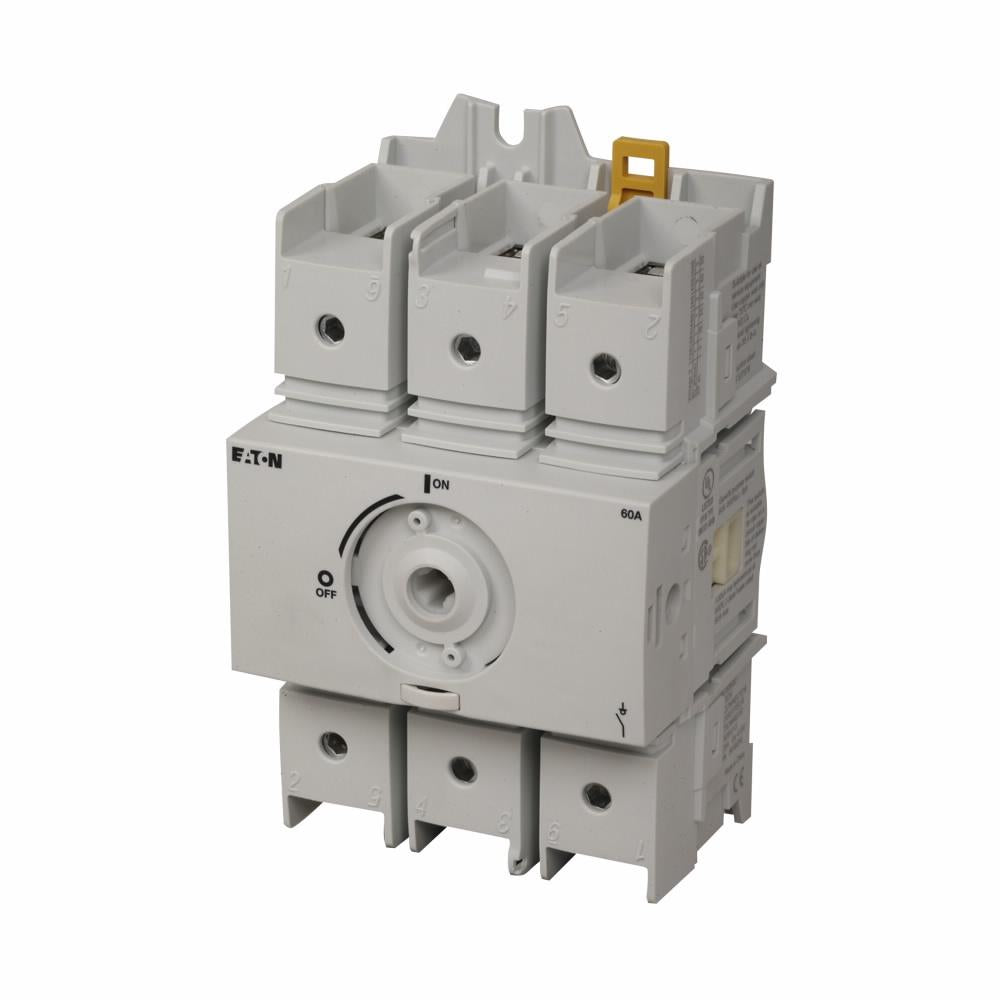

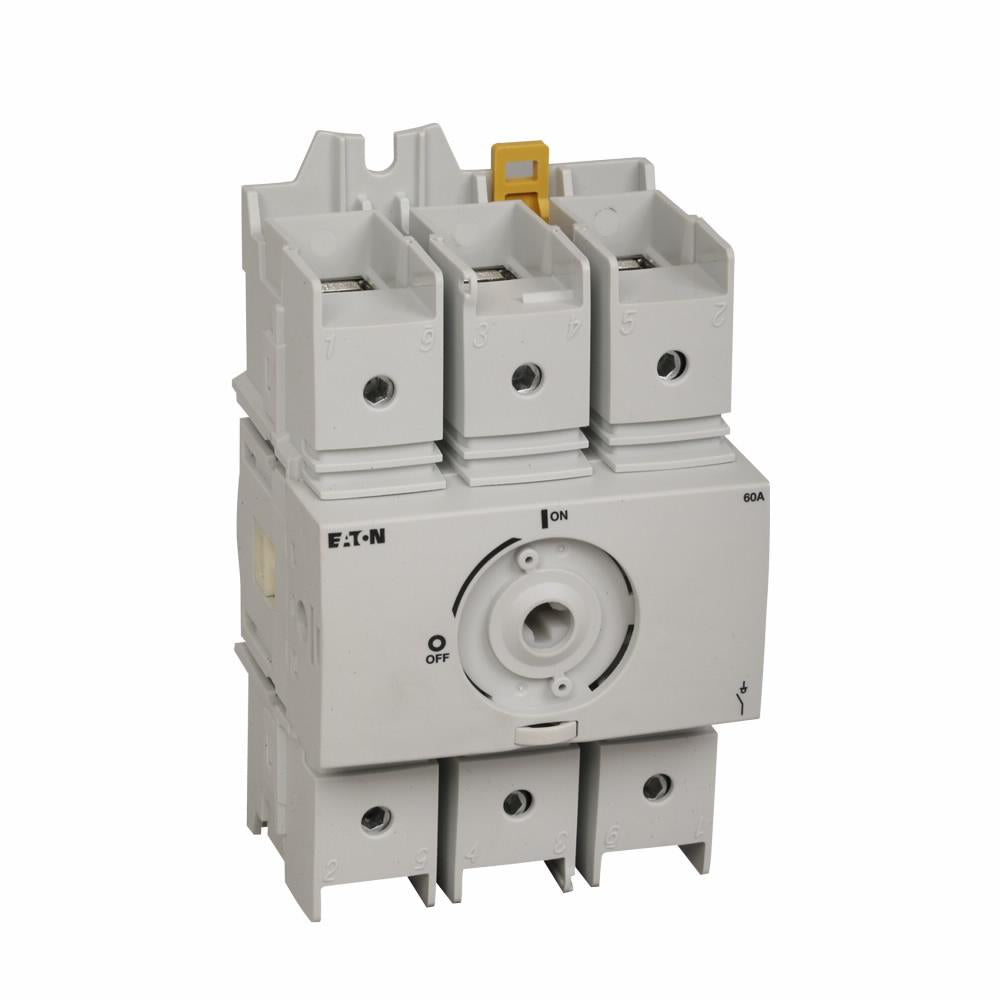

Eaton R9C3100U rotary disconnect switch 100 A

Product Description

The Eaton R9C3100U rotary disconnect switch ensures making or breaking on load and safety isolation for low voltage electrical circuits, particularly for machine control circuits up to 600 VAC. It is suitable for industrial facilities, factories, control, and power distribution applications. The switch is a C-Frame non-fusible type.

• Direct or external operation handle (padlockable in on position)
• Double breaking per phase
• Suitable for DIN rail mounting

Product Highlights

The Eaton rotary disconnect switch is a three-pole, 100A, 600V switch designed for safety and reliability in industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: R9C3100U
• Country of Origin: United States

Technical Specifications

• Actuator Type: Rotary Handle
• Mounting Type: DIN Rail
• Phase: 3 ph
• Series: R9 Series
• Short Circuit Current Rating: 25 kA
• Terminal Type: Line/Load
• Type: C-Frame Non-Fusible
• Voltage Rating: 600 VAC
• Amperage Rating: 100 A
• Horsepower: 50 hp, 52 hp
• Number of Poles: 3
• Product Name: Eaton rotary disconnect switch
• Catalog Number: R9C3100U
• UPC: 786685402932
• Product Length/Depth: 2.52 in
• Product Height: 5.62 in
• Product Width: 3.07 in
• Certifications: CSA Certified EN Listed IEC Rated UL 98
• Product Type: Rotary disconnect switch
• Product Category: Switch Body
• Approval: UL 98, CSA C22.2, CE
• Application: Industrial Facilities, Factories, Control and Power Distribution Applications
• Current Rating: 100 Amp
• Mounting: Base/DIN Rail
• UNSPSC Code: 39120000
• Maximum Current: 100 A
• Special Features: Compact, Direct or External Operation Handle, Padlockable in on Position, Double Breaking Per Phase
• Standards: UL 98
• Fuse Type: Non-Fusible
• Contact Voltage AC Max: 600V
• Contact Current AC Max: 100A
• No. of Poles: 3 Pole
• Product Range: R9 Series
• SVHC: No SVHC (17-Dec-2015)
