Product Description

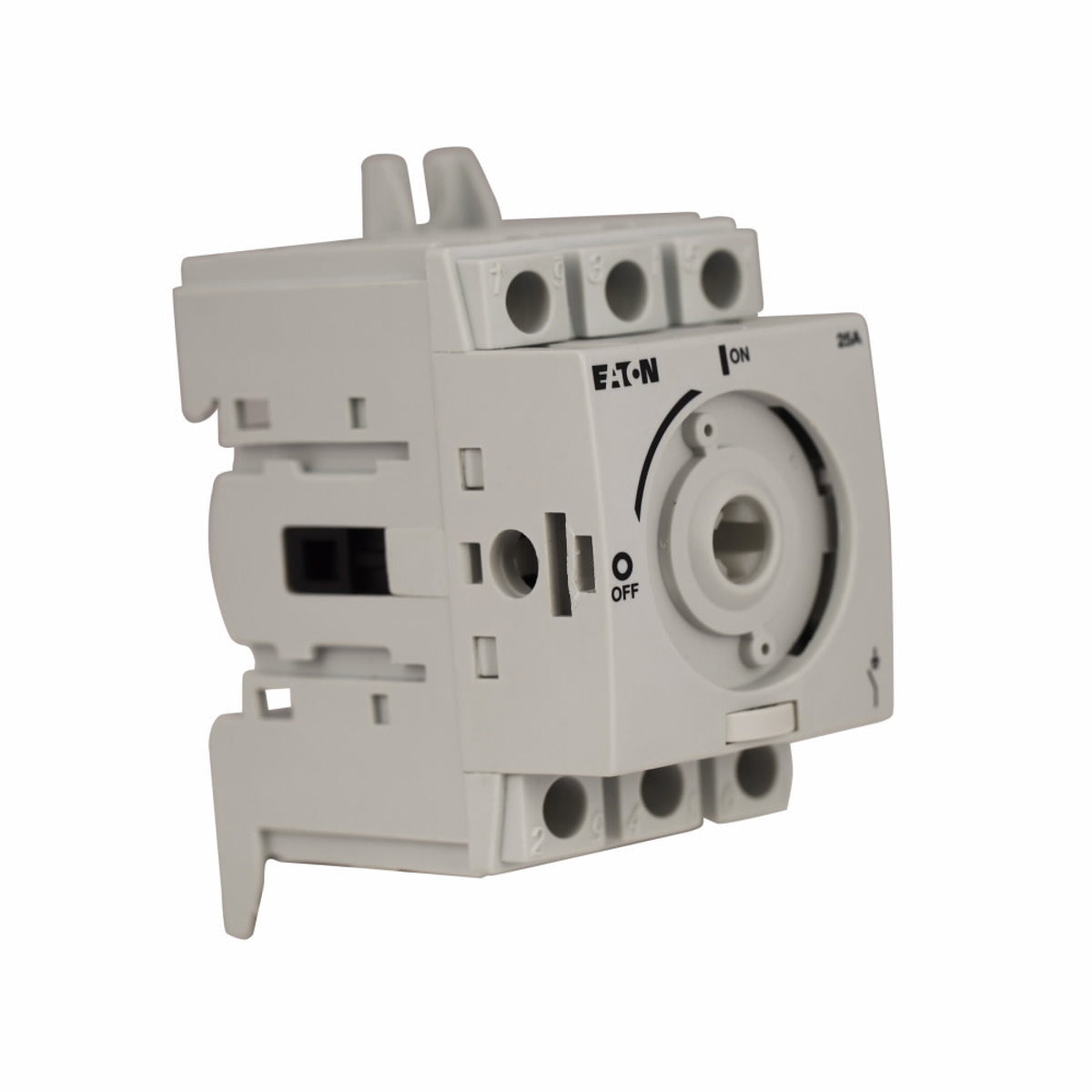

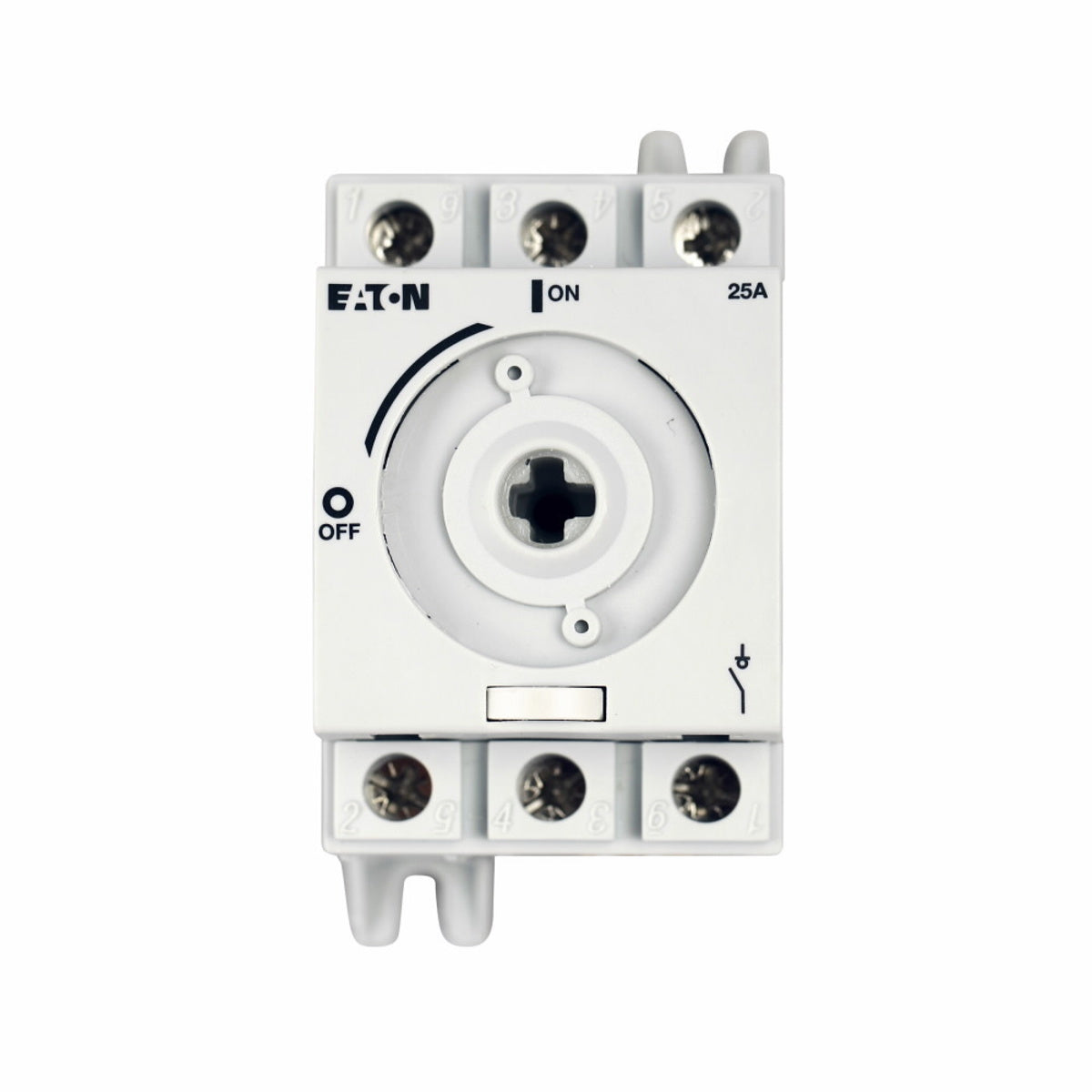

The Eaton R5A3040U is a non-fusible rotary disconnect switch designed for isolation and switching. It operates at 40 amperes and has a voltage rating of 600 volts. This switch is part of the R5 series and is suitable for a variety of industrial applications.
- UL 508 listed for safety and reliability
- Three-pole construction for effective disconnection
- Compact design suitable for various installations
Product Highlights
This rotary disconnect switch is ideal for use in control and power distribution applications. Its design allows for direct or external operation, making it versatile for different setups.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Catalog Number: R5A3040U
-
Voltage Rating: 600 VAC
-
Amperage Rating: 40 A
-
Number of Poles: 3
-
Application: Industrial facilities and power distribution
Technical Specifications
-
Actuator Type: Rotary Handle
-
Short Circuit Current Rating: 10/65 kA
-
Dimensions: 2.57 in L x 1.77 in W x 3.35 in H
-
Series: R5 Series
-
Standards/Approvals: UL 508, CSA Certified, IEC Rated
-
Country of Origin: China
