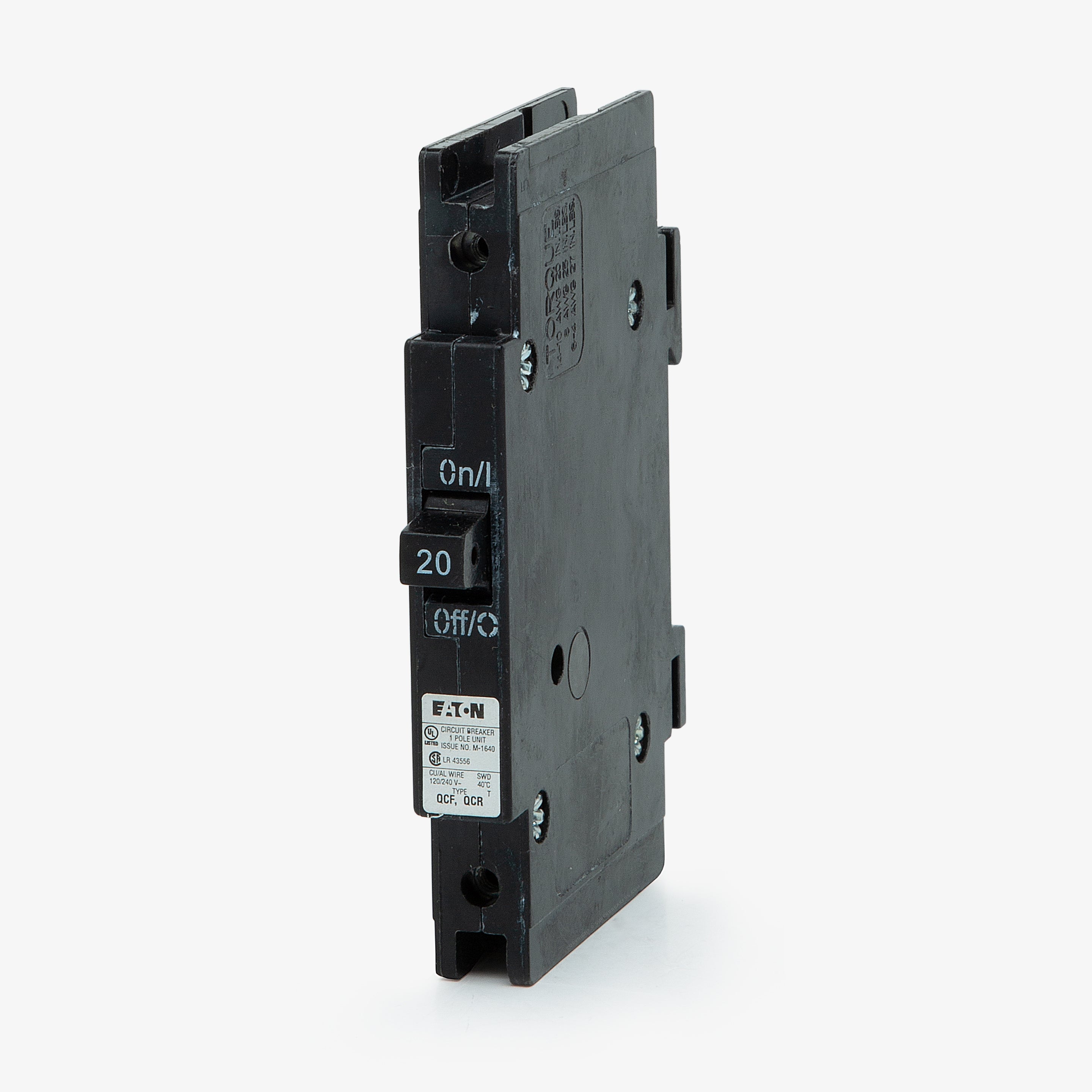

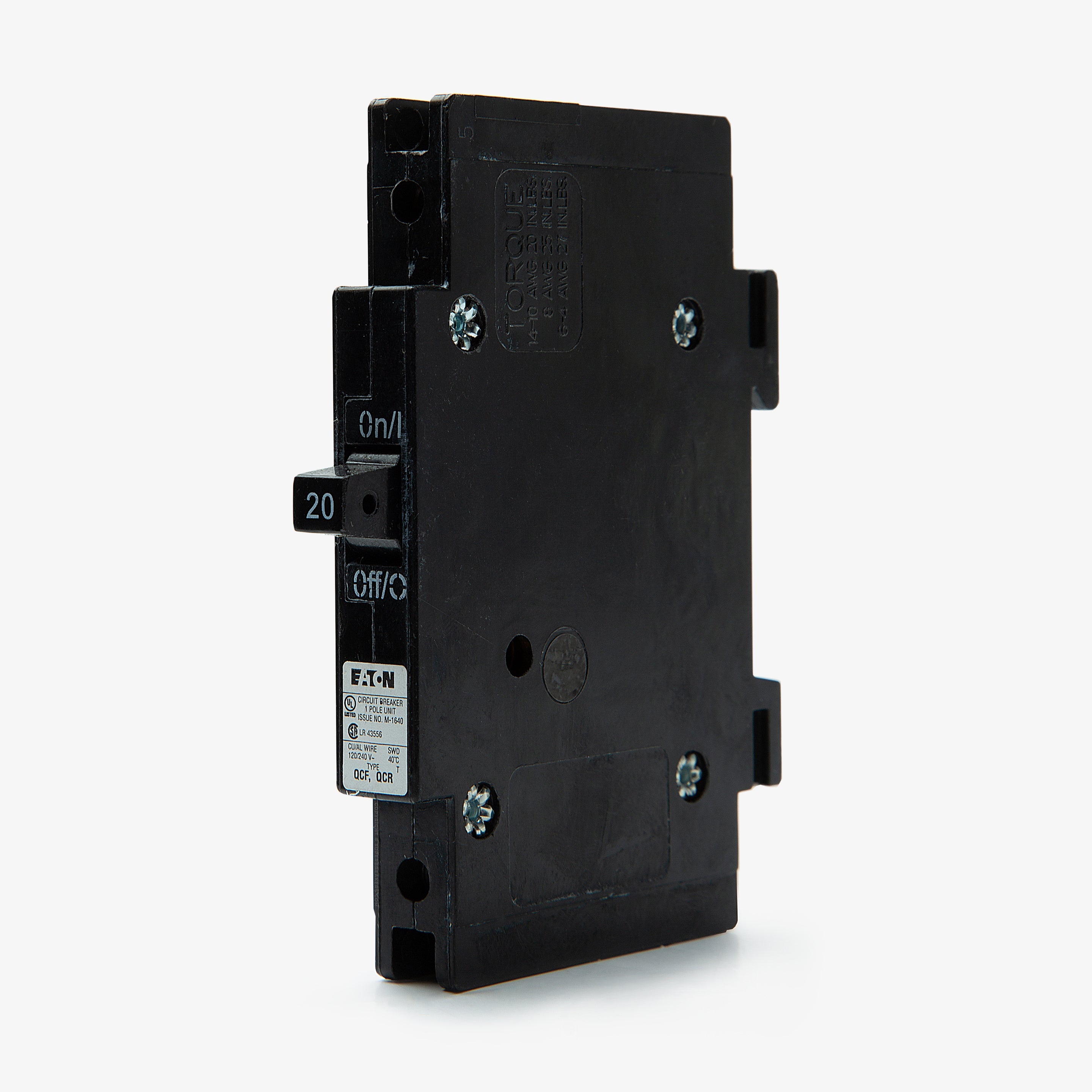

Eaton QCF1020 QCF thermal magnetic circuit breaker 20 A replacement MPL1020

Product Description

The Eaton QCF1020 is a Quicklag type QCF thermal-magnetic circuit breaker designed for industrial applications. This single-pole breaker provides reliable overload and short-circuit protection. It is suitable for Quicklag panelboards, OEM control panels, and standard enclosures. The unit features standard box lugs that accept 14-4 AWG wiring.

• Delivers consistent overload and short-circuit protection
• Front-mounting configuration
• Ideal fit for Quicklag panelboards, OEM control panels, and standard enclosures

Product Highlights

This thermal-magnetic breaker is built for industrial and marine applications. It has a 10kAIC rating and includes standard box lugs for versatile installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: QCF1020

Technical Specifications

• Product Name: Eaton QCF thermal magnetic circuit breaker
• Catalog Number: QCF1020
• UPC: 786679143063
• Product Length/Depth: 4.6 in
• Product Height: 1.2 in
• Product Width: 3 in
• Certifications: UL Listed CSA Certified
• Catalog Notes: Standard Breaker terminals are box type lugs. Switching duty rated for fluorescent lighting applications.
• Product Type: Thermal magnetic circuit breakers
• Circuit breaker type: QCF
• Connection: Cable-in/cable-out
• Mounting Method: Front
• Number of poles: Single-pole
• Type: Industrial circuit breaker
• Amperage Rating: 20 A
• Interrupt rating: 10 kAIC
• Trip Type: T268
• Voltage rating: 120/240 V
• Options: Non-interchangeable
• Brand: Eaton
• Current Rating: 20 Amps
• Mounting Type: Plug-In Mount
• Part Number: QCF1020
• Manufacturer: Eaton Cutler-Hammer
• Family: Quicklag
• Pole: 1
• Amp: 20
• Phase: 1
• Category: Molded Case / 1-Pole
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 10kA@120V
• Dimensions (HxWxD): 1.2" x 3" x 4.6"
• Series: QCF
• Amperage: 20A
• Voltage: 125V
• AIC Rating: 10kA @ 120/240VAC
• Mounting Style: Panel Mount
• Terminal Type: Box Lugs
• For Use With: Eaton Quicklag Panelboards, OEM Control Panels, Enclosures
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 14-4 AWG (Al/Cu)
• Max Wire: 4 AWG
• Min Wire: 14 AWG
• Available Options: Padlock Attachment, Shunt Trip
• Accessories: Line and Load Lugs Included
• Standards: CSA C22.2 No. 5, UL 489
• Approval: CSA, HACR, RoHS, SWD, UL
• Temp Rating: 40C
• Construction Features: HACR Rated, SWD Rated, HID Rated, Cable-in/Cable-out, Front Mounting
• MPN: QCF1020
• GTIN: 0786679143063
• eBay Product ID (ePID): 1912356753
• Number of Throws: 1
• Suitable For: Interior
• Tripping Characteristics: Type A
• Current Type: AC
• Color: Black
• Number of Spaces: 1
• Operation Method: On/Off
• Interruption Type: Thermal Circuit Breaker
• Plug Type: A
• Number in Pack: 1
• Mounting Style_new: Screw, DIN Rail, Cable
• Number of Positions: 1
• Maximum Amperage: 20 A
• Number of Phases: 1
• Material: Aluminum, Nylon
• Electrical Connection: Screw Terminal
• Main Breaker: Main Breaker
• Break Time: Instantaneous
• Model: QCF1020
• Product Series: QCF
• Family Series: Eaton Circuit Breakers, QCF Series
• Max Voltage: 240 VAC
• UL Standard: 489
• Approvals: CSA, UL
