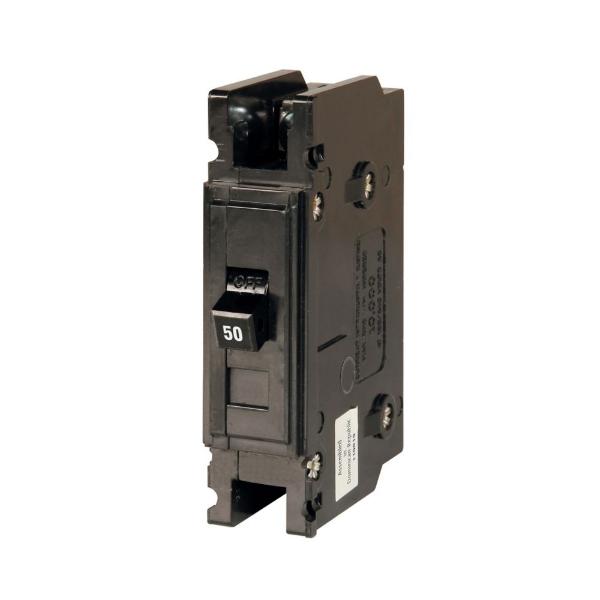

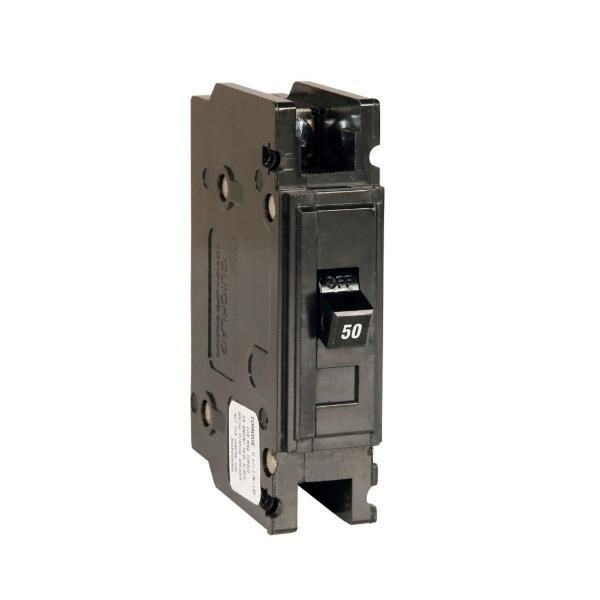

Eaton QC1050T qc thermal magnetic circuit breaker 50 A

Product Description

The Eaton QC1050T is an industrial thermal-magnetic circuit breaker. Rated at 50 A with a 10 kAIC, it supports 120/240 V and features cable-in/cable-out connections. Designed as a single-pole breaker, it uses ring or spade lug terminals and is non-interchangeable. Suitable for industrial applications and interior use.

• Ring or Spade Lug Terminals
• Cable-in/cable-out connection
• 10,000A Interrupting Capacity

Product Highlights

Thermal magnetic circuit breaker with ring or spade lug terminals and cable-in/cable-out connection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: QC1050T
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton QC thermal magnetic circuit breaker
• Catalog Number: QC1050T
• UPC: 786679831908
• Product Length/Depth: 3.7 in
• Product Height: 4.8 in
• Product Width: 1.1 in
• Certifications: UL Listed CSA Certified
• Product Type: Thermal magnetic circuit breakers
• Circuit breaker type: QC
• Connection: Cable-in/cable-out
• Number of poles: Single-pole
• Terminals: Ring or spade lug
• Type: Industrial circuit breaker
• Amperage Rating: 50 A
• Interrupt rating: 10 kAIC
• Trip Type: T268
• Voltage rating: 120/240 V
• Options: Non-interchangeable
• Special features: Ring or Spade Lug Terminals
• Brand: Eaton
• MPN: QC1050T
• Manufacturer: Eaton
• Number of Throws: 1
• Application: Industrial
• Operation Method: On/Off
• Material: Nylon
• Suitable For: Interior
• Model: QC1050T
• Phase: 1
• UNSPSC: 39121603
• Wire Size: 14 to 4
• Mounting Type: DIN Rail
• Frequency Rating: 60
• Temperature Rating: 40
• Product Series: QC
• Family Series: Eaton Circuit Breakers, QC Series
• Description: CIRCUIT BREAKER
• Poles: 1
• Current Rating: 50 A
• Max Voltage: 240 VAC
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Mounting: Panel
• Terminal Type: Bolt-On / Box Lug
• Shunt Trip: No
• UL Standard: 489
• Approvals: CSA, UL
• Net Weight: 0.35 lbs
• Gross Weight: 0.35 lbs
• Item: Circuit Breaker
