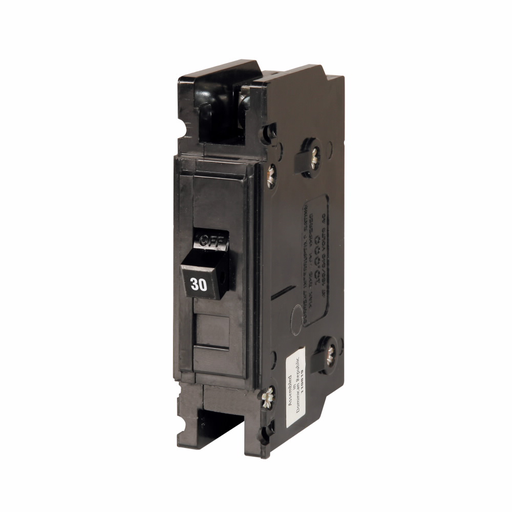

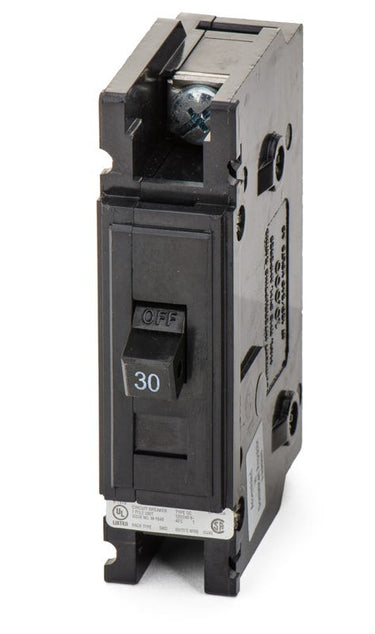

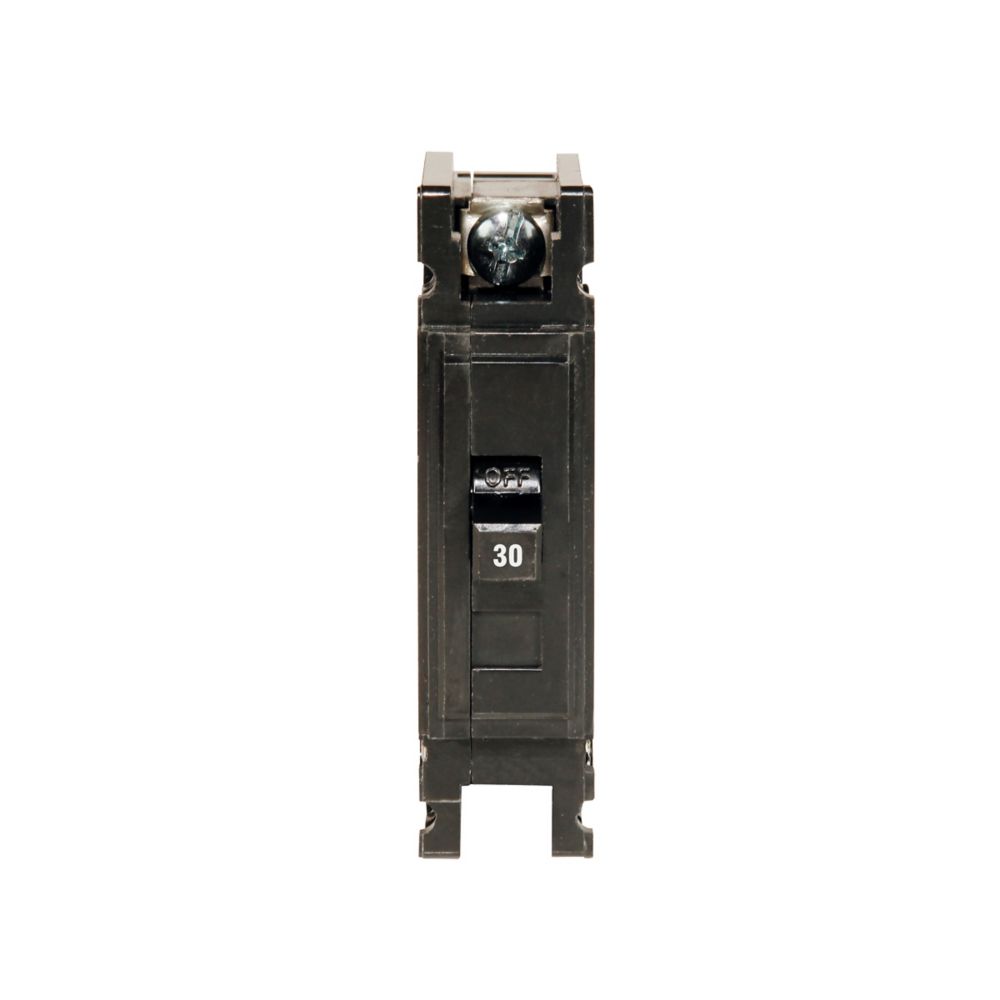

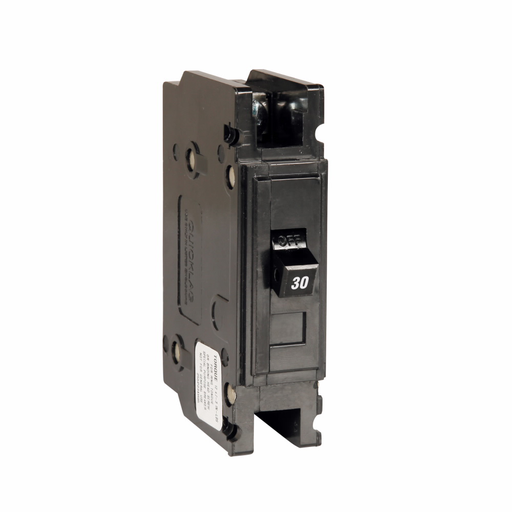

Eaton QC1030 Quicklag Industrial Thermal Magnetic Circuit Breaker 30 Amp

Product Description

The Eaton QC1030 Quicklag Type QC industrial thermal-magnetic circuit breaker is rated at 30A and 10 kAIC. This single-pole circuit breaker is designed for 120/240 V applications and features a non-interchangeable design. It is suitable for industrial applications and provides reliable thermal-magnetic protection.

• Industrial circuit breaker
• Thermal-magnetic trip type
• Single-pole configuration

Product Highlights

The Eaton QC1030 circuit breaker is ideal for commercial and industrial applications, offering thermal-magnetic protection and easy installation in control panels and enclosures.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: QC1030
• Country of Origin: United States

Technical Specifications

• GTiN: 00786679308943
• Type: Circuit Breaker,Industrial
• Brand: Eaton / Cutler-Hammer
• Height: 4.8 Inch
• Length: 3.7 Inch
• Voltage: 120/240VAC, 24-48VDC, 62.5VDC
• Amperage: 30 Amp
• Trip Type: Thermal Magnetic
• Product UPC: 78667930894
• 12-Digit UPC: 786679308943
• Connection Type: Cable-in/Cable-out
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Circuit Breaker Type: QC
• Standard: CSA,UL
• Series: QC
• Part Number: QC1030
• Poles: 1
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC, 5kA @ 24-48VDC, 3.8kA @ 62.5VDC
• Mounting Style: Panel Mount
• Terminal Type: Box Lugs
• For Use With: Control Panels, Enclosures, DIN Rail (with adapter)
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 14-10 AWG (Al/Cu)
• Max Wire: 10 AWG
• Min Wire: 14 AWG
• Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Handle Tie
• Accessories: Line and Load Lugs Included
• Standards: CSA C22.2 No. 5, HACR, UL 489
• Approval: CSA, UL
• Temp Rating: 40C
• Construction Features: HACR Rated, Non-Interchangeable Trip, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism
• Frequency Rating: 60 Hz
• Mounting Type: Panel
• Temperature Rating: 40 deg C
• Product Length/Depth: 3.7 in
• Product Height: 4.8 in
• Product Width: 1.2 in
• Product Weight: 0.35 lb
• Certifications: UL Listed CSA Certified
• Product Type: Thermal magnetic circuit breakers
• Amperage Rating: 30 A
• Voltage Rating: 120/240 V
• Options: Non-interchangeable
