Product Description

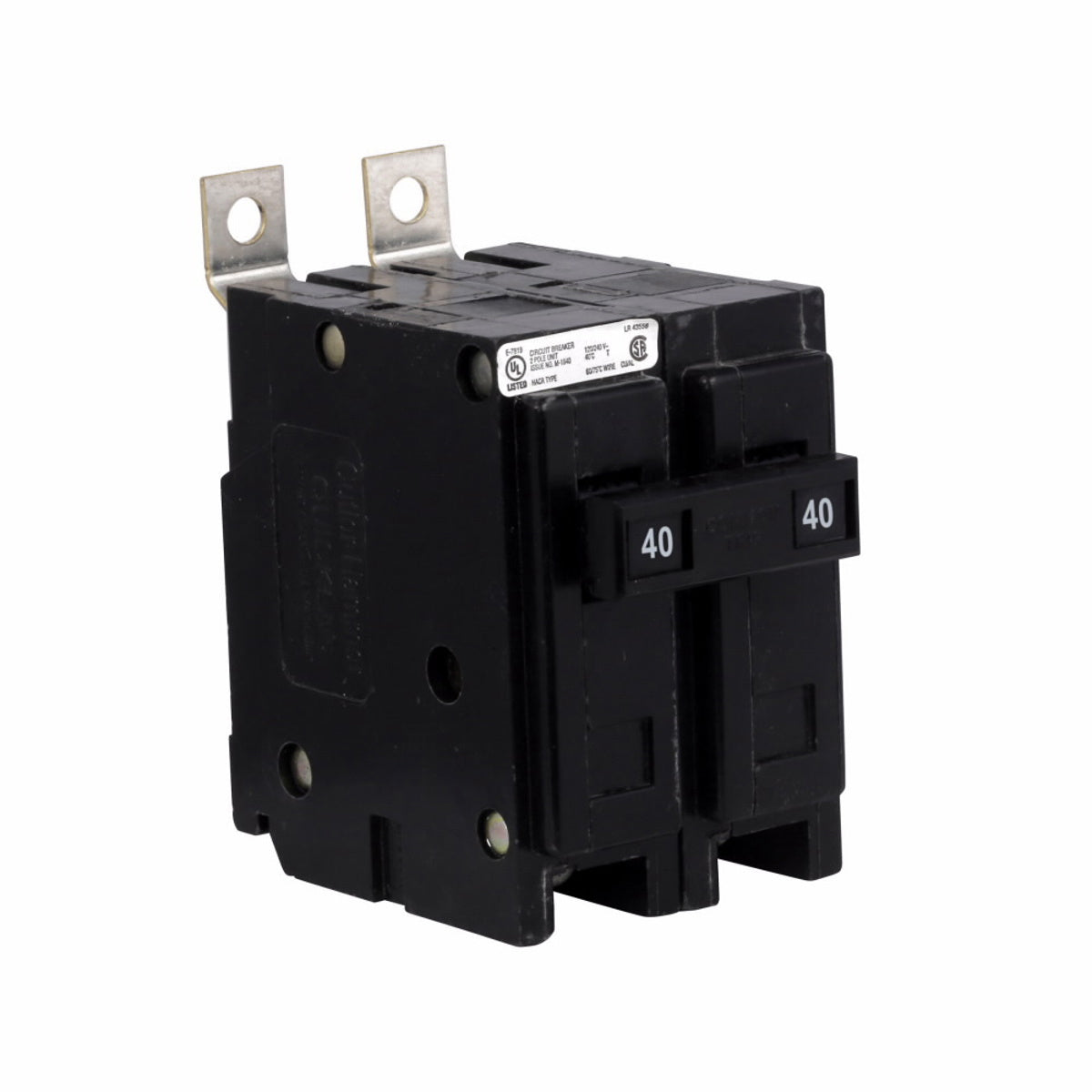

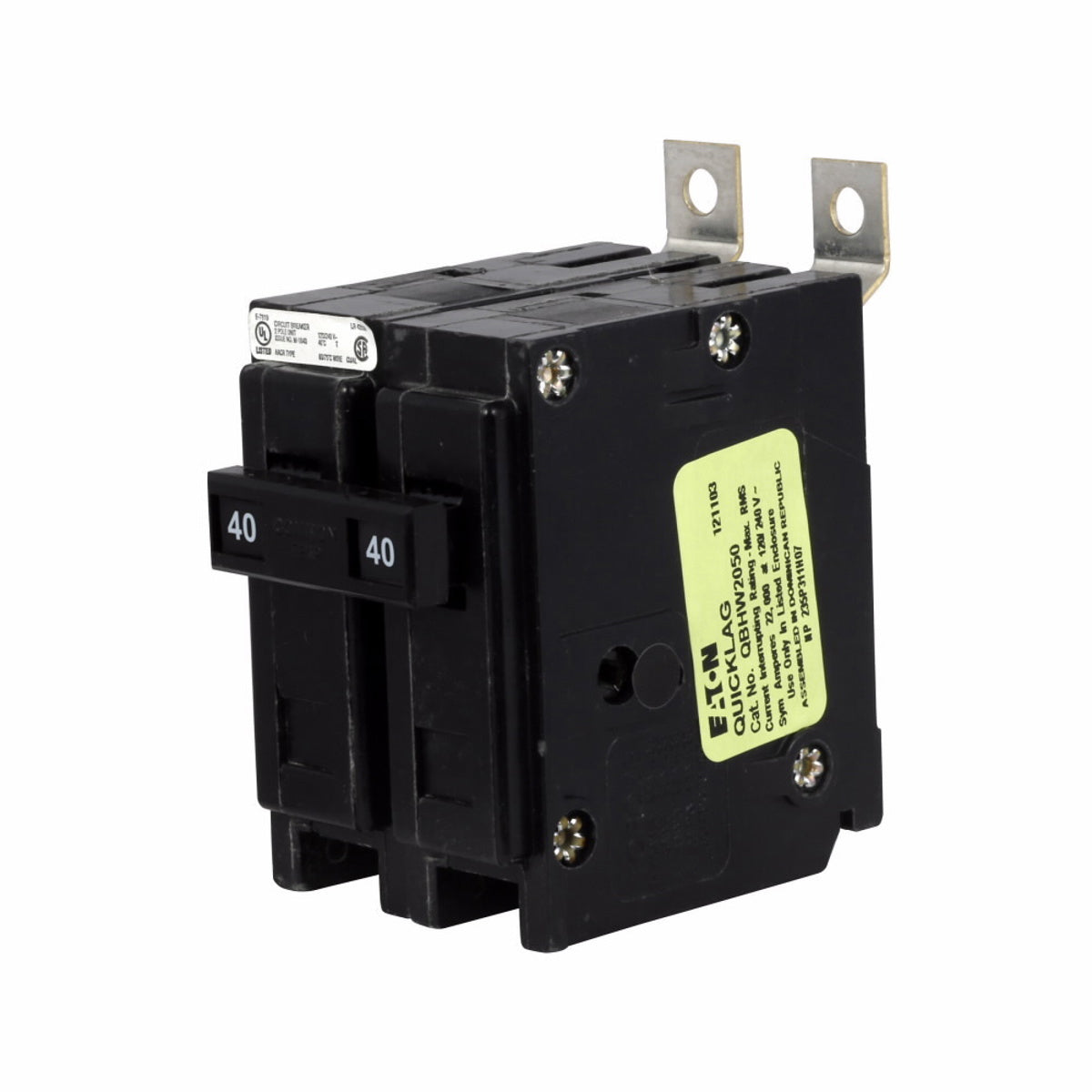

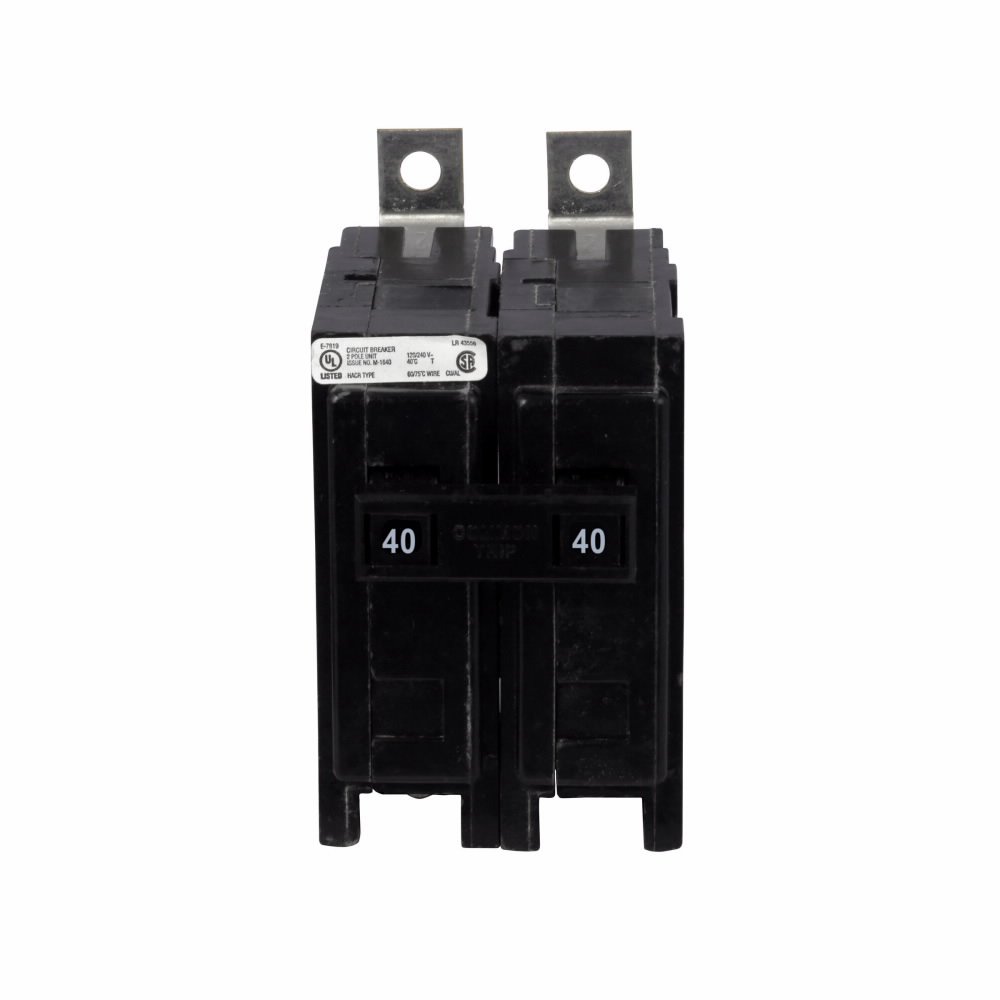

The Eaton QBHW2040 Quicklag Industrial Thermal Magnetic Circuit Breaker provides reliable circuit protection for varied applications. This breaker is a two-pole design, rated for forty amps and with an interrupt rating of twenty-two kAIC. It operates at voltage levels of one hundred and twenty to two hundred and forty volts, making it suitable for both residential and light commercial use.
- Two-pole circuit breaker with a rating of forty amps.
- Designed for voltage ranges of one hundred and twenty to two hundred and forty volts.
- Compatible with bolt-on mounting for easy installation.
Product Highlights
This circuit breaker is designed for thermal magnetic applications, offering non-interchangeable trip protection.
Product Information
Standard Information
-
Catalog Number: QBHW2040
-
Manufacturer: Eaton
Technical Specifications
-
Amperage Rating: 40 A
-
Voltage Rating: 120/240 VAC
-
Number of Poles: 2
-
Mounting Type: Bolt-On
-
Interrupt Rating: 22 kAIC
-
Trip Type: Non-Interchangeable
-
Dimensions: 3.9 x 2.2 x 4.8 in
-
Country of Origin: Dominican Republic
-
Standard: UL Listed, CSA Certified
