Product Description

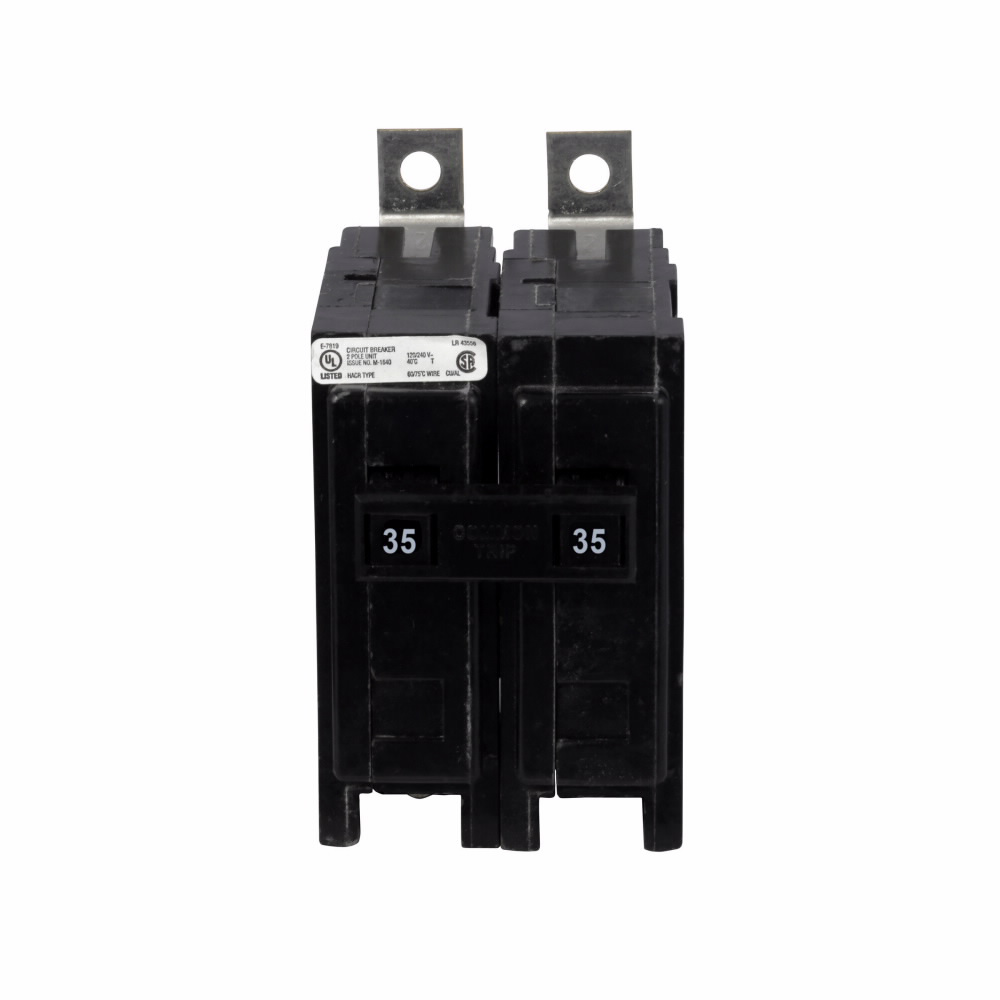

Eaton offers the QBHW2035, a two-pole thermal-magnetic circuit breaker with a rating of thirty-five amps. The device operates at a voltage of one hundred and twenty to two hundred forty volts and has an interrupt rating of twenty-two kiloamperes. This circuit breaker is designed for bolt-on mounting and is suitable for various applications including panelboards.
- Type BR thermal-magnetic circuit breaker
- UL and CSA certified for safety and reliability
- Accommodates wire sizes from fourteen to four AWG
Product Highlights
The QBHW2035 is ideal for use in applications involving renewable energy and conventional power generation, data centers, and marine vessels.
Product Information
Standard Information
-
Brand: Eaton
-
Manufacturer Part Number: QBHW2035
Technical Specifications
-
Amperage Rating: 35 A
-
Voltage Rating: 120/240 VAC
-
Number of Poles: 2
-
Interrupt Rating: 22 kA
-
Trip Type: Non-Interchangeable Thermal Magnetic
-
Mounting Type: Bolt-On
-
Temperature Rating: 40 deg C
-
Dimensions: 3.9 in L x 2.2 in W x 4.8 in H
-
Standards/Approvals: CSA, UL certified
