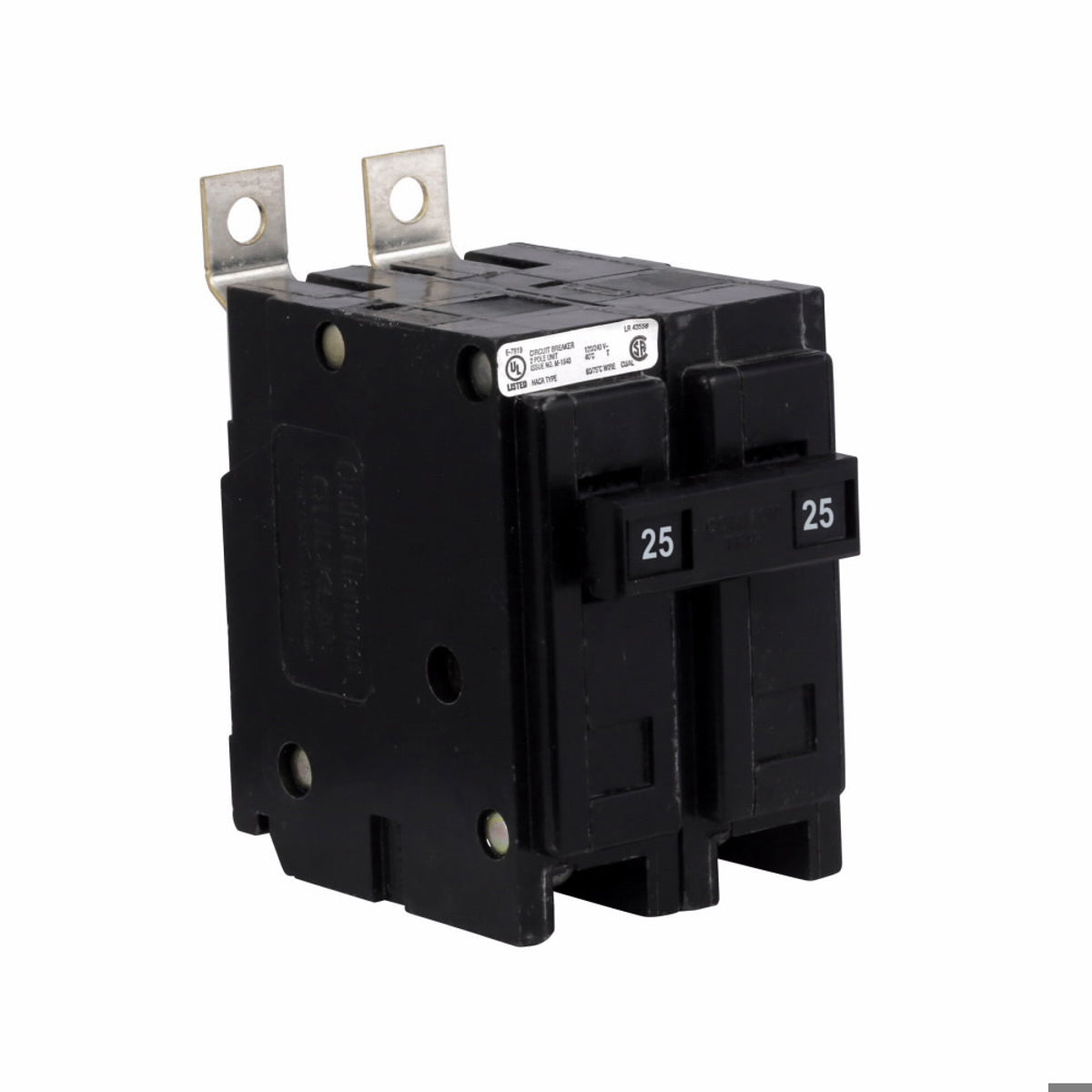

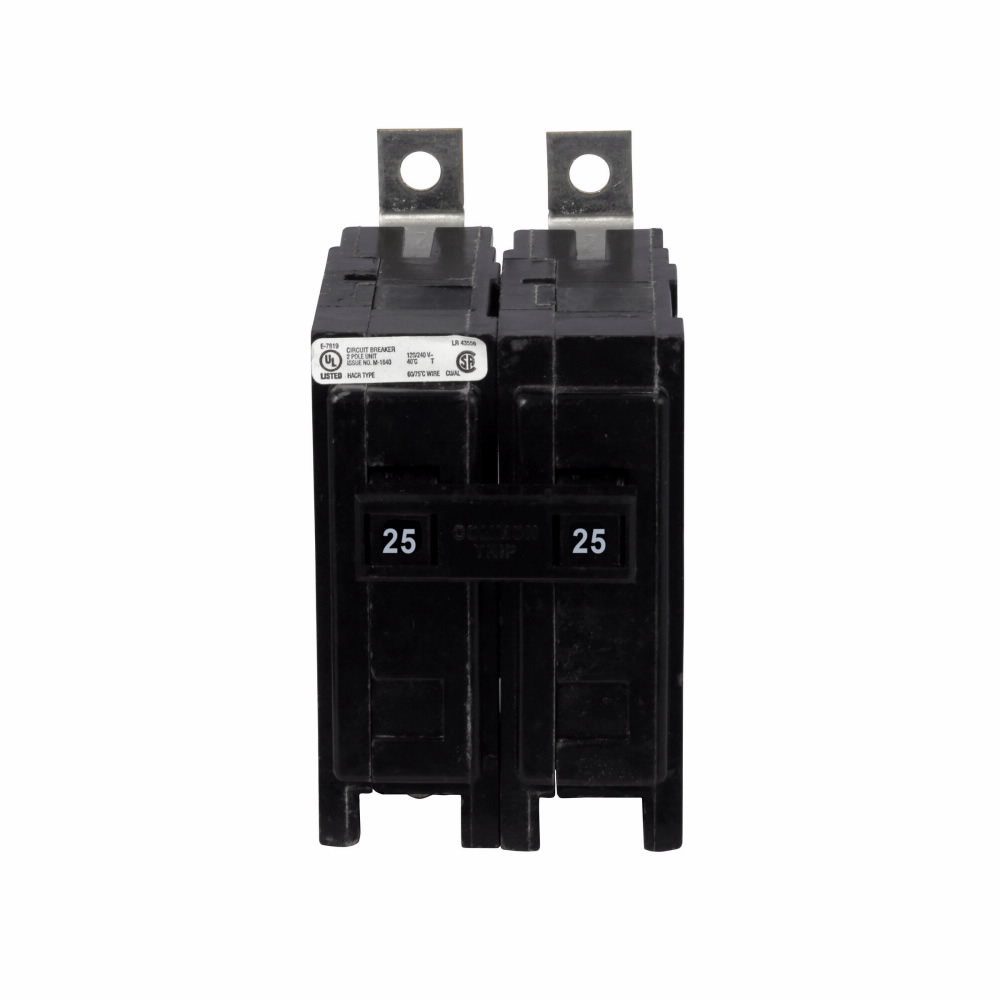

Eaton QBHW2025 Miniature Circuit Breaker 25A 240V 22KA

Product Description

The Eaton QBHW2025 is a miniature circuit breaker designed for load centers and fuse boxes. It is rated for twenty-five amps and can handle voltages up to two hundred forty volts. This two-pole breaker has a short circuit interrupt rating of twenty-two kAIC. The non-interchangeable thermal-magnetic trip mechanism ensures reliability and safety in various applications.

• Two-pole construction
• Interrupt rating of twenty-two kAIC
• Voltage rating of one hundred twenty to two hundred forty volts

Product Highlights

This circuit breaker provides robust protection and is suitable for various industrial and commercial applications.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: QBHW2025

Technical Specifications

• Amperage Rating: 25 Amp
• Voltage Rating: 120/240 Volt
• Interrupt Rating: 22 kAIC
• Mounting Type: Bolt-On
• Number of Poles: 2
• Trip Type: Non-Interchangeable
• Width: 2.3 inches
• Height: 4.7 inches
• Length: 3.8 inches
