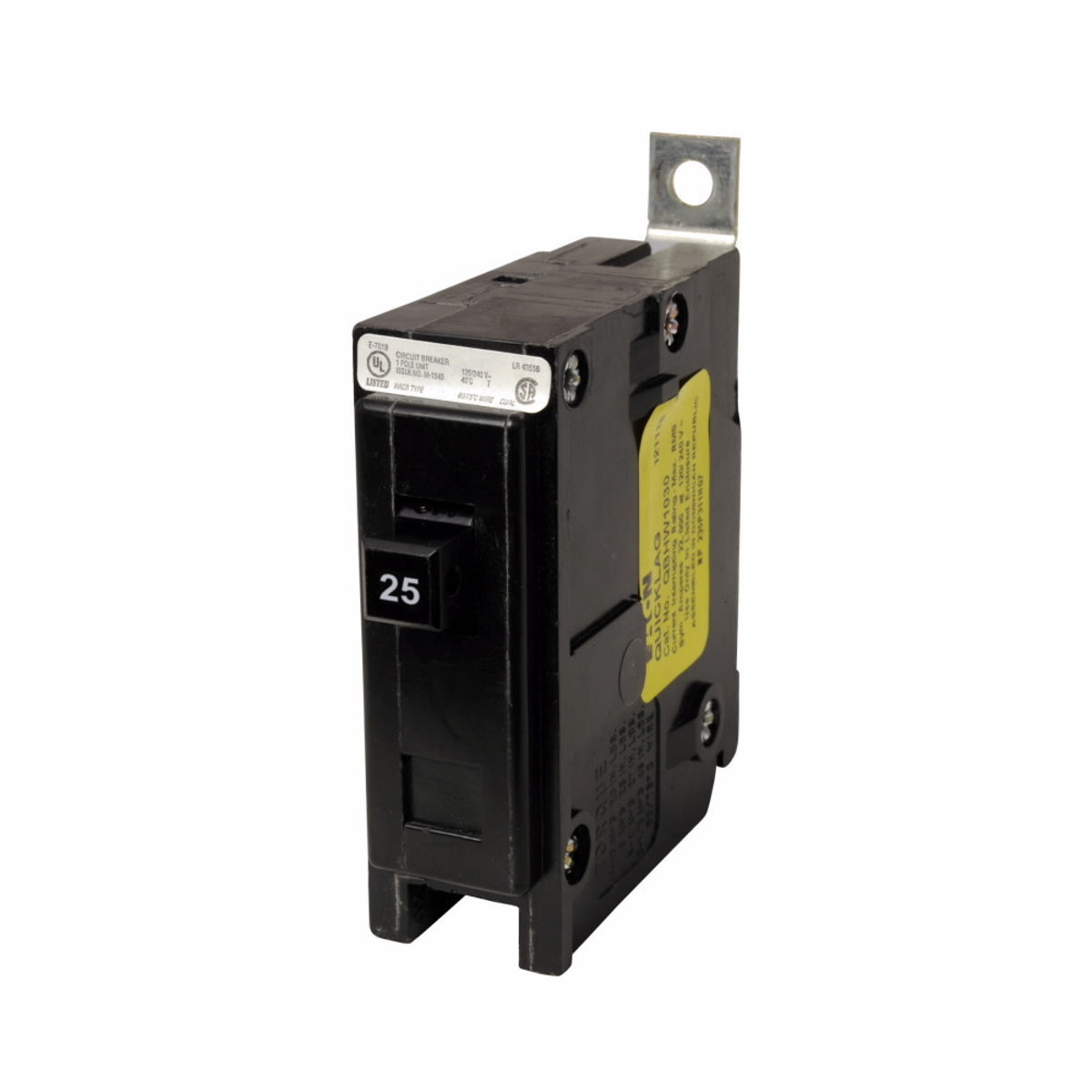

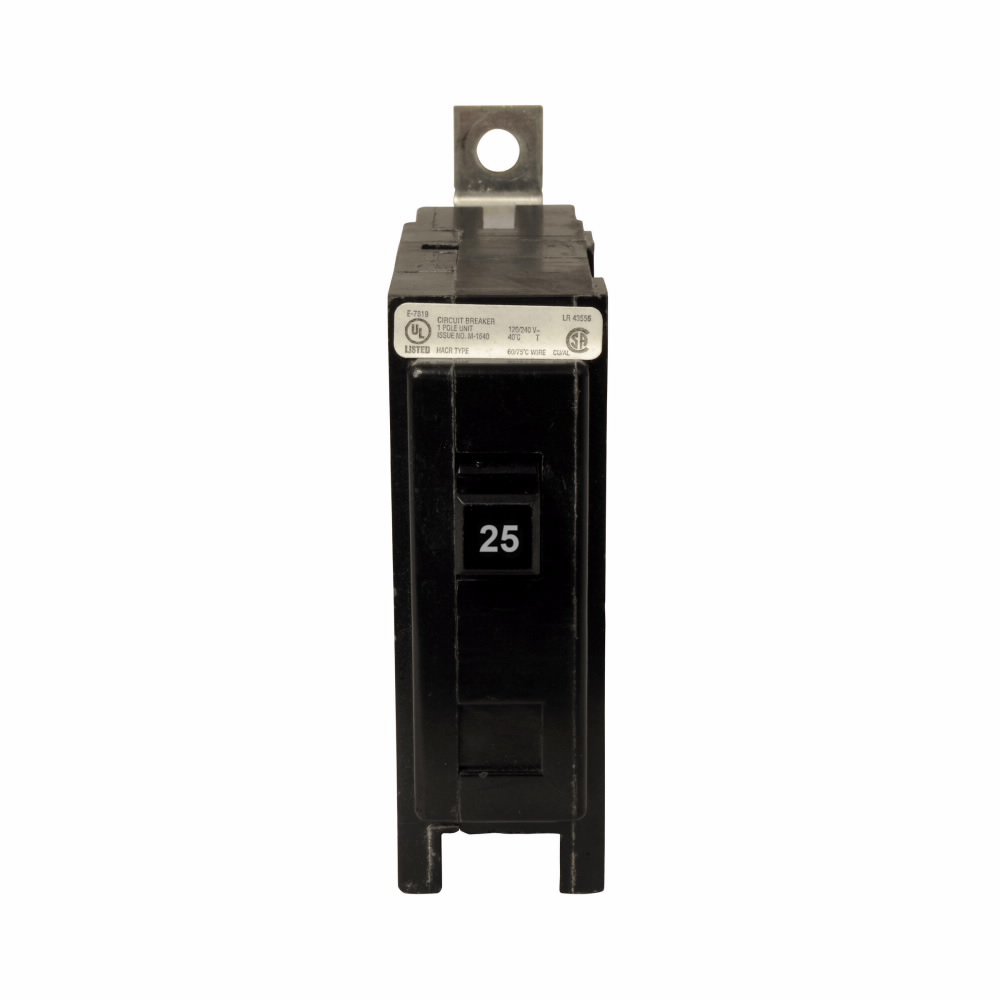

Eaton QBHW1025 Quicklag Industrial Thermal Magnetic Circuit Breaker 25 A 120/240 VAC

Product Description

The Eaton QBHW1025 is a miniature thermal magnetic circuit breaker designed for industrial applications. This circuit breaker delivers reliable protection in a compact format. It operates at a voltage of one hundred twenty to two hundred forty volts and provides a continuous current rating of twenty-five amps.

• Type: Quicklag Industrial Thermal-magnetic Circuit Breaker
• Interrupt Rating: twenty-two kAIC
• Number of Poles: one

Product Highlights

This circuit breaker is suitable for various applications including conventional and renewable energy generation, datacenters, and industrial setups. It features easy installation with a bolted mounting option.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 25 A
• Trip Type: Non-Interchangeable Thermal Magnetic
• Dimensions: 3.6 in L x 1.2 in W x 4.8 in H
• Mounting Type: Bolt-On
• Country of Origin: Dominican Republic
• Standard: CSA Certified, UL Listed
• UPC: 786679392102
• GTIN: 00786679392102
