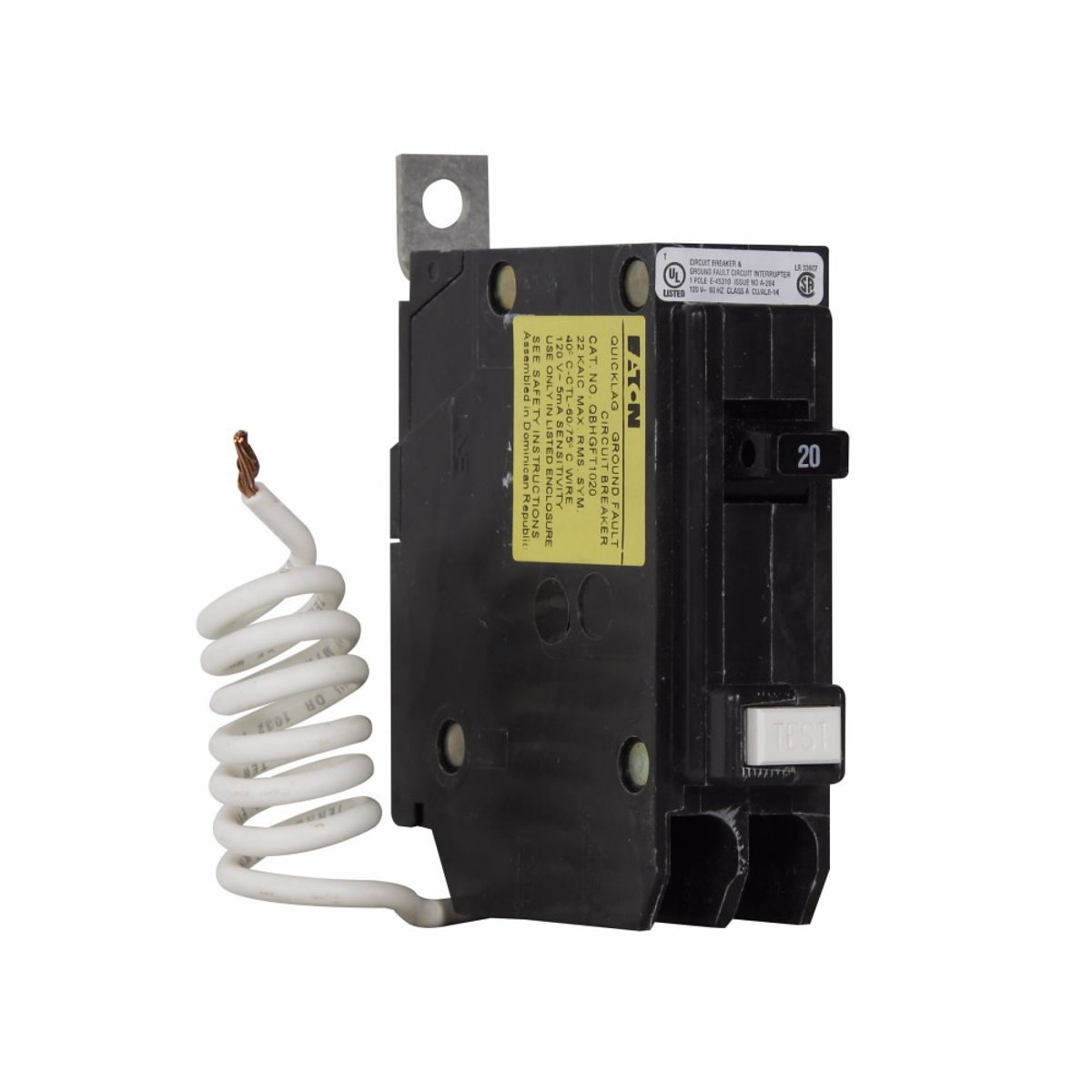

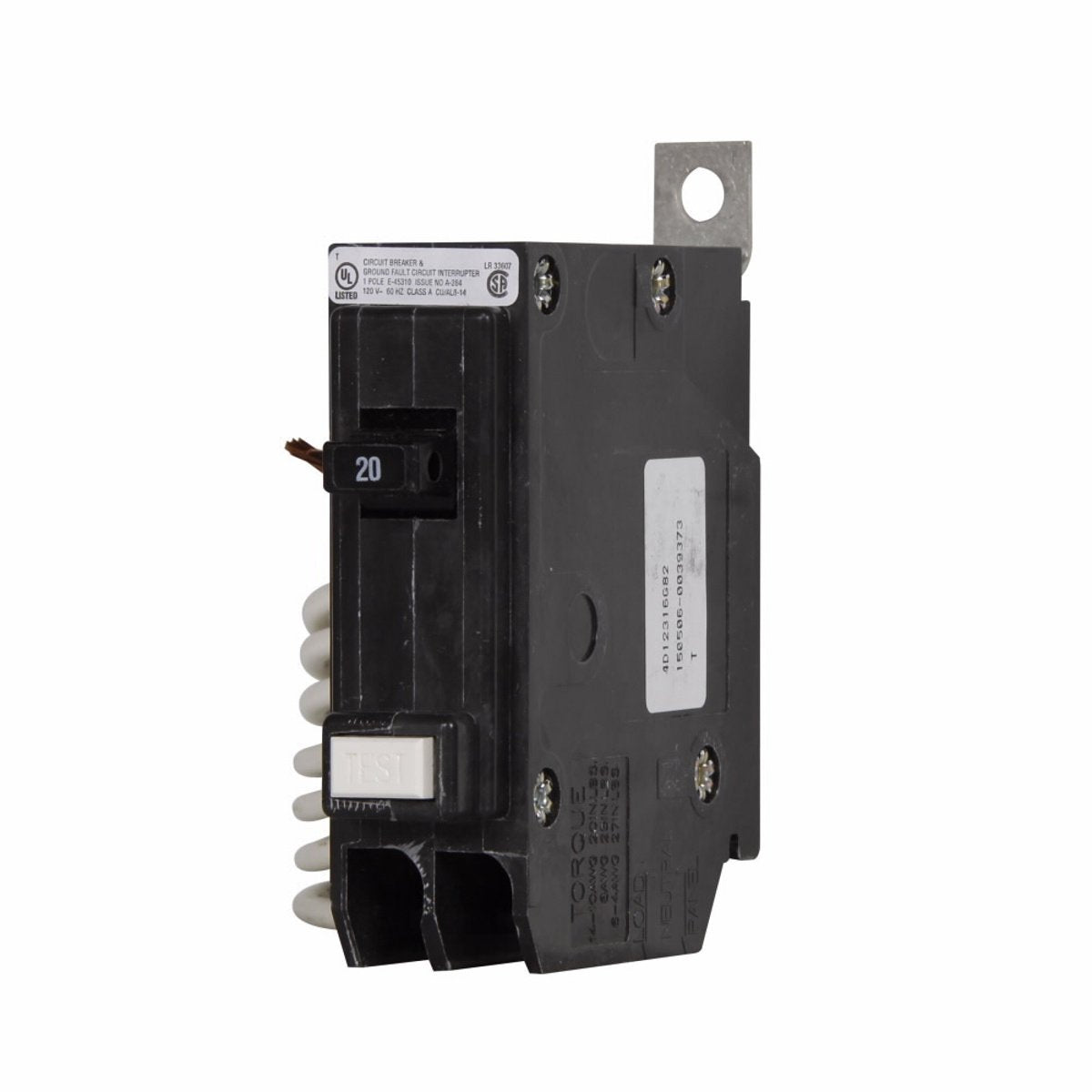

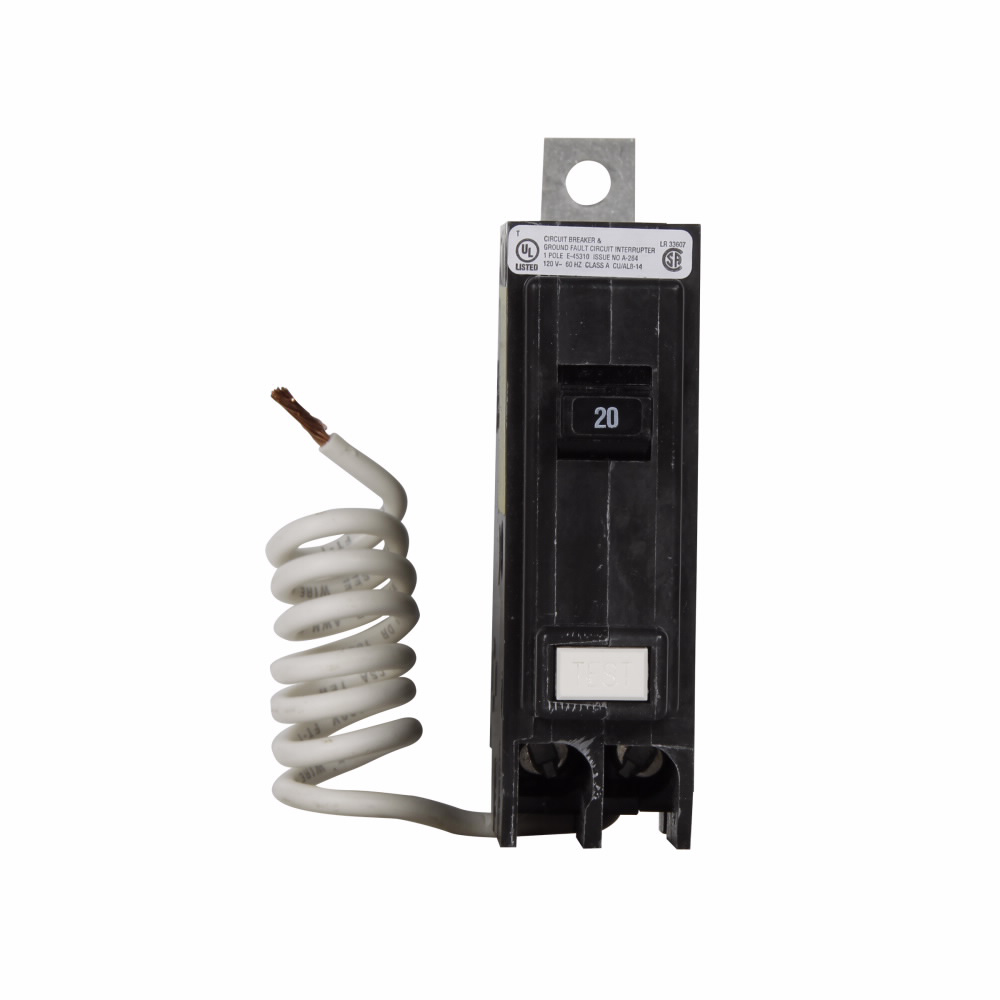

Eaton QBH1020GF ETN QBH1020GF Bolt-on GFCI, 5mA, 1, 22KAIC

Product Description

The Eaton QBH1020GF is a bolt-on ground fault circuit breaker designed for residential and commercial applications. It operates at a voltage of 120/240 volts and provides 20 amps of current. This circuit breaker features a 5 milliamp trip sensitivity and an interrupt rating of 22 kAIC.

• 20 Amp, 120/240 Volt operation
• Single-pole configuration with bolt-on mounting
• Non-interchangeable trip type for enhanced safety

Product Highlights

The QBH1020GF is ideal for use in applications such as renewable energy generation and datacenters. This breaker meets UL 489 standards, ensuring reliability in performance.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: QBH1020GF

Technical Specifications

• Voltage Rating: 120/240 V
• Amperage Rating: 20 A
• Number of Poles: 1
• Trip Sensitivity: 5 mA
• Interrupt Rating: 22 kAIC
• Connection Type: Bolt-On
• Wire Size Compatibility: 14-4 AWG
• Height: 1.3 inches
• Length: 3.5 inches
