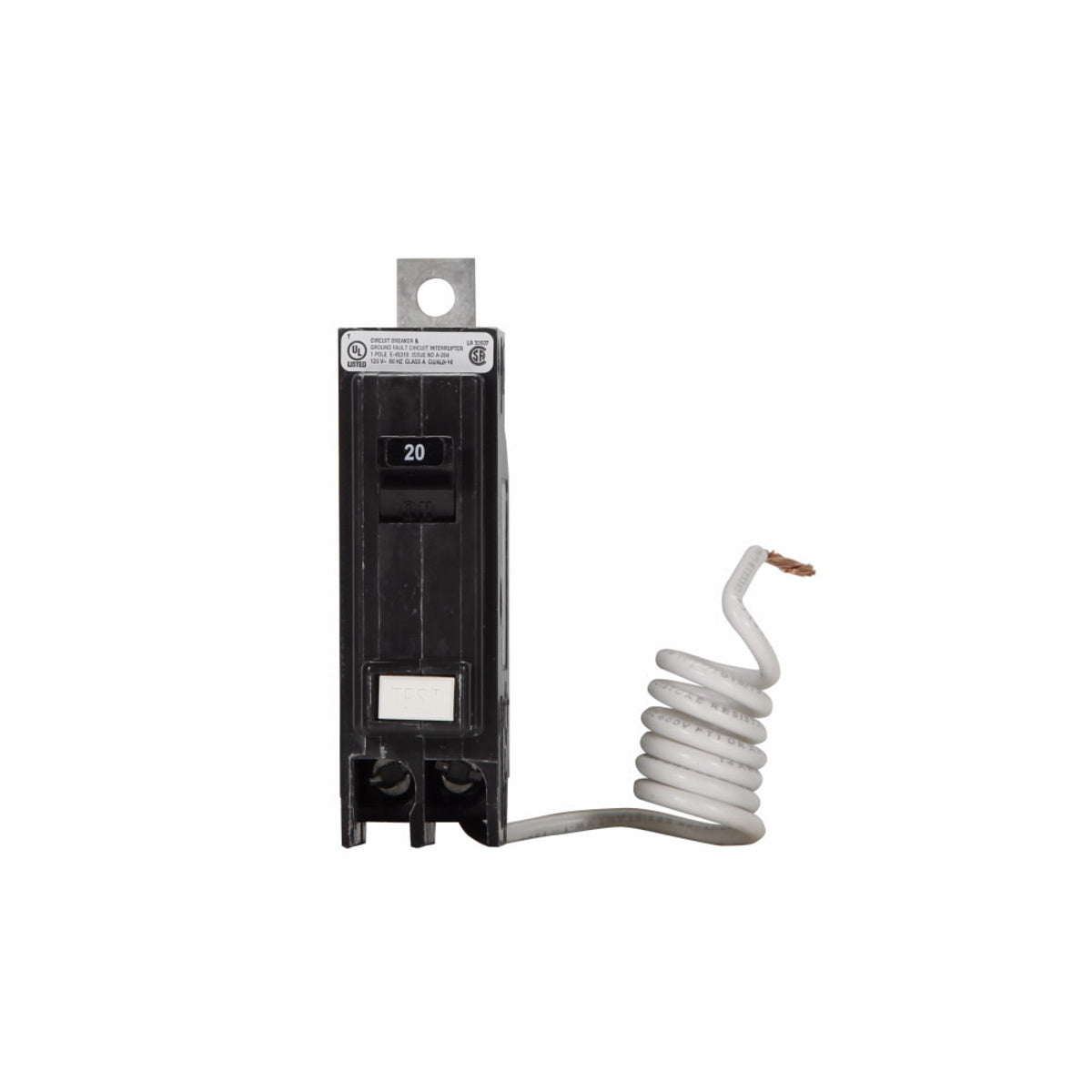

Eaton QBGFT1020 GFCI Circuit Breaker 120/240VAC 20A 10 kA Interrupt 1 Pole Non-Interchangeable

Product Description

The Eaton QBGFT1020 is a ground-fault circuit interrupter (GFCI) circuit breaker designed for use with electrical systems operating at 120/240 volts. This breaker has a current rating of twenty amps and operates at a frequency of 50/60 Hertz. It features a trip mechanism that is non-interchangeable, providing reliable protection against electrical faults.

• Has a trip sensitivity of 5 mA
• Features an extended tang line terminal connection
• Bolt-on mounting type

Product Highlights

The Eaton QuickLag GFCI Circuit Breaker is suitable for marine vessels, datacenters, and renewable energy applications.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: QBGFT1020

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 A
• Number of Poles: 1
• Interrupt Rating: 10 kA
• Trip Type: Non-Interchangeable
• Temperature Rating: 40 deg C
• Connection Type: Extended Tang Line/Box Lug
• Wire Size: 14 to 4 AWG
• Application: Marine Vessels, Renewable Energy, Datacenters
• Mounting Type: Bolt-On
• Standards/Approvals: CSA Certified, UL File No. 489
