Eaton QB1020EP ETN QB1020EP BOLT-ON GFEP 30MA 1

Product Description

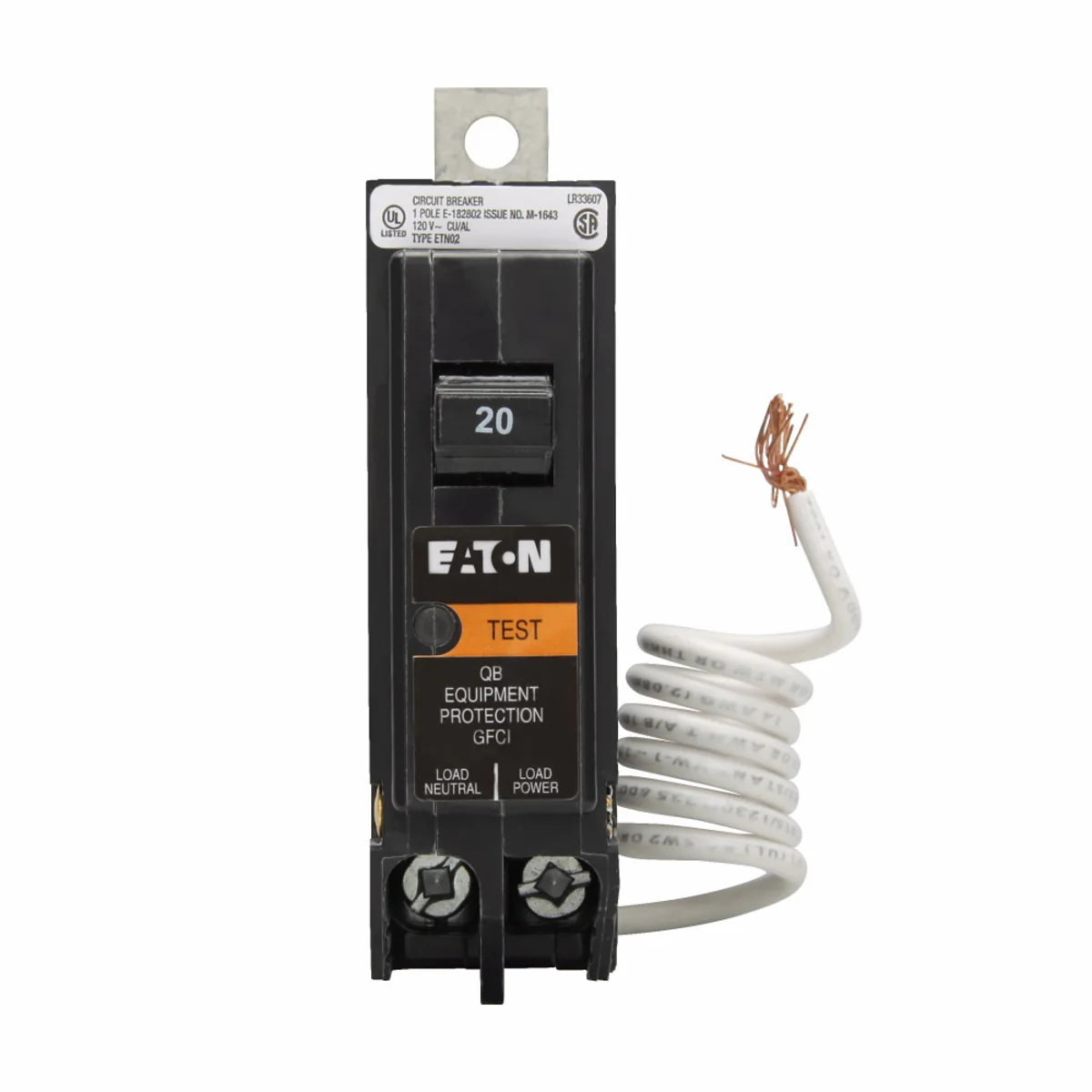

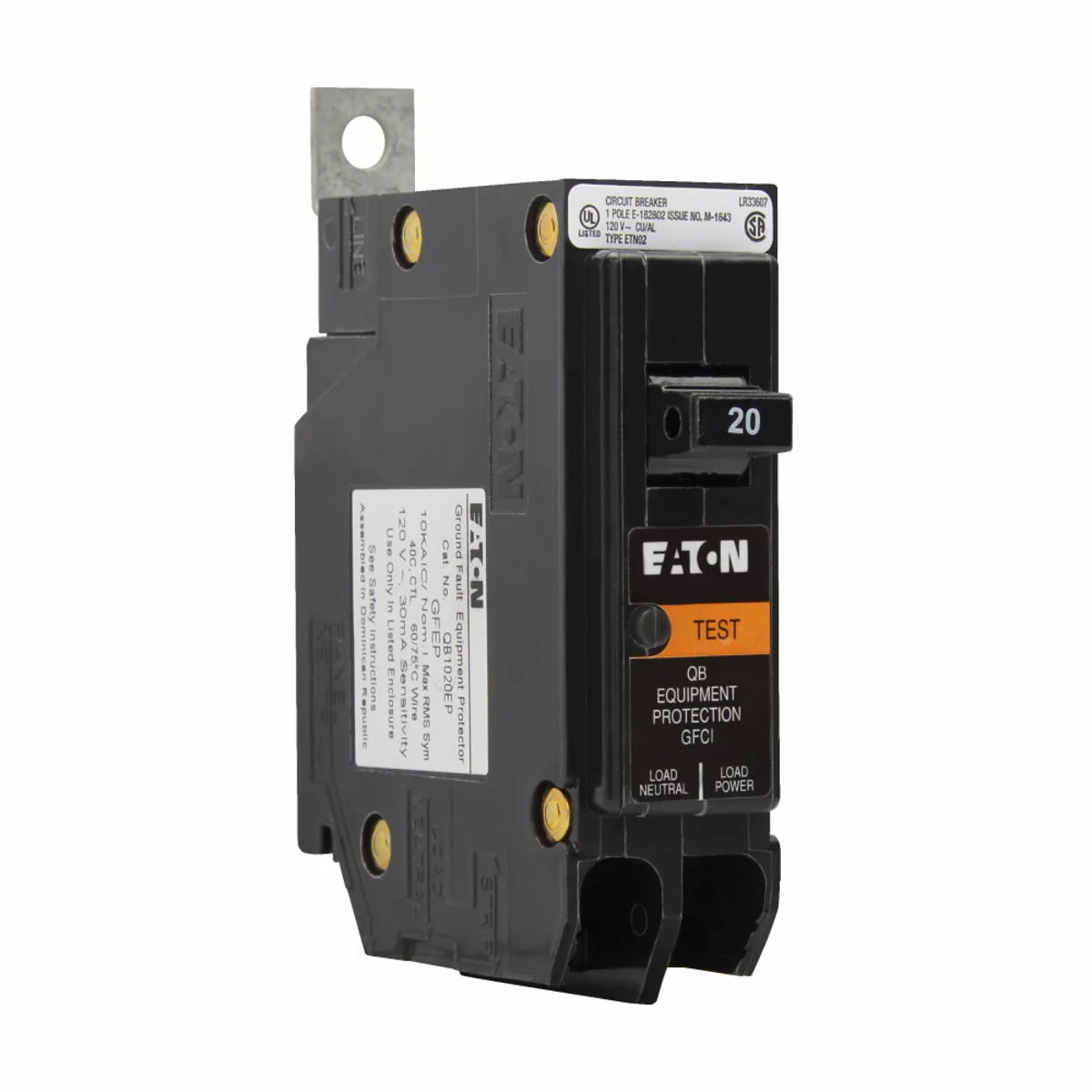

Eaton QB1020EP is a bolt-on ground fault circuit breaker designed for equipment protection. This circuit breaker is rated at twenty amps and has a voltage rating of one hundred twenty to two hundred forty volts. The trip sensitivity is set at thirty milliamps, making it suitable for various applications. The breaker has a non-interchangeable trip type, ensuring safety and reliability in operation.

• Bolt-on installation
• Compatible with wire sizes from fourteen to four AWG
• Interrupted rating of ten kAIC

Product Highlights

This GFCI circuit breaker helps protect your electrical systems from ground fault conditions, making it ideal for residential and commercial applications.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: QB1020EP

Technical Specifications

• Type: Bolt-on Equipment Protection
• Voltage Rating: 120/240 V
• Amperage Rating: 20 A
• Trip Type: Non-Interchangeable
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Dimensions: 4 in L x 3-1/2 in W x 1 in H
• Circuit Breaker Type: QB
