Product Description

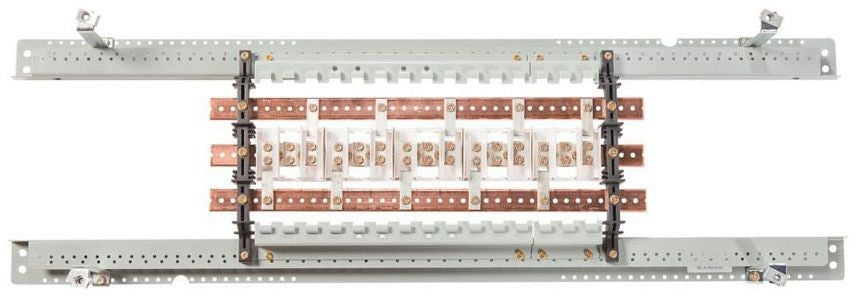

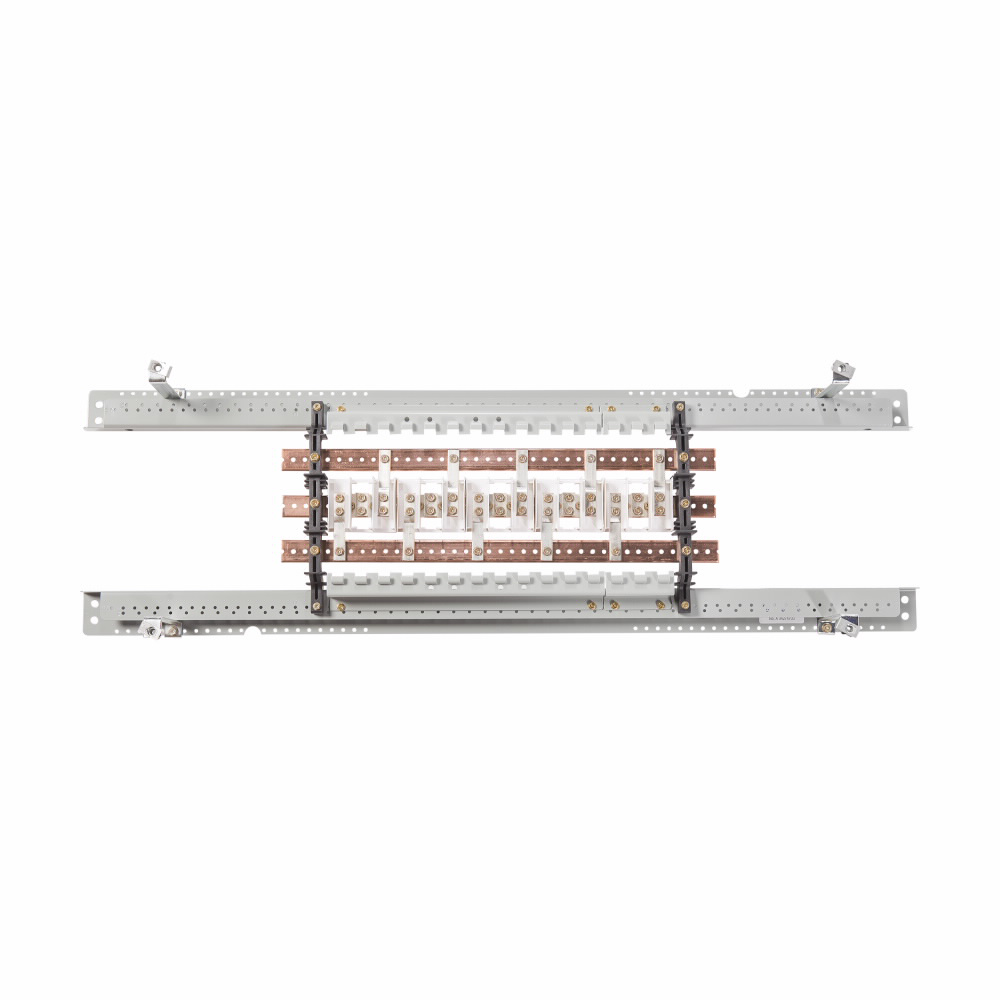

Eaton PRL1X3225X42CS is a panelboard interior designed for electrical assemblies and applications. It has a voltage rating of two hundred eight Y over one hundred twenty volts, a three-phase, four-wire configuration, and supports up to two hundred twenty-five amps. This model is built for durability with a copper bus and is compliant with UL 67 standards.
- Two hundred twenty-five amp rating
- Forty-two circuit capability
- Dimensions of six and one-half inches in height, eighteen and one-quarter inches in width, and forty-three and three-quarters inches in length
Product Highlights
The Eaton PRL1X3225X42CS offers features suitable for data centers, industrial, commercial, and healthcare facilities. It supports service entrance capability and includes a handle lock-off device for added safety.
Product Information
Standard Information
-
Brand: Eaton
-
Manufacturer Part Number: PRL1X3225X42CS
Technical Specifications
-
UPC: 786689363154
-
GTIN: 00786689363154
-
Amperage Rating: 225 A
-
Panelboard Type: Panelboard Interior
-
Number of Spaces: 42
-
Breaker Type: Main Breaker
-
Bus Material: Copper
-
Wiring Configuration: 4-Wire
-
Voltage Rating: 208Y/120 V
-
Dimensions: 6.5 inches H x 18.25 inches W x 43.75 inches L
-
Country of Origin: United States
