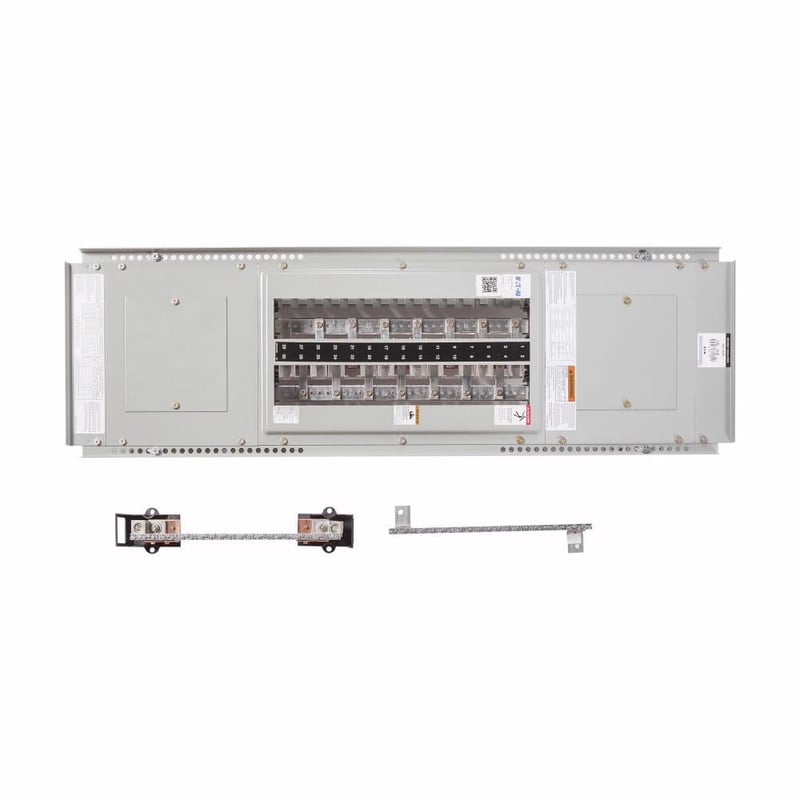

Eaton PRL1X1225X42AS PRL1XINTERIOR NO TFL 120/240 1P 3W 225A42 CKT AL BUS

Product Description

The Eaton PRL1X1225X42AS is designed for efficient power distribution in electrical assemblies and panels. This panelboard supports a handle lock-off device and includes bolt-on breakers up to one hundred A. Constructed for demanding environments, it is also qualified to exceed requirements of multiple building codes.

• Service entrance capability offered
• NEMA compliant with options for aluminum or copper bus
• Seismically tested and rated

Product Highlights

Ideal for industrial and commercial installations requiring robust electrical distribution solutions.

Product Information

Standard Information

• Brand: Eaton
• Catalog Description: PRL1X INTERIOR NO TFL 120/240 1P 3W 225A 42 CKT AL BUS

Technical Specifications

• Amperage Rating: 225 A
• Dimensions: 37.0000 IN x 15.0000 IN x 6.0000 IN
• Product Type: PRL1X Panelboard
• Certifications: UL 67, NEMA Compliant
• Phase: 1 Phase
• Commodity Code: 3424
• Application: Elec Assemblies, Panels & EOEM
• Product Feature: Offers flush or surface mounted options
