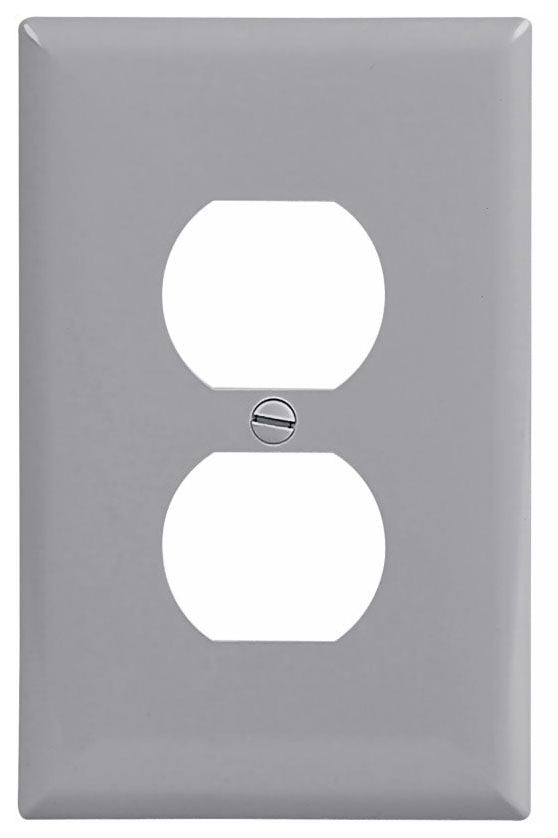

Eaton PJ8GY 1-Gang Duplex Receptacle Wallplate

Product Description

The Eaton PJ8GY is a gray, single-gang, mid-size duplex receptacle wallplate constructed from polycarbonate. This wallplate features a high-gloss finish and a screw-catch design for simplified installation. It is suitable for commercial, industrial, institutional, and high-traffic areas.

• Constructed from durable polycarbonate material.
• Features a high-gloss, soil-resistant finish.
• Includes a screw-catch design to hold mounting screws captive.

Product Highlights

Durable polycarbonate wallplate with high-gloss finish and easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: PJ8GY
• Country of Origin: CHN

Technical Specifications

• Material: Polycarbonate
• Cutout: 1.13 in H x 1.34 in W Duplex Receptacle
• Thickness: 0.08 in
• Color: Gray
• Number of Gangs: 1
• Size: 4.87 in H x 3.12 in W
• Type: Midway
• Finish: High Gloss
• Number of Ports: 2
• Standard & Approvals: UL Listed to UL 514D File No. E33216, cUL, UL File E33216 Certified to C22.2 File No. 42.1, RoHS Compliant
• Application: Commercial, Industrial, Institutional and Other High-Traffic Areas
• Brand: EATON
• Includes: Mounting Screws
• Temperature Rating: -40 to 158 Deg F
• Product Length/Depth: 0.08 in
• Product Height: 4.87 in
• Product Width: 3.12 in
• Compliances: RoHS Compliant
• Certifications: UL Listed, cULus Listed
• Product Type: Duplex receptacle wallplate
• Wallplate size: Mid-size
