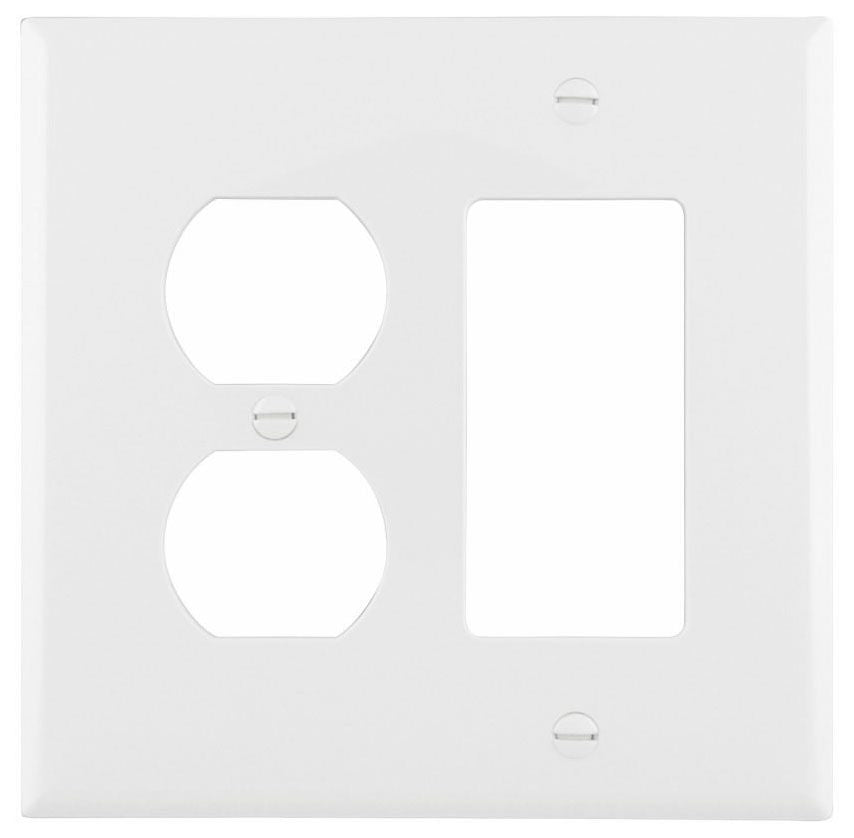

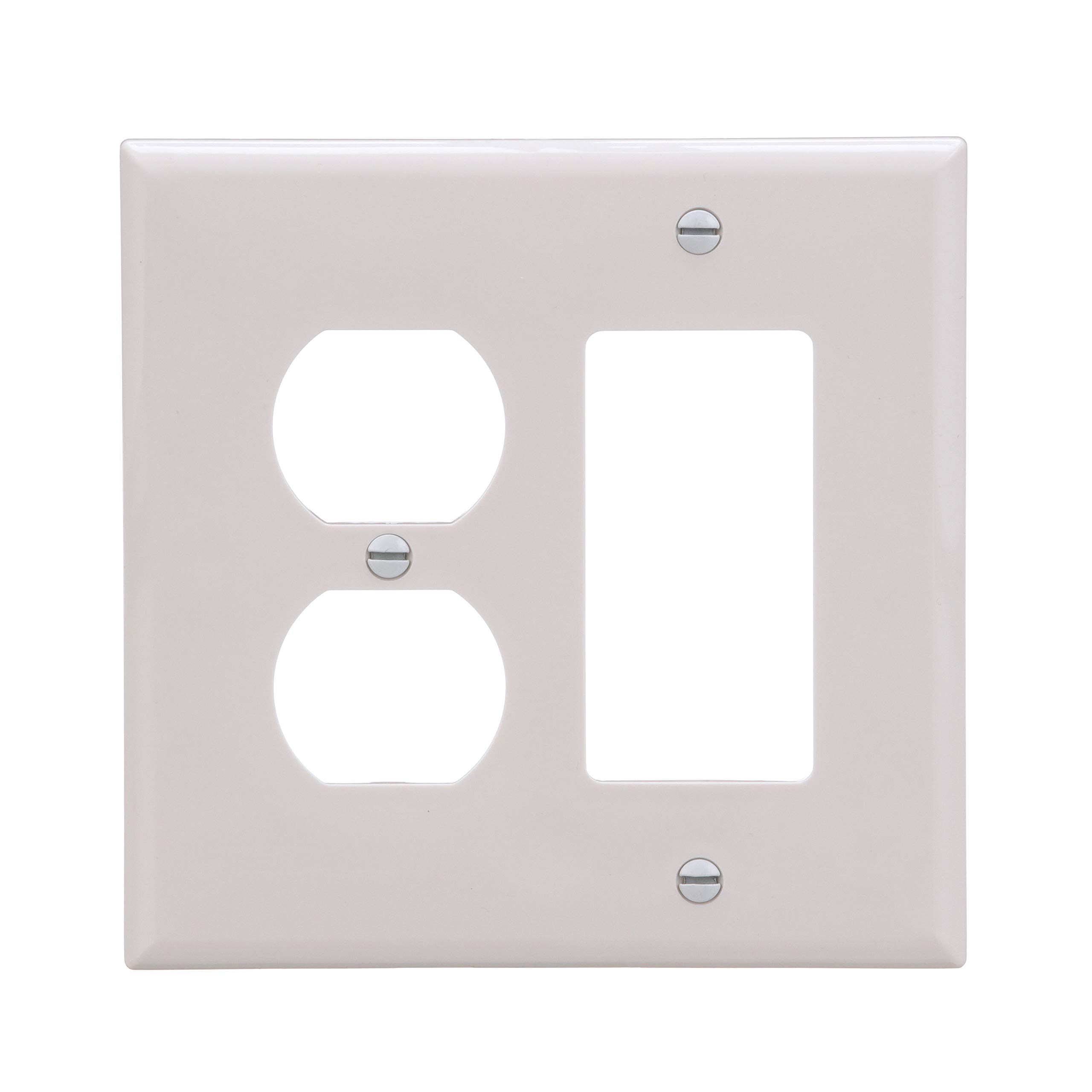

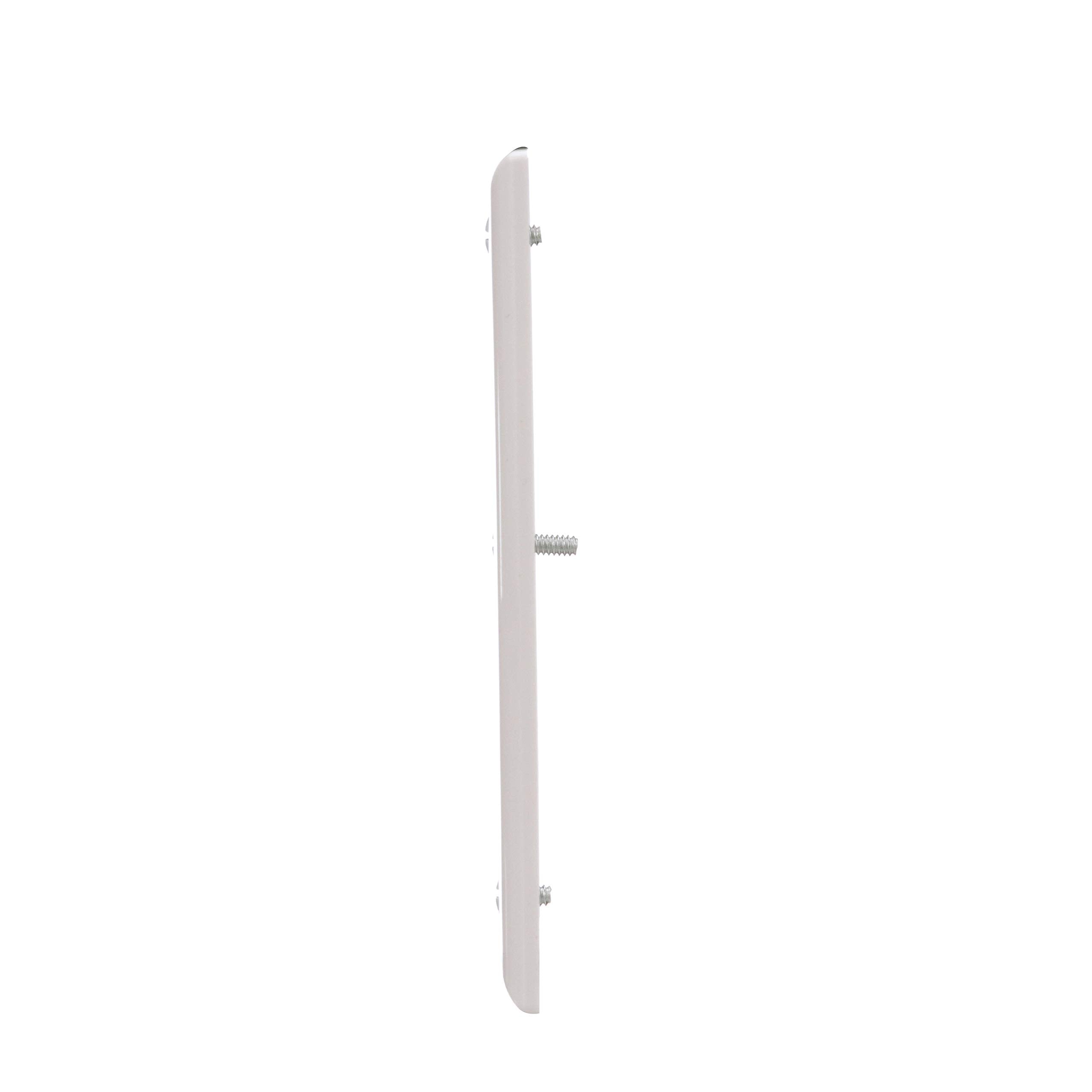

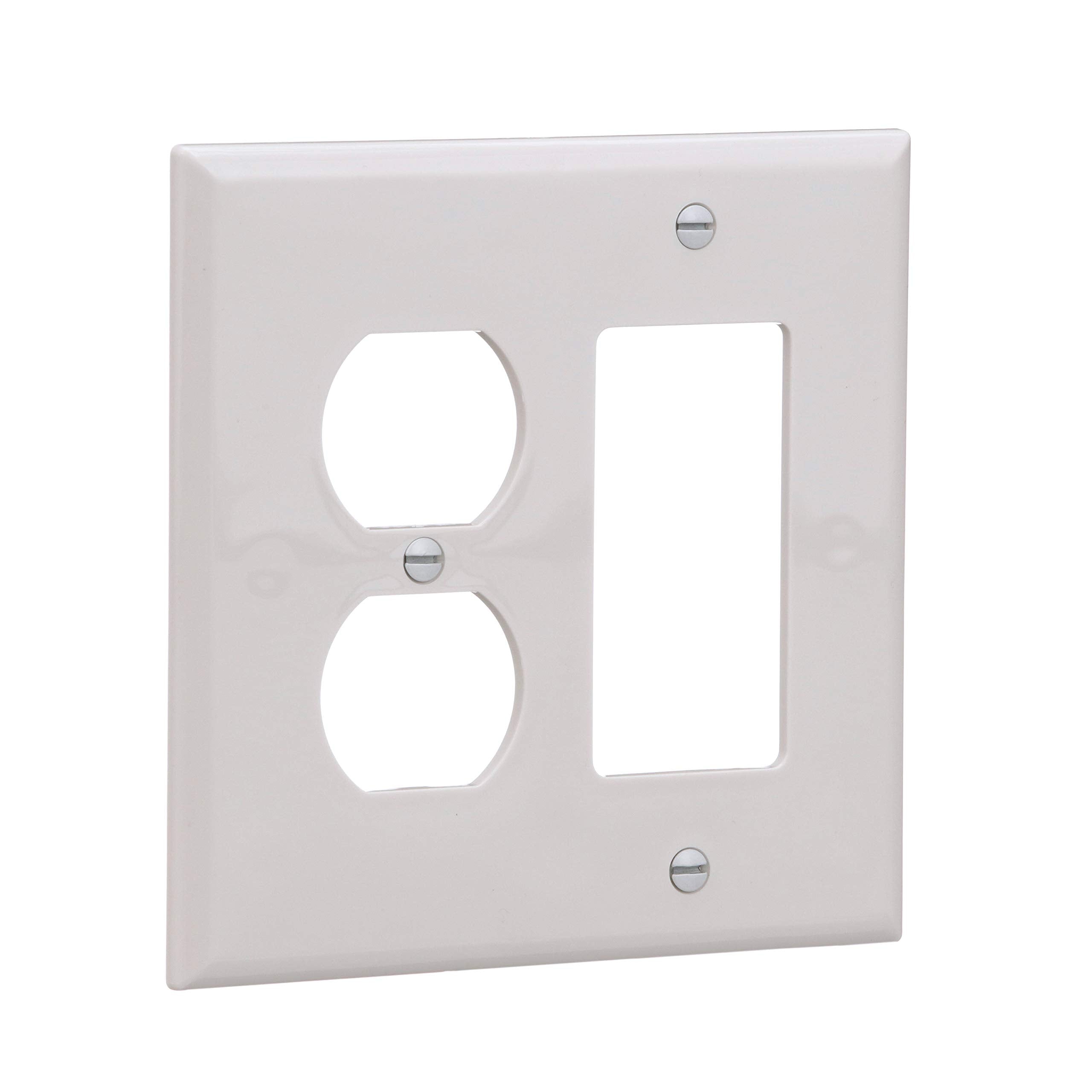

Eaton PJ826W Mid-Size Combination Wall Plate 2 Gangs

Product Description

The EATON PJ826W is a mid-size combination wall plate. Constructed from polycarbonate, this 2-gang wall plate offers superior impact resistance and long-term form retention. It features a timesaving screw catch that holds mounting screws captive, simplifying installation. Its high-gloss finish is soil resistant.

• Virtually unbreakable plates reduce installation and replacement costs
• -40 to 158 deg F temperature rating
• Screw-catch feature holds screws captive and simplifies installation

Product Highlights

This mid-size, 2-gang combination wall plate is durable and easy to install. Ideal for residential, commercial and industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: PJ826W
• Country of Origin: CHN

Technical Specifications

• Construction: Superior Impact-Resistance
• Cutout: 0.76 in H x 1.31 in W Duplex Receptacle, 2.64 in H x 1.31 in W Decorator Receptacle
• Finish: High Gloss
• Mounting: Threaded
• Number of Gangs: 2
• Size: 4.94 in W x 4.87 in H
• Material: Polycarbonate
• Brand: Eaton
• Product Type: WALL_PLATE
• Manufacturer: EATON
• Model / MPN: PJ826W
• Application: Commercial, Industrial, Institutional and Other High Traffic Area Applications
• Includes: Matching Mounting Screws
• Standards/Approvals: cUL Listed|UL 514D File No. E33216|CSA C22.2 No. 42.1|UL94 Flammability Rating
• Compliances: RoHS Compliant
• Certifications: cULus Listed, UL Listed
• Product Name: Eaton combination wallplate
• Special features: Duplex receptacle and decorator
• Wallplate size: Mid-size
