Eaton PJ5W Arrow Hart Medium Size Toggle Switch Wallplate 5 Gangs

Product Description

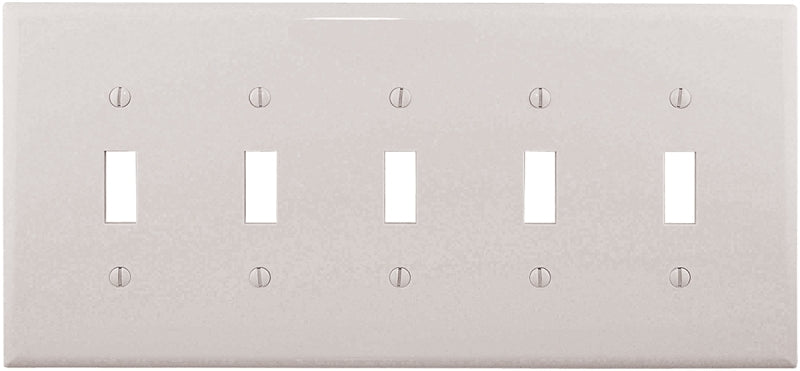

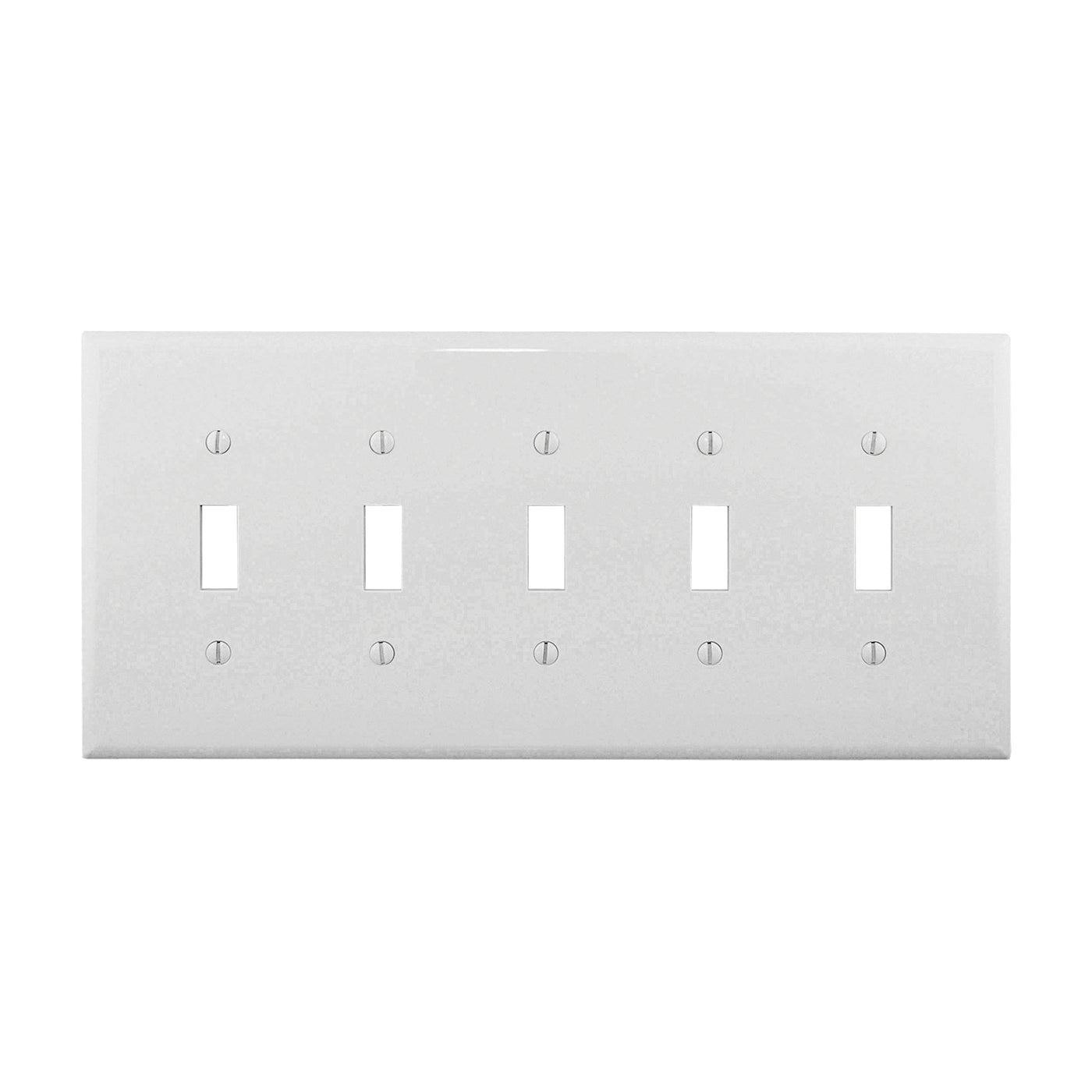

The EATON PJ5W Arrow Hart medium-size toggle switch wallplate is constructed from virtually unbreakable polycarbonate. This 5-gang wallplate offers high structural rigidity, long-term form retention, and superior impact and abrasion resistance. It reduces installation costs due to less breakage and resists bowing for a smooth, flat installation.

• Constructed from virtually unbreakable polycarbonate
• Features an exclusive time-saving screw-catch
• High-gloss finish is soil-resistant

Product Highlights

This EATON Arrow Hart wallplate provides durability and ease of installation for industrial, institutional, and high-traffic applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: PJ5W
• Country of Origin: CHN

Technical Specifications

• Brand: EATON
• MPN: PJ5W
• Material: Polycarbonate
• Type: Toggle Switch Wallplate
• Size: Medium
• Number of Gangs: 5
• Height: 4.87 in
• Width: 10.37 in
• Features: Screw-Catch feature
• Finish: High Gloss
• Cutout: 0.93 in H x 0.4 in W Toggle
• Thickness: 0.08 in
• Application: Industrial, Institutional and Other High-traffic Areas
• Standard & Approvals: UL Listed to UL 514D File No. E33216, cUL, UL File E33216 Certified to C22.2 File No. 42.1, RoHS Compliant
• Includes: Mounting Screws
• Product Length/Depth: 0.08 in
• Product Height: 4.87 in
• Product Width: 10.37 in
• Product Weight: 0.208 lb
• Compliances: RoHS Compliant
• Certifications: cULus Listed, UL Listed
• Product Type: Toggle wallplate
• Wallplate size: Mid-size
• Operating Temperature: -40 to 90
• Mounting Type: Flush
• Suitable for: Toggle Switch
• Orientation Type: Horizontal
• Flammability Rating: UL94
