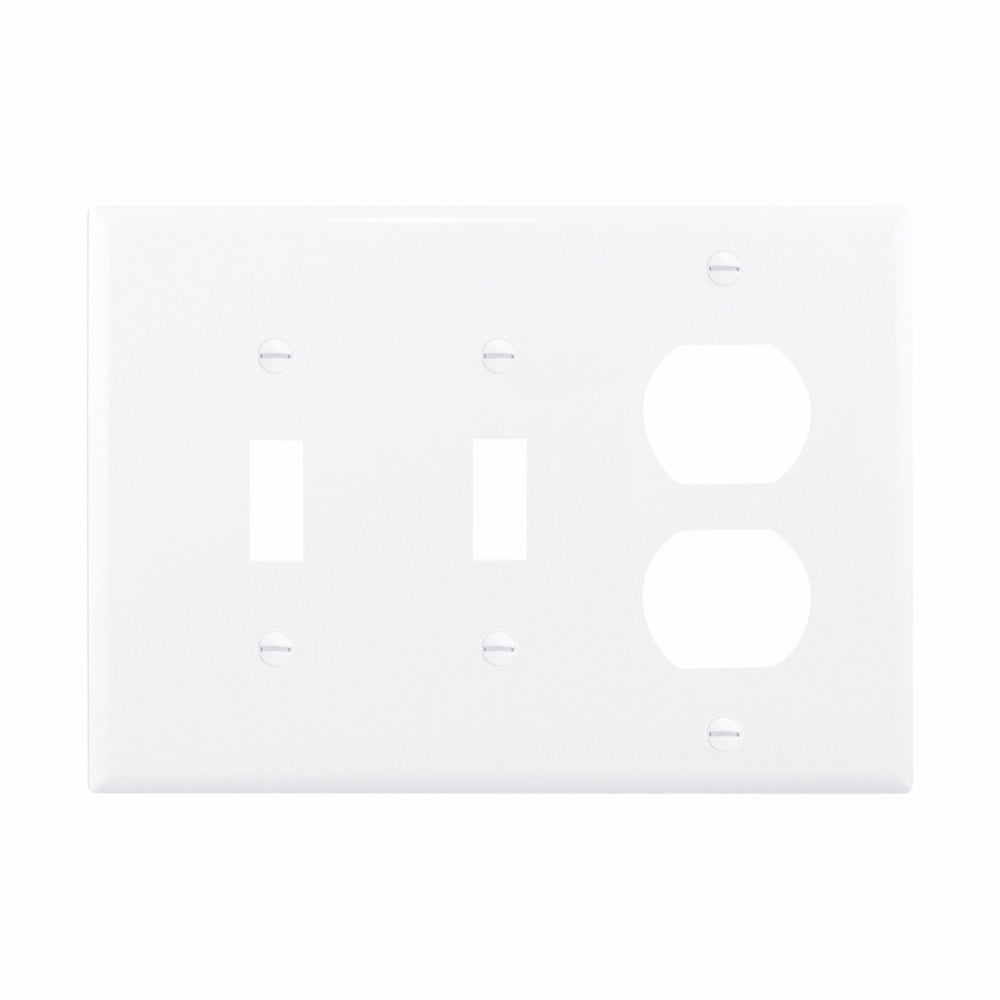

Eaton PJ28W combination wallplate three-gang mid-size

Product Description

The EATON PJ28W is a combination wallplate designed for toggle switches and duplex receptacles. Constructed from polycarbonate/thermoplastic, this mid-size, three-gang wallplate offers superior impact resistance. It features a high-gloss finish and includes mounting screws for easy installation. Ideal for commercial, industrial, and institutional applications.

• Made of durable polycarbonate/thermoplastic material
• Mid-size, three-gang configuration
• Includes cutouts for two toggle switches and one duplex receptacle

Product Highlights

Durable combination wallplate with a high-gloss finish, suitable for various applications. Includes cutouts for toggle switches and a duplex receptacle.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: PJ28W
• Country of Origin: CHN

Technical Specifications

• Type: Combination wallplate
• Brand: EATON
• MPN: PJ28W
• Color: White
• Material: Polycarbonate/Thermoplastic
• Configuration: Toggle; Toggle; Duplex receptacle Cutout
• Size: Mid-size
• Gang: Three- gang
• Application: Commercial, Industrial, Institutional, Non-Residential and Other High Traffic Area Applications
• Construction: Superior Impact-Resistance
• Cutout: (2) 0.93 in H x 0.4 in W Toggle Switch, (1) 1.53 in H x 1.34 in W x 1.13 in D Duplex Receptacle
• Finish: High Gloss
• Includes: Mounting Screws
• Mounting: Threaded
• Number of Gangs: 3
• Series: PJ Series
• Standards/Approvals: UL 514D|UL File No. E33216|cULus Listed|CSA C22.2 File No. 42.1|UL 94 5V-A Flammability Rated
• Product Length/Depth: 0.08 in
• Product Height: 4.87 in
• Product Width: 6.75 in
• Compliances: RoHS Compliant
• Certifications: cULus Listed, UL Listed
• Product Type: Combination wallplate
• Special features: Two toggles and duplex receptacle
• Wallplate size: Mid-size
• Temperature Rating: -40 to 158 Deg F
• Flammability Rating: UL 94-5V
