Eaton PJ26W Decorator Wall Plate Mid-Sized

Product Description

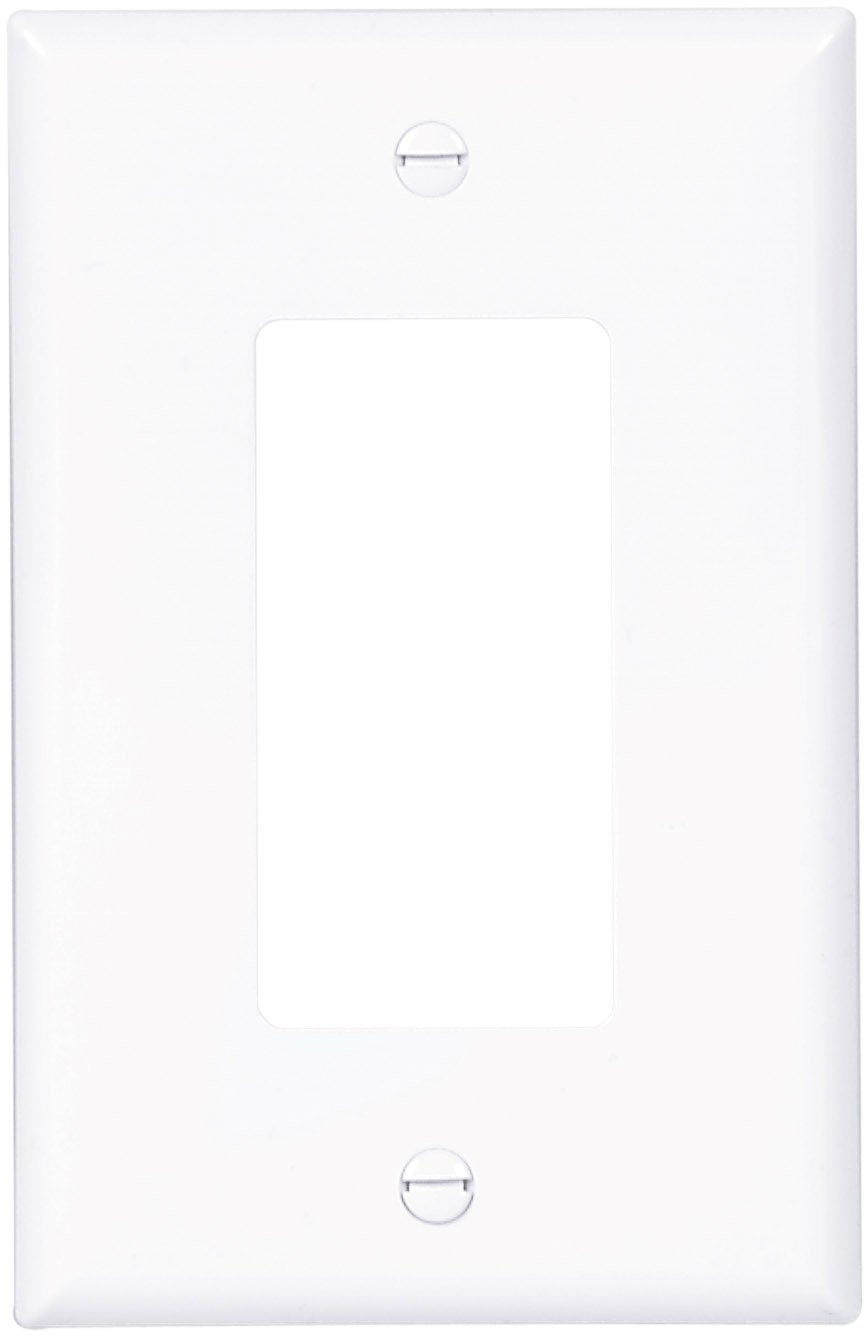

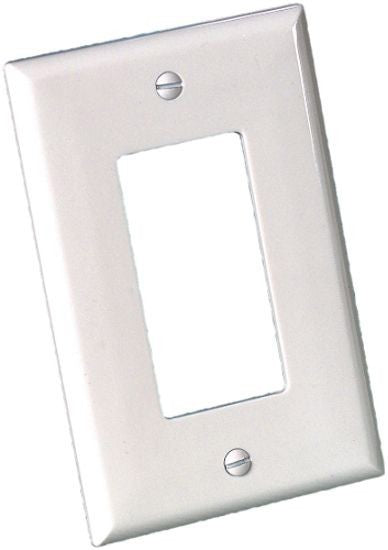

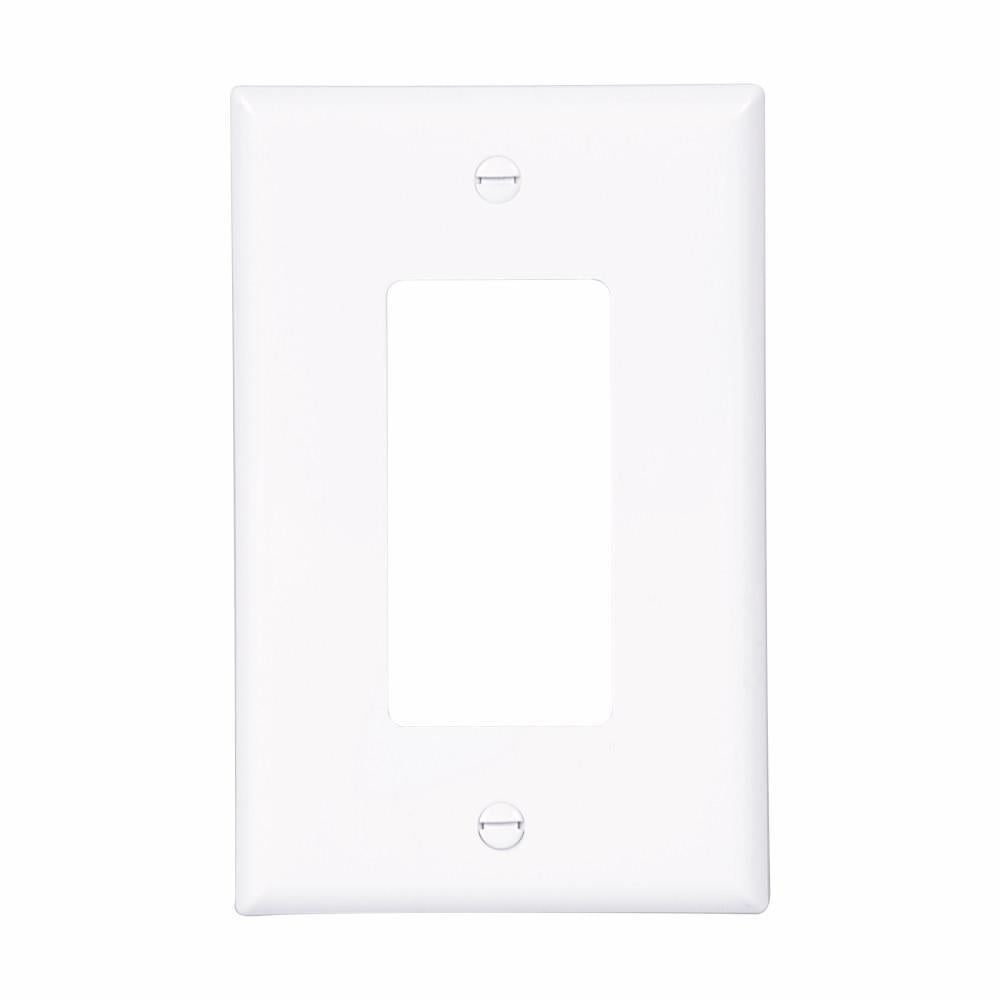

The Eaton PJ26W decorator wall plate is a mid-sized polycarbonate wallplate with high structural rigidity and superior impact and abrasion resistance. Its rugged construction reduces installation costs due to less breakage and resists bowing for a smooth, flat installation. The high-gloss finish is soil-resistant.

• Virtually unbreakable plates reduce installation and replacement costs
• Exclusive time-saving screw catch feature holds mounting screws captive and simplifies installation
• High gloss finish is soil-resistant

Product Highlights

This mid-sized decorator wall plate is durable and easy to install, making it suitable for various applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: PJ26W

Technical Specifications

• Construction: Screwless/Superior Impact-Resistant
• Cutout: 2.64 in H x 1.31 in W Decorator/Rocker Switch
• Finish: High Gloss
• Mounting: Threaded
• Series: PJ Series
• Thickness: 0.08 in
• Type: Mid-Sized
• Number of Gangs: 1
• Material: Polycarbonate/Thermoplastic
• Gangs: 1
• Height: 4.87 in
• Width: 3.12 in
• Application: GFCI
• Temperature Range: -40 to 70 deg C
• Number of Ports: 1
• Standard & Approvals: UL Listed to UL 514D File No. E33216, cUL, UL File E33216 Certified to C22.2 File No. 42.1, RoHS Compliant
• Includes: Mounting Screws
• Compliances: RoHS Compliant
• Certifications: UL Listed, cULus Listed
• Product Type: Decorator / GFCI wallplate
• Wallplate size: Mid-size
