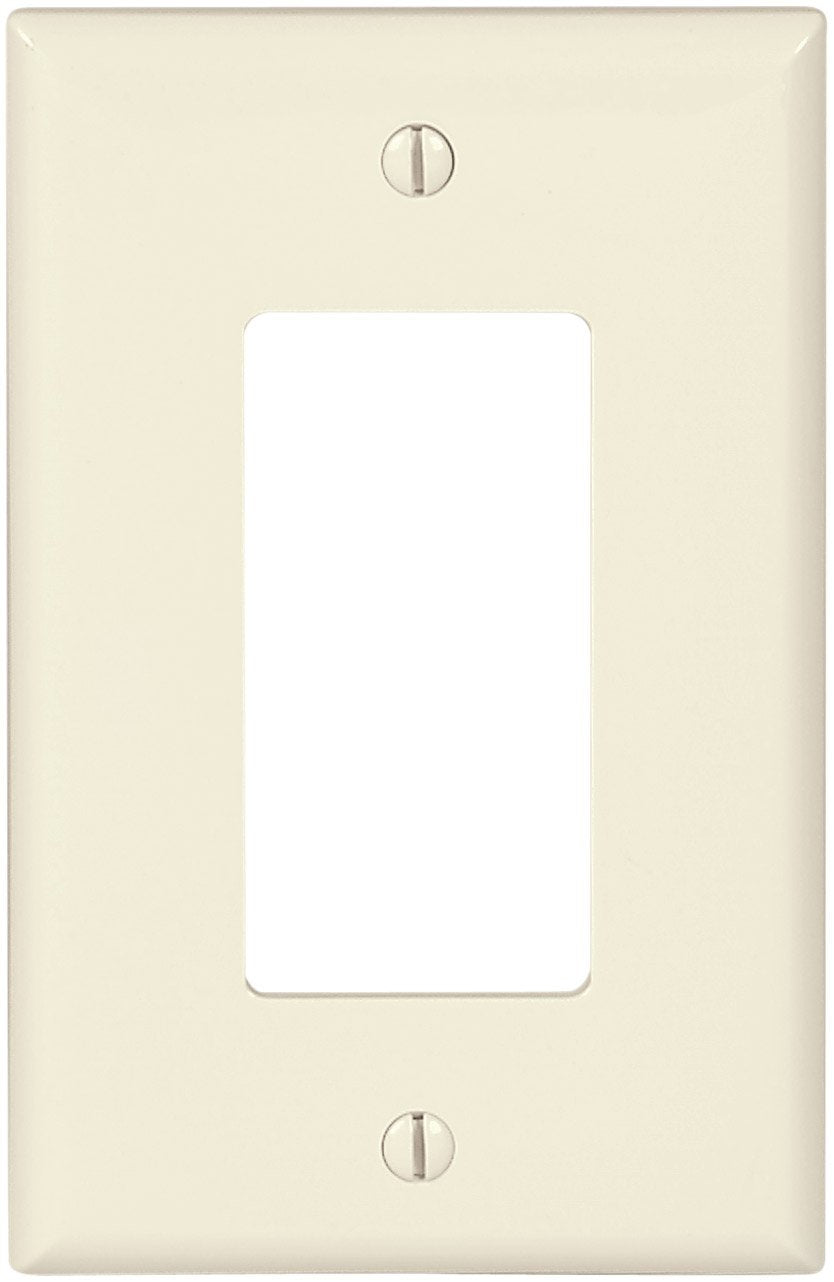

Eaton PJ26LA 1G Deco Mid-Sz Wp

Product Description

The EATON PJ26LA Mid-Size 1-Gang Decorator Switch Wallplate is constructed of polycarbonate for less breakage. The screw-catch holds mounting screws captive for a quick installation. This polycarbonate wallplate has a flush-fitting, warp resistant design. Matching mounting screws are included. It is cULus listed.

• Polycarbonate construction is bow resistant for less breakage
• Screw-catch holds mounting screws captive and makes for fast and simple installation
• Extensive line of non-flammable polycarbonate plates provides flush-fitting, warp resistant performance

Product Highlights

This decorator wallplate is virtually unbreakable, with high structural rigidity, long-term form retention, and superior impact and abrasion resistance. High gloss finish is soil resistant.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: PJ26LA
• Country of Origin: CHN

Technical Specifications

• Brand: Eaton
• Manufacturer: EATON
• Model / MPN: PJ26LA
• Number of Items: 1.0
• Product Type: Decorator / GFCI wallplate
• Product Group: Home Improvement
• Number Of Gangs: 1
• Series: Arrow Heart
• Standards: cULus Listed, RoHS Compliant, NAFTA Compliant
• Temperature Rating: -40 - 70 deg C
• Type: Mid Size, Decorator
• Cutout: 1.31" W x 2.64" H
• Finish: High Gloss
• Thickness: 0.08 in
• Construction: Superior Impact Resistance
• Number of Ports: 1
• Material: Polycarbonate
• Application: Commercial, Industrial, Institutional and Other High-Traffic Areas
• Standard & Approvals: UL Listed to UL 514D File No. E33216, cUL, UL File E33216 Certified to C22.2 File No. 42.1, RoHS Compliant
• Includes: Mounting Screws
• Product Length/Depth: 0.08 in
• Product Height: 4.87 in
• Product Width: 3.12 in
• Compliances: RoHS Compliant
• Certifications: UL Listed, cULus Listed
• Wallplate size: Mid-size
• Number of Throws: 1
• Number of Switches: 1
• Plate Design: Decorator/Rocker
• Suitable For: Interior, Wall
• Port Type: Light Switch
• Control Style: Switch
• Decorative Style: Traditional
• Number of Outlets: 1
• Operation Method: Outlet
• Outlet Configuration: Single
• Interruption Type: Switch
• Switch Style: Decorator/Rocker
• Features: Including Cover
• Box Shape: Rectangular
• Room: Any Room
• Mounting Style: Wall, Screw, Flush
• Resistance Properties: Impact Resistant
