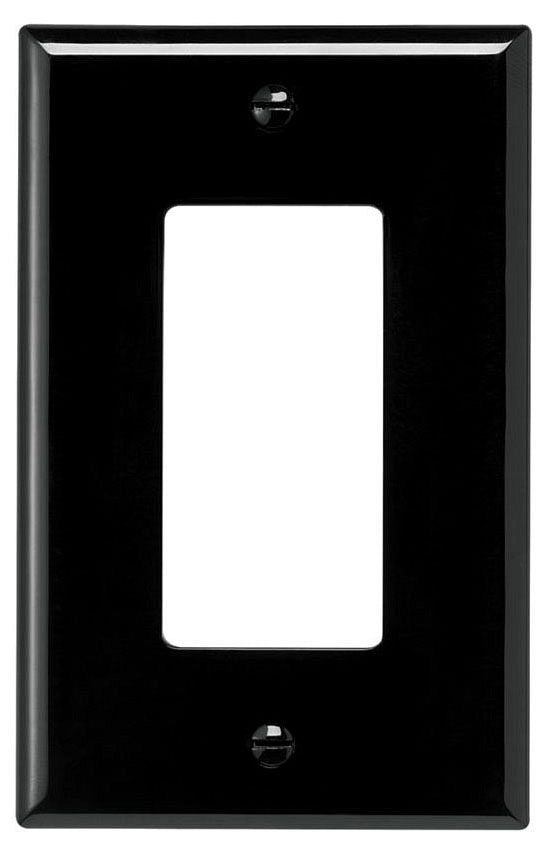

Eaton PJ26BK PJ Series Mid-Sized Decorator Wallplate 1 Gang

Product Description

The EATON PJ26BK PJ Series mid-sized decorator wallplate is constructed from polycarbonate/thermoplastic material. This 1 gang wallplate measures 4.87 in H x 3.12 in W. It features high structural rigidity, long-term form retention, and superior impact and abrasion resistance. Matching mounting screws are provided.

• Polycarbonate wallplates are virtually unbreakable
• Features high structural rigidity and long-term form retention
• Offers superior impact and abrasion resistance

Product Highlights

This decorator wallplate's rugged construction reduces installation cost and resists bowing for a smooth, flat installation. It also features an exclusive timesaving Screw-Catch.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: PJ26BK

Technical Specifications

• Series: PJ Series
• Gangs: 1
• Material: Polycarbonate/Thermoplastic
• Height: 4.87 in
• Width: 3.12 in
• Type: Mid-Sized Decorator Wallplate
• Application: Commercial, Industrial, Institutional, Non-Residential and Other High Traffic Area Applications
• Construction: Screwless/Superior Impact-Resistant
• Cutout: (1) 2.64 in H x 1.31 in W Decorator
• Finish: High Gloss
• Includes: Mounting Screws
• Manufacturer Part Number: PJ26BK
• Mounting: Threaded
• Number of Gangs: 1
• Standards/Approvals: UL 514D|UL File No. E33216|cULus Listed|CSA C22.2 File No. 42.1|Federal Specification WP-455|UL 94 V-2 Flammability Rated
• Thickness: 0.08 in
• Number of Ports: 1
• Manufacturer: EATON
• Product Type: Decorator / GFCI wallplate
• Wallplate size: Mid-size
