Eaton PJ126W Wiring 2 Gang Decorator/Toggle Wall Plate

Product Description

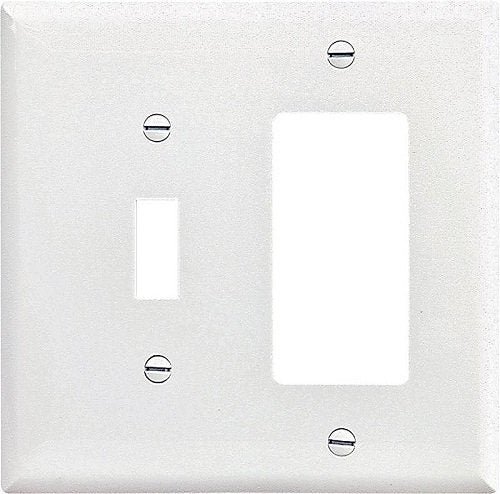

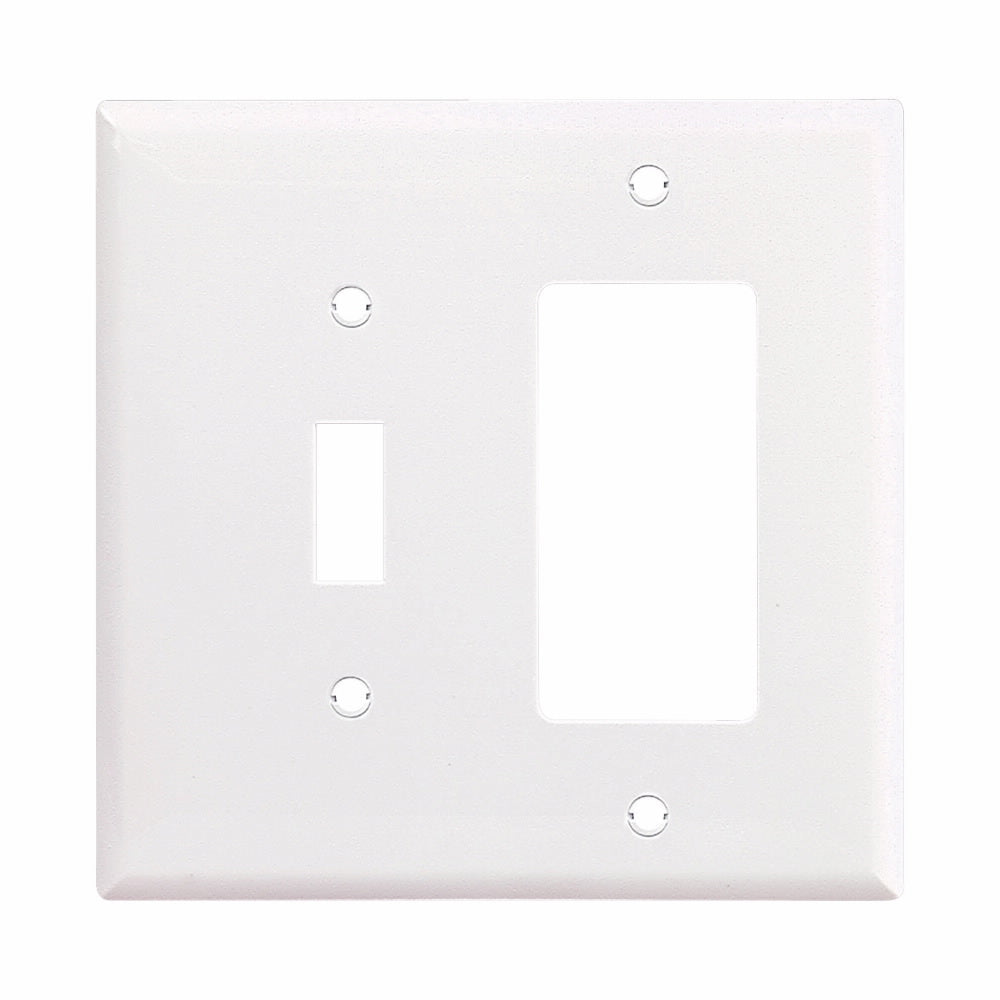

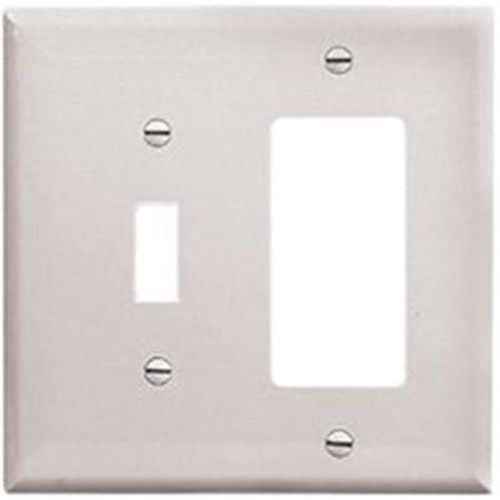

The EATON PJ126W Arrow Hart wall plate is a combination, mid-size, 2-gang plate designed for toggle switches and decorator cutouts. Constructed from polycarbonate with a high gloss finish, it measures 4-1/2 in length and 4.56 in width. It is suitable for commercial, industrial, institutional, and high-traffic area applications.

• Includes matching screws for installation.
• Temperature range: -40 to 70 deg C.
• Made of virtually unbreakable polycarbonate.

Product Highlights

This durable polycarbonate wall plate reduces installation costs and resists bowing for a smooth, flat installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: PJ126W
• Country of Origin: United States

Technical Specifications

• Series: Pj126
• Length: 4-1/2 in
• Width: 4.56 in
• Thickness: 0.08 in
• Gangs: 2
• Material: Polycarbonate
• Finish: High gloss
• Temperature Range: -40 to 70 deg c
• Listing: cul/UL
• Application: Commercial, Industrial, Institutional and Other High Traffic Area Applications
• Construction: Superior Impact-Resistance
• Cutout: (1) 1.53 in H x 1.34 in W, 0.93 in H x 0.4 in W, 2.64 in H x 1.31 in W Toggle Switch/Decorator
• Mounting: Threaded
• Number of Gangs: 2
• Standards/Approvals: cUL Listed|UL 514D File No. E33216|CSA C22.2 No. 42.1|UL94 Flammability Rating
• Type: Mid-Size
• Compliances: RoHS Compliant
• Certifications: cULus Listed UL Listed
• Product Type: Combination wallplate
• Special features: Toggle and decorator
• Wallplate size: Mid-size
• Number of Ports: 2
