Eaton PHR1N12F Pistol Red Size 1 N3R/12

Product Description

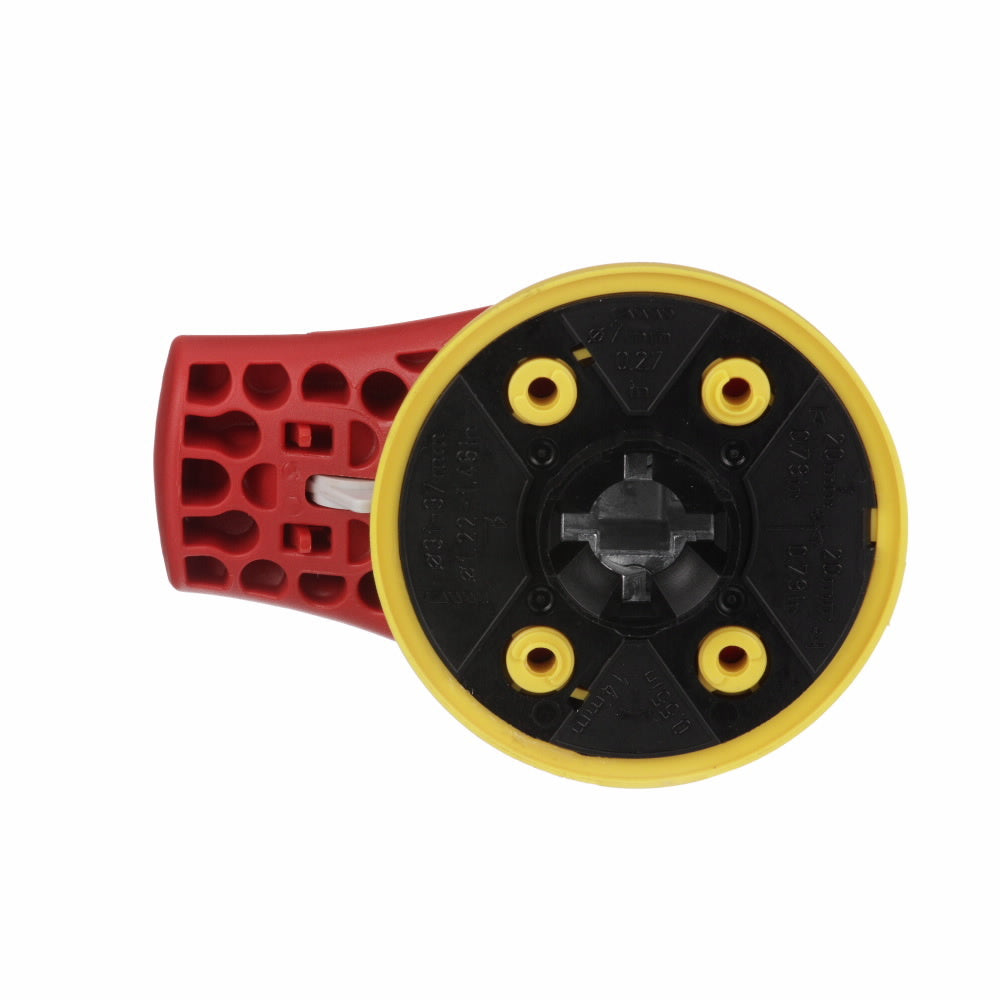

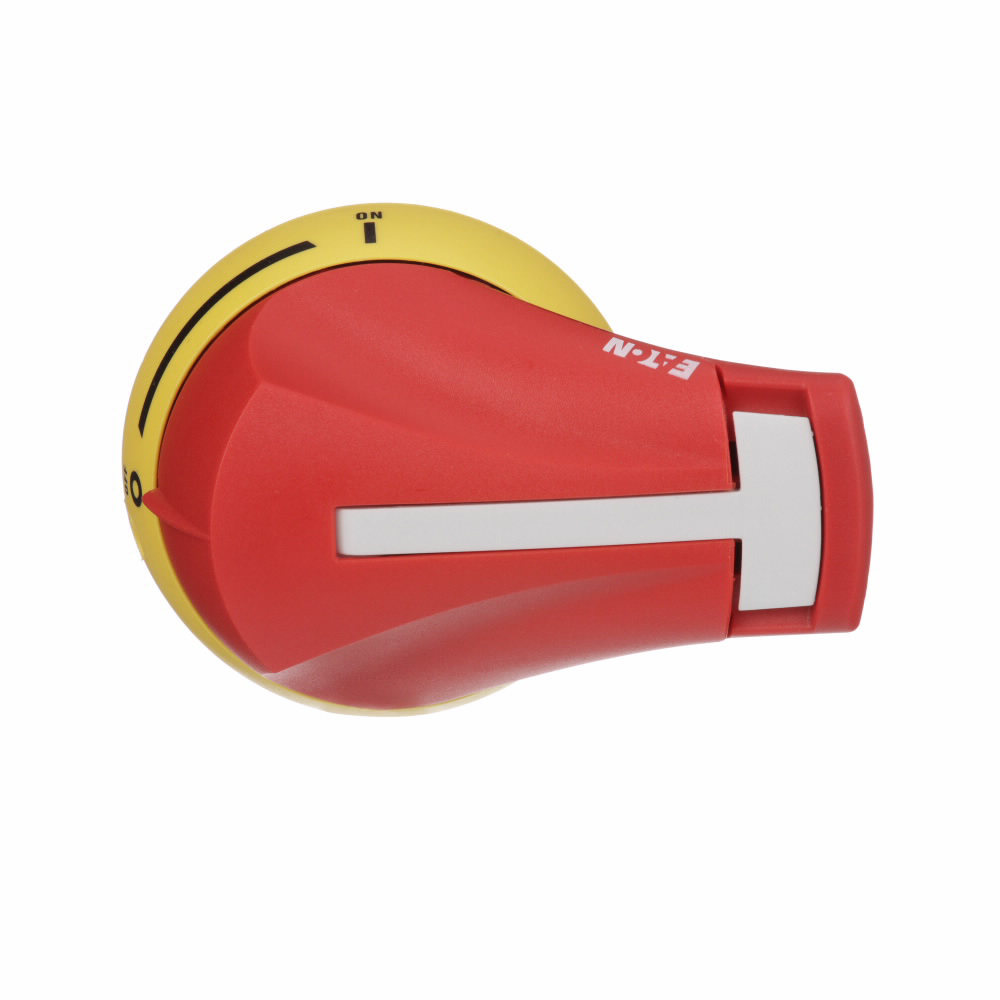

Eaton's PHR1N12F is an external front pistol handle designed for rotary disconnect switches. This model supports a range of 30 to 60 amperes, making it suitable for various applications. The handle features a red and yellow color scheme and complies with NEMA ratings 1, 3R, and 12.

• Designed for H/I/J frame rotary disconnect switches.
• Compatible with multiple enclosure types including NEMA 1, 3R, and 12.
• Enables secure operation and enhances safety features when used with padlocks.

Product Highlights

The Eaton PHR1N12F handle facilitates user-friendly operation while ensuring safety compliance. It is intended for industries that require reliable power distribution solutions.

Product Information

Standard Information

• Catalog Number: PHR1N12F
• Manufacturer: Eaton

Technical Specifications

• Type: PH1 Door Interlocked External Front
• Color: Red/Yellow
• Width: 3.07 inches
• Height: 2 inches
• Length: 1.73 inches
• Weight: 0.45 lbs
• Amperage: 100 Amps
• Applications: Suitable for industrial facilities and factories, for power distribution and control.
