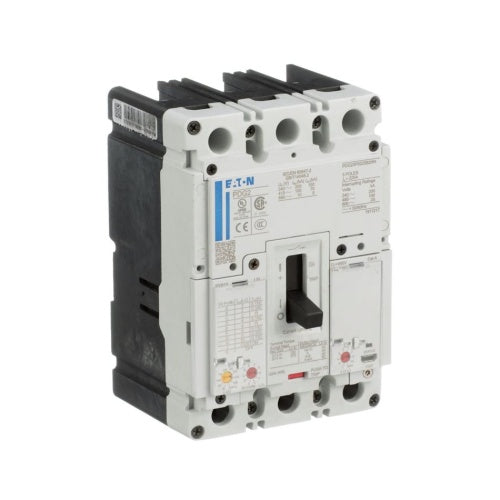

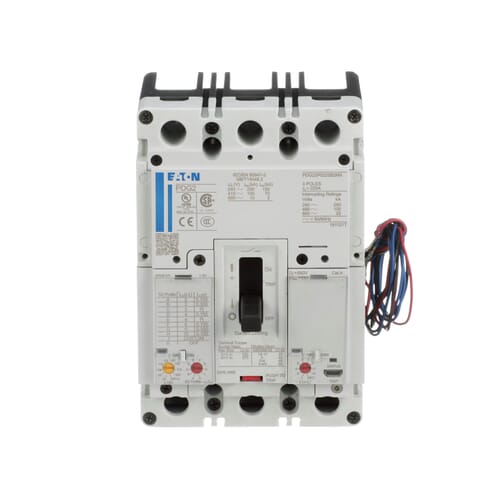

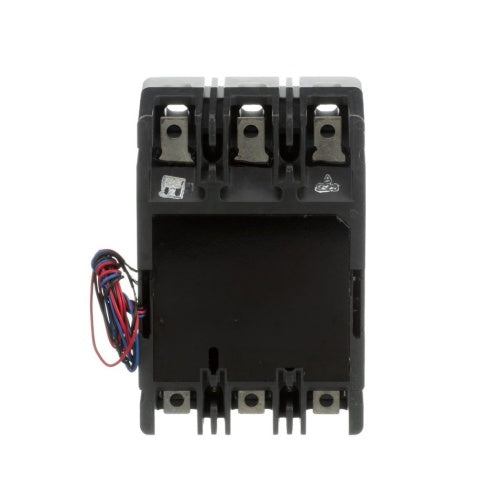

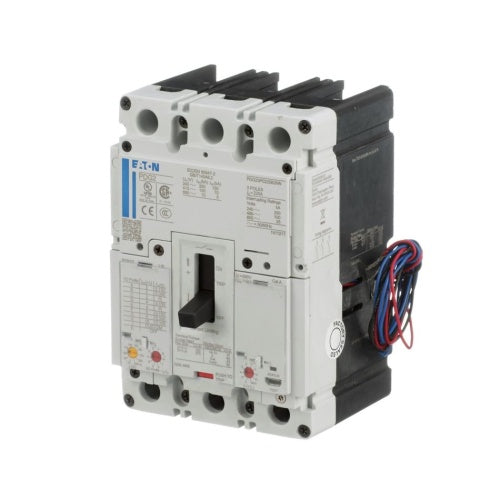

Eaton PDG23M0225B2NJ Power Defense molded case circuit breaker 225 A

Product Description

The Eaton PDG23M0225B2NJ Power Defense molded case circuit breaker is globally rated. It helps optimize facilities' performance and keep employees safe by reducing the risk of arc flash events. The circuit breaker has communicating electronic trip units that generate data. It has a voltage rating of 600 VAC and an amperage rating of 225 A.

• Power Xpert Release trip units offer features such as Breaker Health and multiple Load Alarms
• Arcflash Reduction Maintenance System helps to reduce arc flash incident energy levels
• Field installable components and trip units minimize the amount of inventory

Product Highlights

The Eaton PDG23M0225B2NJ circuit breaker is easy to adapt to any application. It improves personnel safety and productivity.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: PDG23M0225B2NJ

Technical Specifications

• Product Name: Eaton Power Defense molded case circuit breaker
• Catalog Number: PDG23M0225B2NJ
• UPC: 786679204535
• Product Length/Depth: 88.9 mm
• Product Height: 152.4 mm
• Product Width: 104.6 mm
• Compliances: RoHS Compliant
• Certifications: CCC Marked CSA IEC 60947-2 UL 489
• Product Type: Molded case circuit breaker
• Amperage Rating: 225 A
• Circuit breaker frame type: Complete breaker
• Frame: 2
• Number of Poles: 3
• Circuit breaker type: PD2 Global
• Class: Class A
• Trip Type: T281
• Voltage rating: 600 Vac
• Terminals: Standard Line and Load
• Interrupt rating: 65 kAIC at 480 Vac
• Interrupt rating range: 70 kAIC Icu/ 53 kAIC Ics/ 154 kAIC Icm @380-415V (IEC) 65 kAIC @480V (UL) 22 kAIC Icu @125 Vdc 10 kAIC Icu/ 5 kAIC Ics/ 21 kAIC Icm @690V (IEC) 30/25 kAIC Icu/ 15/13 kAIC Ics @525V South Africa (IEC) 35 kAIC @600V (UL/CSA) 100 kAIC @240V (UL) 50 kAIC Icu/ 40 kAIC Ics/ 105 kAIC Icm @440V (IEC) 100 kAIC Icu/ 100 kAIC Ics/ 220 kAIC Icm @240V (IEC) 22 kAIC Icu @250 Vdc 50 kAIC Icu/ 30 kAIC Ics/ 105 kAIC Icm @480V Brazil (IEC) 25 kAIC @600V (UL/CSA)
• Auxiliary Contact Rating: 690 V
• Connection Type: Line/Load
• Enclosure Type: IP2X
• Frequency Rating: 50 to 60 Hz
• Material: Glass Polyester
• Mounting Type: Fixed/Plug-In/DIN Rail
• Power Rating: 3 W
• Series: PDG2
• Temperature Rating: -20 to +70 deg C
• Type: PD2 Global Ratings
• Wire Size: 4 to 4/0 AWG, 21.2 to 107 sq-mm
• Interrupt Rating: 65 kA
• Poles (Molded Case Breaker): Three Pole
• Amperage (Molded Case Breaker): 225 Amp
• Maximum Voltage (Molded Case Breaker): 600 VAC
• UL Listing (Molded Case Breaker): UL 489
• Component: Molded Case Circuit Breaker
• Interrupt Rating (Molded Case Breaker): 65 Ka 480 Volt
• Manufacturer: Eaton
• Frame Type (Molded Case Breaker): 2 Frame
• Brand: Eaton
• Condition: New
• UNSPSC: 39121616
• Application: Utility - Substations, Utility Transmission and Distribution, Marine Vessels and Equipment - Marine Vessels and Equipment - Other, Electrical Assemblies, Panels and EOEMs Applications, Panels and EOEMs , Conventional Energy, On-Road Vehicles, Mobile Machinery and Equipment, Stationary Machine Equipment in Factory - Robotics, Renewable Energy and Alternative Energy Generation, Aviation, Vocational Vehicles
