EATON PDG23M0080TFFL Power Defense Molded Case Circuit Breaker 600 VAC 80 A 65 kA at 480 V/25 kA at 600 V

Product Description

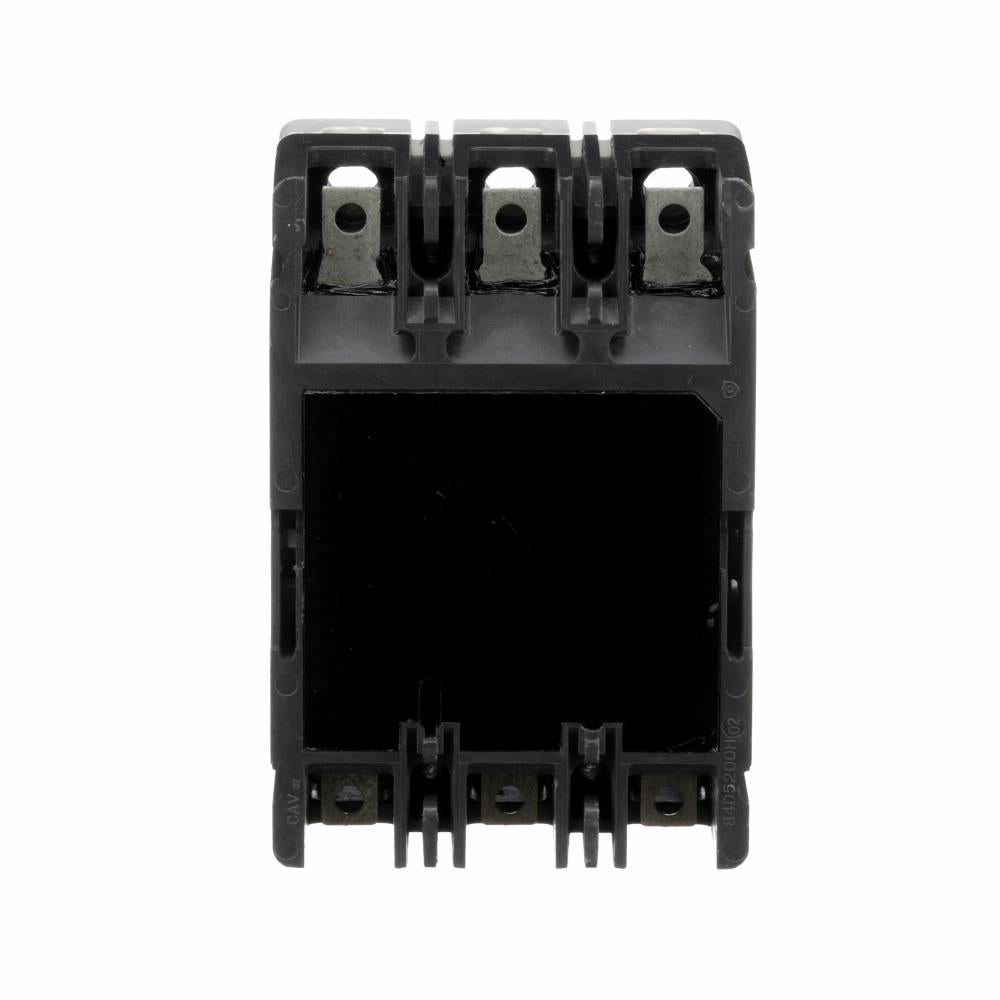

The EATON Power Defense PDG23M0080TFFL is a molded case circuit breaker rated for 600 volts AC. It has an amperage rating of 80 A and provides protection with an interrupt capacity of 65 kA at 480 volts and 25 kA at 600 volts. This device features three poles with a fixed thermal and fixed magnetic trip system. It is designed for various applications in commercial and industrial settings.

• Globally rated for various applications
• Compact and adaptable design
• Enhanced safety features to reduce arc flash risk

Product Highlights

This circuit breaker helps ensure the safety and efficiency of electrical systems while enabling performance optimization through data generation.

Product Information

Standard Information

• Manufacturer: EATON
• MPN: PDG23M0080TFFL

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 80 A
• Interrupt Rating: 65 kA at 480 V/25 kA at 600 V
• Number of Poles: 3
• Trip Type: Fixed Thermal/Fixed Magnetic
• Frame: 2
• Dimensions: 4.1 in W x 3.5 in D x 6 in H
• Mounting Type: Fixed/Plug-In/DIN Rail
• Temperature Rating: -20 to 70 deg C
• Wire Size: 14 to 1/0 AWG
• Enclosure Type: IP2X
• Material: Glass Polyester
• Frequency Rating: 50/60 Hz
• Application: Suitable for aviation, electrical assemblies, marine vessels, and utility substation applications.
