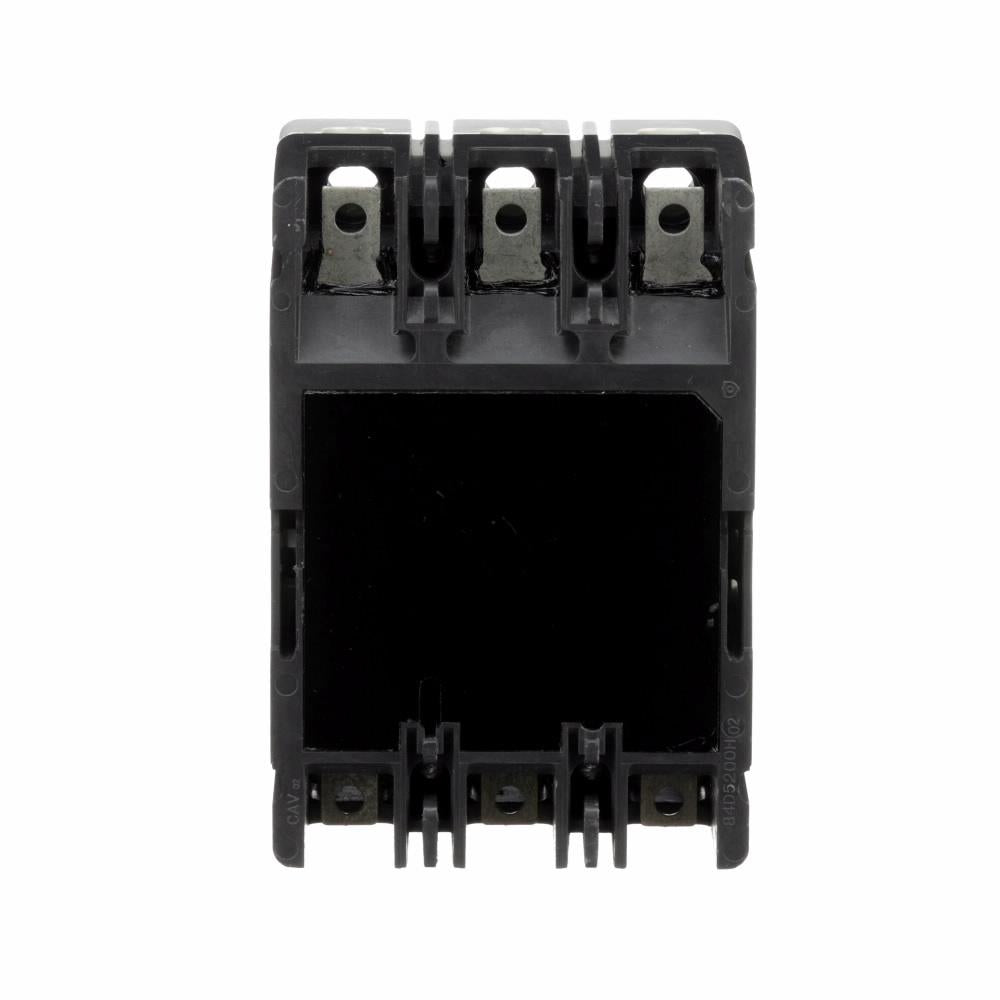

EATON PDG23M0060TFFL PDG2 PD2 Global Ratings, 600 VAC, 60 A, 65 kA interrupt, 3 poles, T-M Fxd-Fxd TU trip

Product Description

The EATON PDG23M0060TFFL is a molded case circuit breaker that meets PD2 global ratings. Designed for versatility, it operates at 600 VAC and 60 amperes with a 65 kA interrupt rating. This breaker provides reliable protection in various applications with features to keep personnel safe.

• 600 VAC capability with 60 A rating
• 65 kA interrupt capacity
• Adaptable for different installation types

Product Highlights

This circuit breaker is suitable for utility substations, marine equipment, aviation, and renewable energy applications. It features a compact design for easy integration.

Product Information

Standard Information

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 600 VAC
• Interrupt Rating: 65 kA
• Number of Poles: 3
• Frame Size: 2
• Dimensions: 6 in H x 4.1 in W x 3.5 in D
• Material: Glass Polyester
• Mounting Type: Fixed/Plug-In/DIN Rail
• Temperature Rating: -20 to +70 deg C
• Auxiliary Contact Rating: 690 V
