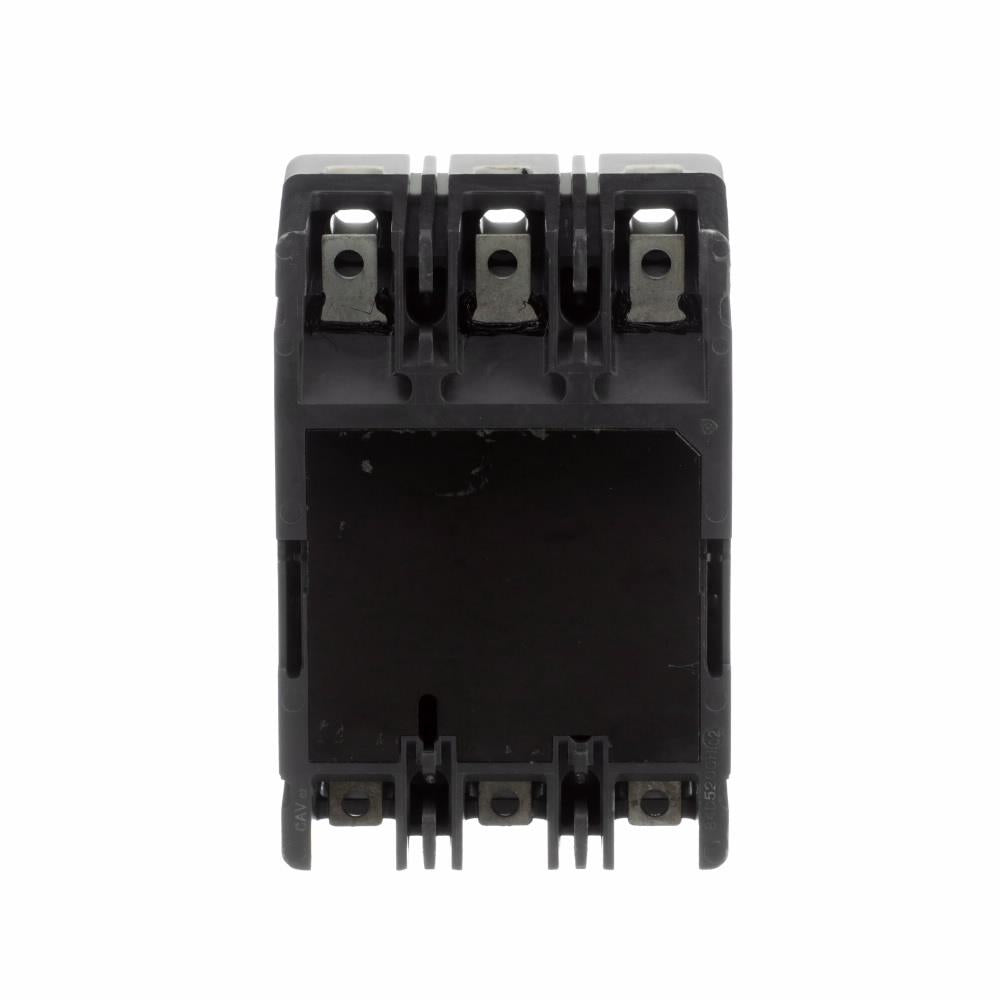

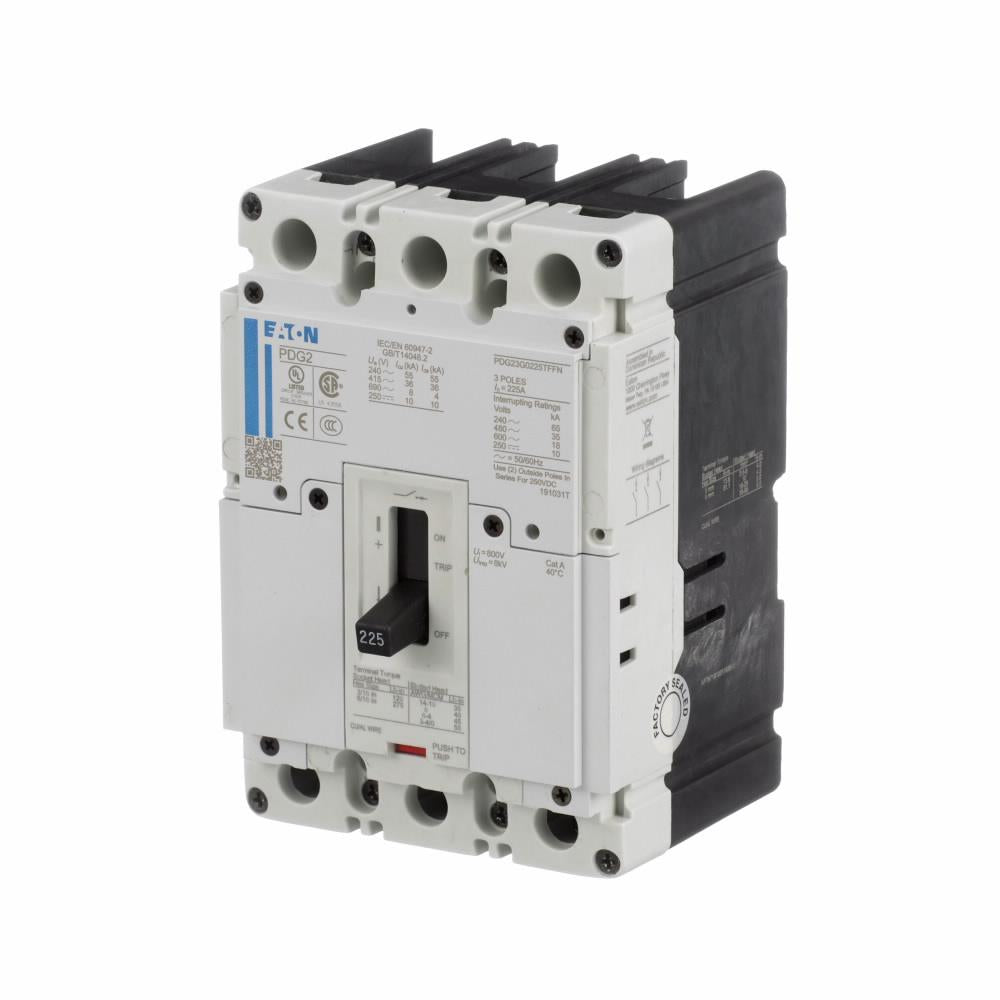

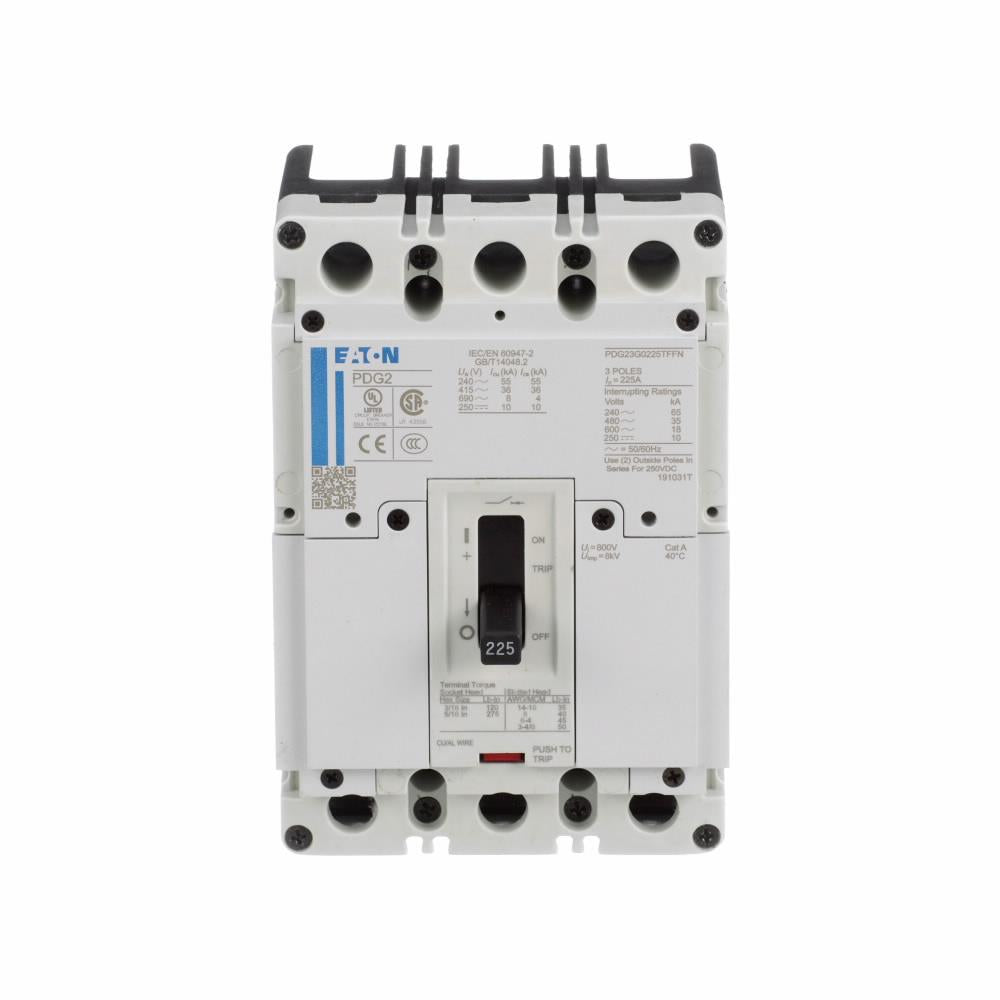

EATON PDG23G0200TFFL PDG2 PD2 Global Ratings, 600 VAC, 200 A, 35 kA interrupt, 3 poles, T-M Fxd-Fxd TU trip

Product Description

The Eaton PDG23G0200TFFL is a molded case circuit breaker with PD2 global ratings. It provides reliable protection in various applications requiring 600 VAC and up to 200 A. This circuit breaker has a 35 kA interrupt rating and features three poles with a T-M fixed-fxd TU trip. It is designed to help keep facilities running efficiently while enhancing safety.

• Rated for 600 VAC and 200 A
• Dimensions are six inches in height, four point one inches in width, and three point five inches in depth
• Available in an IP2X enclosure suitable for various environments

Product Highlights

This breaker is optimized for operational safety, reducing risks associated with arc flash events. Its compact design allows for versatility in installation.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 786679912003

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 600 VAC
• Interrupt Rating: 35 kA
• Frequency Rating: 50 to 60 Hz
• Number of Poles: 3
• Trip Type: T-M (Fxd-Fxd) TU
• Enclosure Type: IP2X
• Wire Size: 4 to 4/0 AWG, 21.2 to 107 sq-mm
• Temperature Rating: -20 to +70 deg C
• Material: Glass Polyester
• Mounting Type: Fixed/Plug-In/DIN Rail
• Auxiliary Contact Rating: 690 V
• Dimensions: 6 in H x 4.1 in W x 3.5 in D
