Product Description

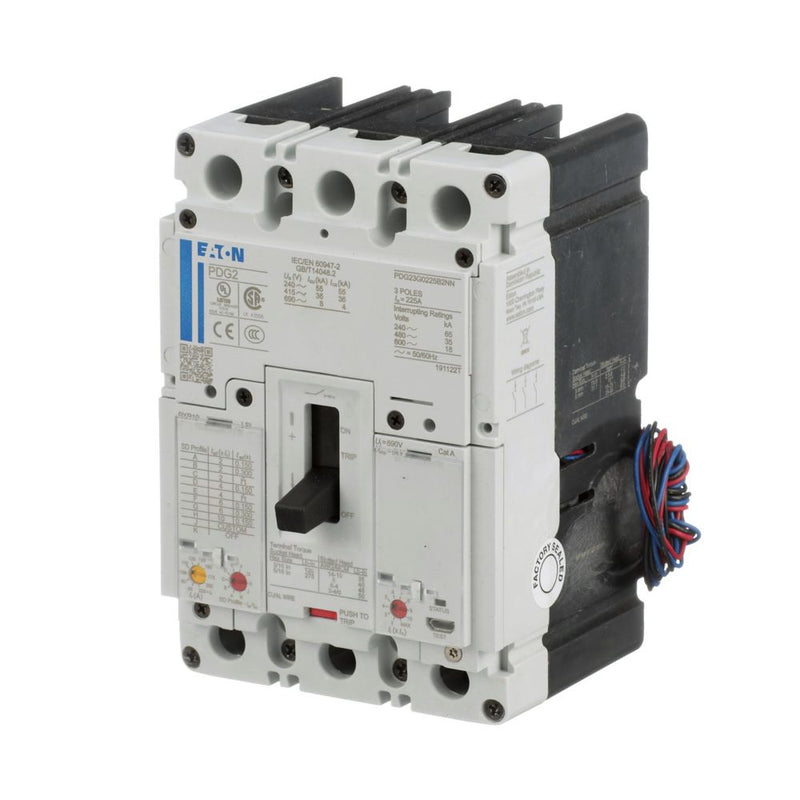

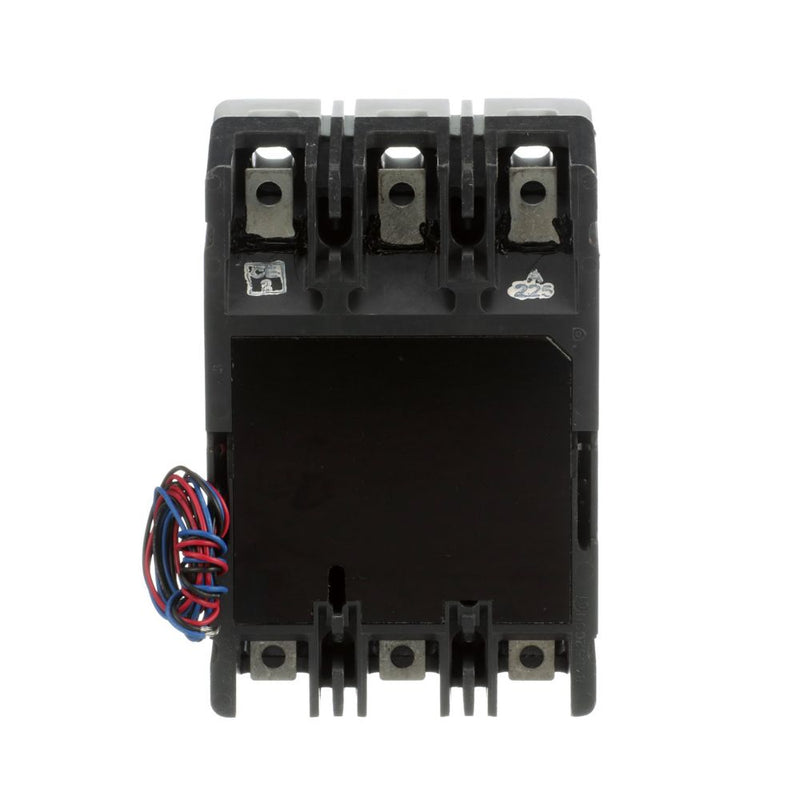

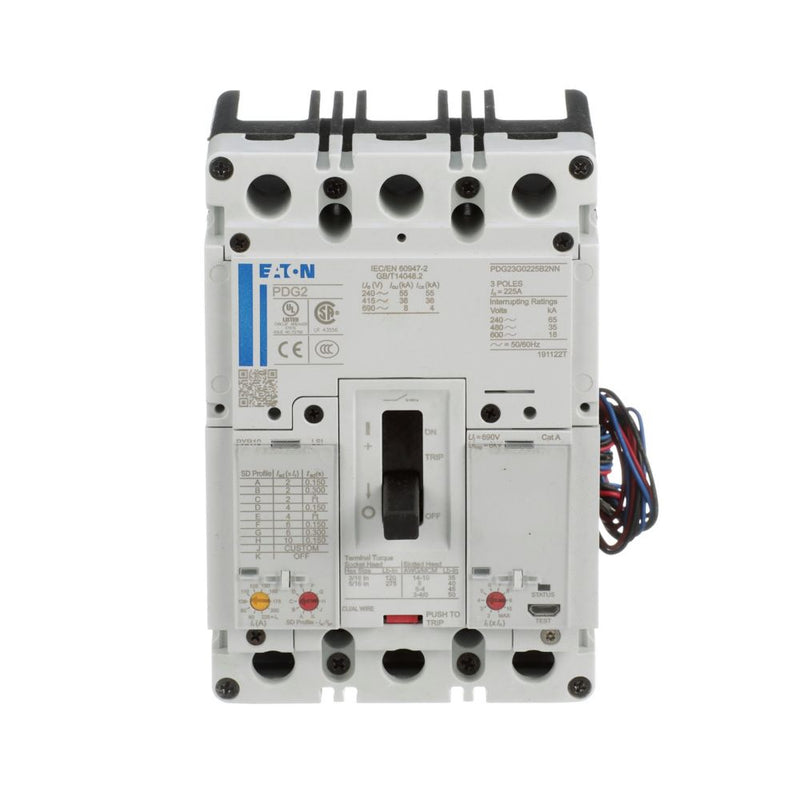

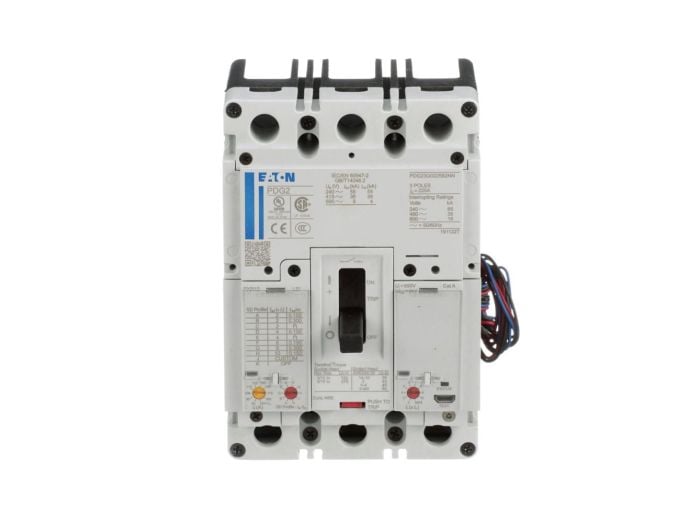

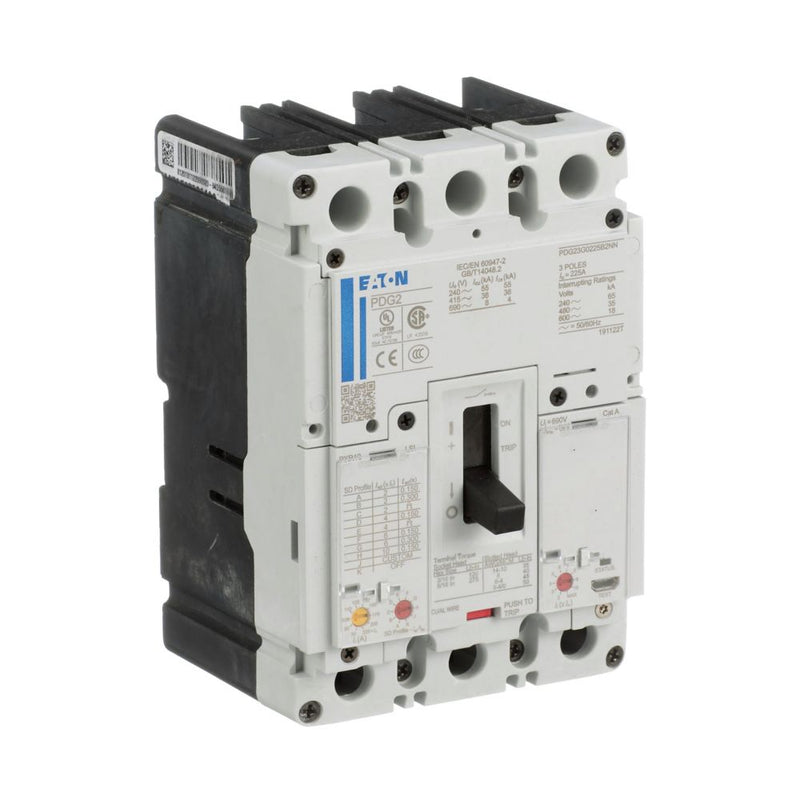

The Eaton PDG23G0150B2NJ is a Power Defense molded case circuit breaker, globally rated, designed with Frame 2 and three poles. Rated at 150A and 600 Vac, it provides reliable protection in commercial and industrial power distribution systems. It has a 35kA interrupting capacity at 480VAC.
- Globally rated
- Standard line and load terminals
- PXR10 LSI TU trip unit for precise protection and monitoring
Product Highlights
This Eaton circuit breaker is ideal for power distribution systems requiring reliable overcurrent protection.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: PDG23G0150B2NJ
-
Country of Origin: Dominican Republic
Technical Specifications
-
Product Name: Eaton Power Defense molded case circuit breaker
-
Catalog Number: PDG23G0150B2NJ
-
UPC: 786679297209
-
Product Length/Depth: 203.2 mm
-
Product Height: 152.4 mm
-
Product Width: 165.1 mm
-
Compliances: RoHS Compliant
-
Certifications: IEC 60947-2 CCC Marked CSA UL 489
-
Product Type: Molded case circuit breaker
-
Amperage Rating: 150 A
-
Circuit breaker frame type: Complete breaker
-
Frame: 2
-
Number of poles: Three-pole
-
Circuit breaker type: PD2 Global
-
Class: Class A
-
Trip Type: T281
-
Voltage rating: 600 Vac
-
Terminals: Standard Line and Load
-
Interrupt rating: 35 kAIC at 480 Vac
-
Interrupt rating range: 30 kAIC Icu/ 22.5 kAIC Ics/ 63 kAIC Icm @440V (IEC) 10 kAIC Icu @125 Vdc 25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @480V Brazil (IEC) 36 kAIC Icu/ 36 kAIC Ics/ 75.6 kAIC Icm @380-415V (IEC) 55 kAIC Icu/ 55 kAIC Ics/ 121 kAIC Icm @240V (IEC) 20 kAIC Icu/ 15/13 kAIC Ics/ 42 kAIC Icm @525V South Africa (IEC) 18 kAIC @600V (UL/CSA) 8 kAIC Icu/ 4 kAIC Ics/ 16.8 kAIC Icm @690V (IEC) 35 kAIC @480V (UL) 65 kAIC @240V (UL) 10 kAIC Icu @250 Vdc
-
Manufacturer: Eaton
-
Amperage: 150
-
Voltage: 600
-
Voltage Type: AC
-
Poles: 3
-
Frame Type: PDG
-
Part Number: PDG23G0150B2NJ
-
Brand: Eaton
-
Category: Circuit Breaker
-
Item Subcategory: Molded Case
-
Family: Power Defense Series
-
Type: PDG
-
Phase: 3
-
AIC rating: 35kA@480V
-
Connection: Feed-Thru
-
Functions: LSI - Long Time, Short Time and Instantaneous
-
Terminal Connection: Standard Line and Load Side Lug
-
Temp Rating: -13 to 158 4.0125 ( new and the same as Gross Weight, Net Weight, Net Weight and Product Weight)
-
Sub-Category: Molded Case
-
Weight: 4.98 lbs
