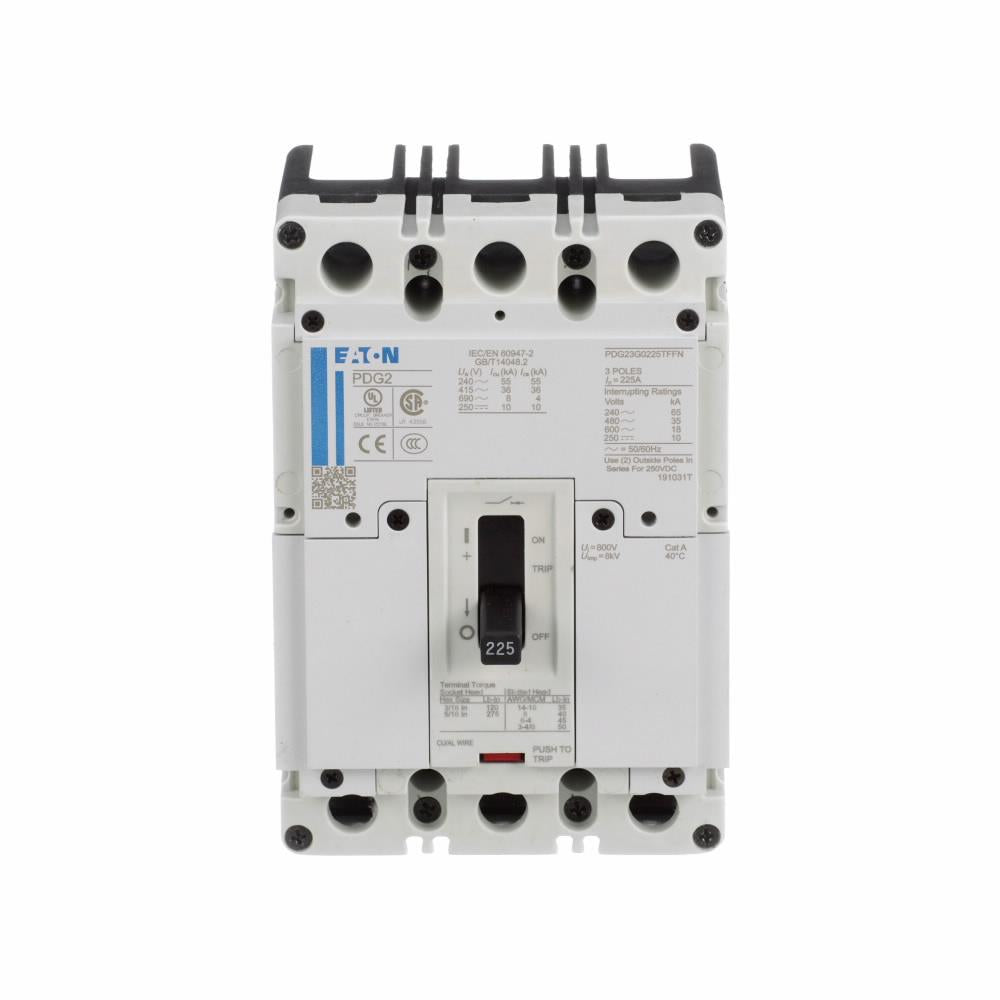

EATON PDG23G0100TFFL PDG2 PD2 Global Ratings 600 VAC 100 A 35 kA interrupt 3 poles T-M Fxd-Fxd TU trip

EATON
Brand: EATON
SKU: PDG23G0100TFFL
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

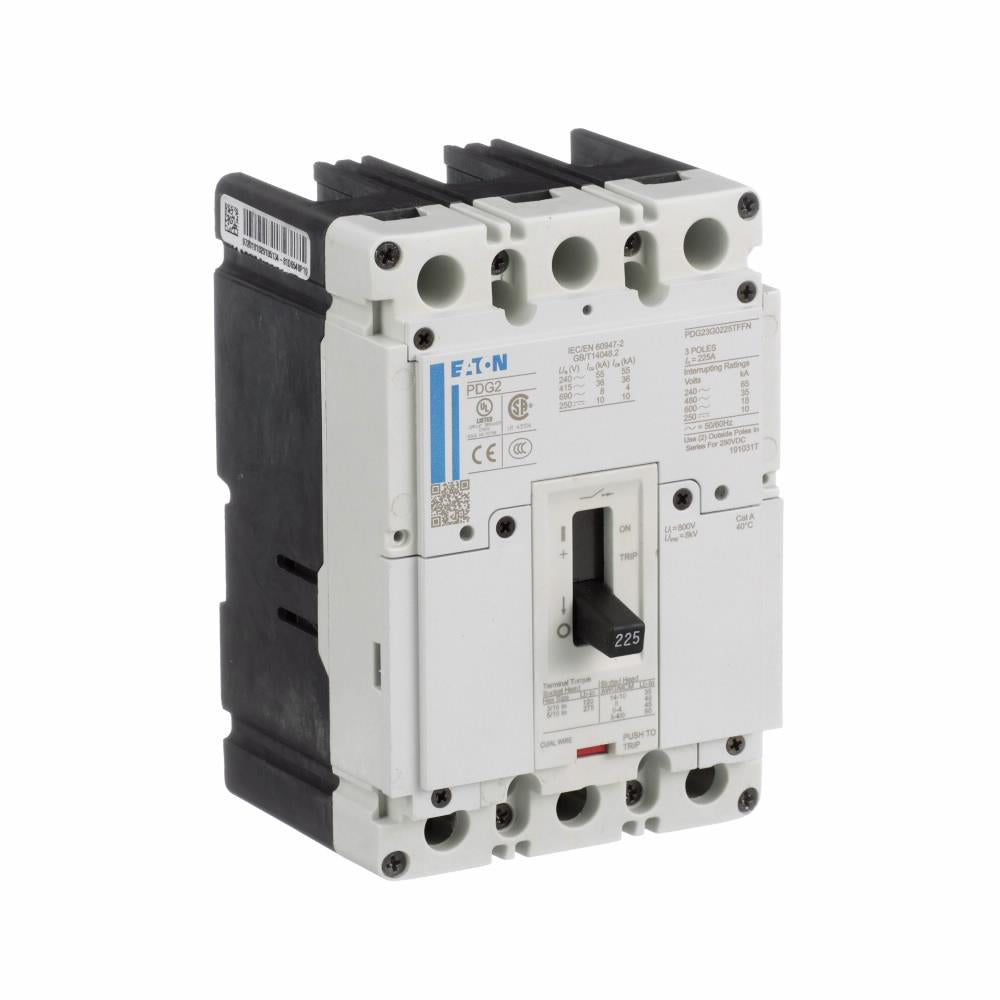

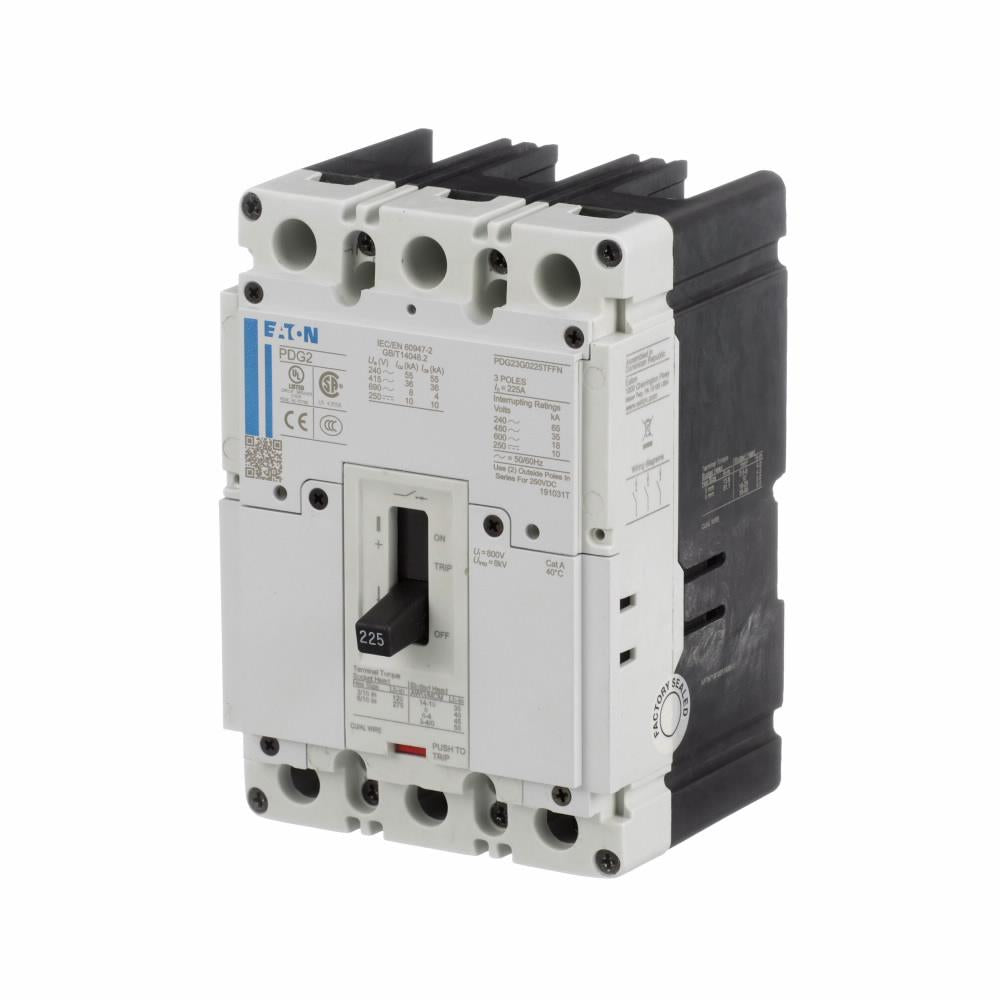

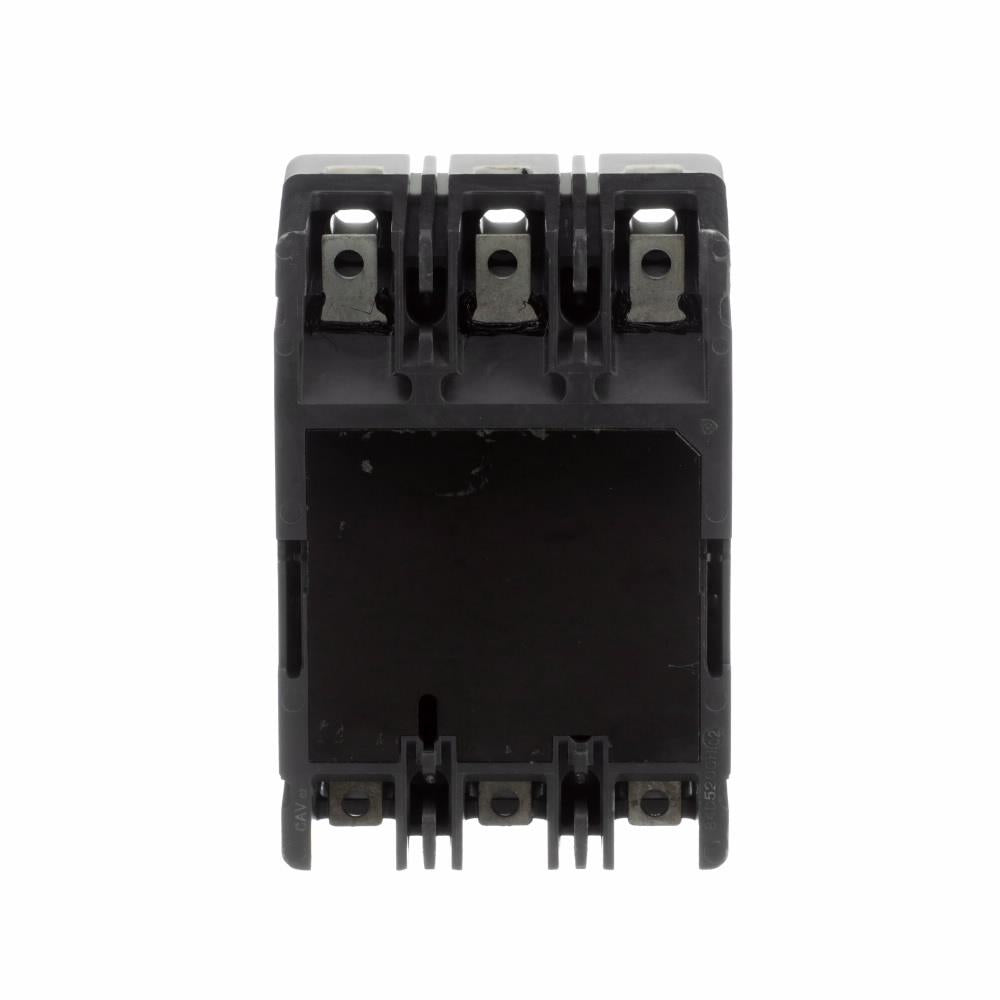

The EATON PDG23G0100TFFL is a molded case circuit breaker designed for various applications. It operates at 600 VAC with a rating of 100 A and features a 35 kA interrupt capacity along with three poles. This breaker is part of the PD2 Global Ratings series, optimized for safety and efficiency.

  • Operating Voltage: 600 VAC
  • Amperage Rating: 100 A
  • Interrupt Rating: 35 kA

Product Highlights

This circuit breaker is essential for reliable electrical distribution in commercial settings.

Product Information

Standard Information

  • Manufacturer: Eaton
  • Part Number: PDG23G0100TFFL

Technical Specifications

  • Power Rating: 3 W
  • Frequency Rating: 50 to 60 Hz
  • Frame: 2
  • Connection Type: Load
  • Enclosure Type: IP2X
  • Wire Size: 14 to 1/0 AWG, 28 to 53.5 sq-mm
  • Temperature Rating: -20 to +70 deg C
  • Dimensions: 6 in H x 4.1 in W x 3.5 in D
  • Trip Type: T-M (Fxd-Fxd) TU
