Eaton PDG13C0100TFFJ Power Defense PD 100A 18kA/480V T-M (Fxd-Fxd) TU

Product Description

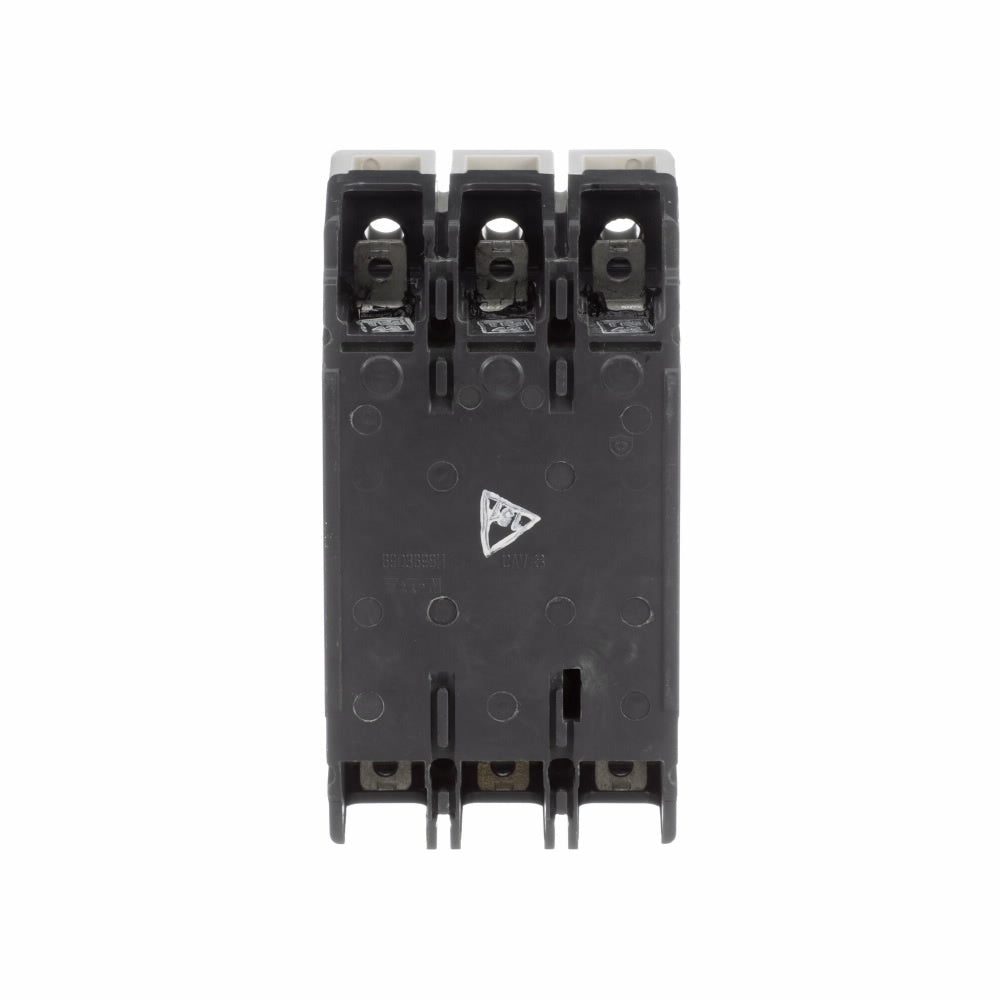

Eaton Power Defense molded case circuit breaker PDG13C0100TFFJ is a three-pole breaker with an amperage rating of 100 amps. It operates at a voltage of 600 volts with an interrupt rating of 18 kiloamps at 480 volts. This breaker features a thermal-magnetic trip system for reliable operation.

• 100 amps rated current
• Three poles for enhanced circuit protection
• UL 489 compliant with various certifications

Product Highlights

This circuit breaker is designed for use in various applications including generation of conventional and renewable energy, marine vessels, and stationary machinery.

Product Information

Standard Information

• Brand: Eaton
• Frame: 1

Technical Specifications

• Catalog Number: PDG13C0100TFFJ
• Current Rating: 100 A
• Voltage Rating: 600 Vac
• Number of Poles: 3
• Interrupt Rating: 18 kAIC at 480 Vac
• Trip Type: T-M (Fxd-Fxd) TU
• Country of Origin: Dominican Republic
• Material: Glass Polyester
