Product Description

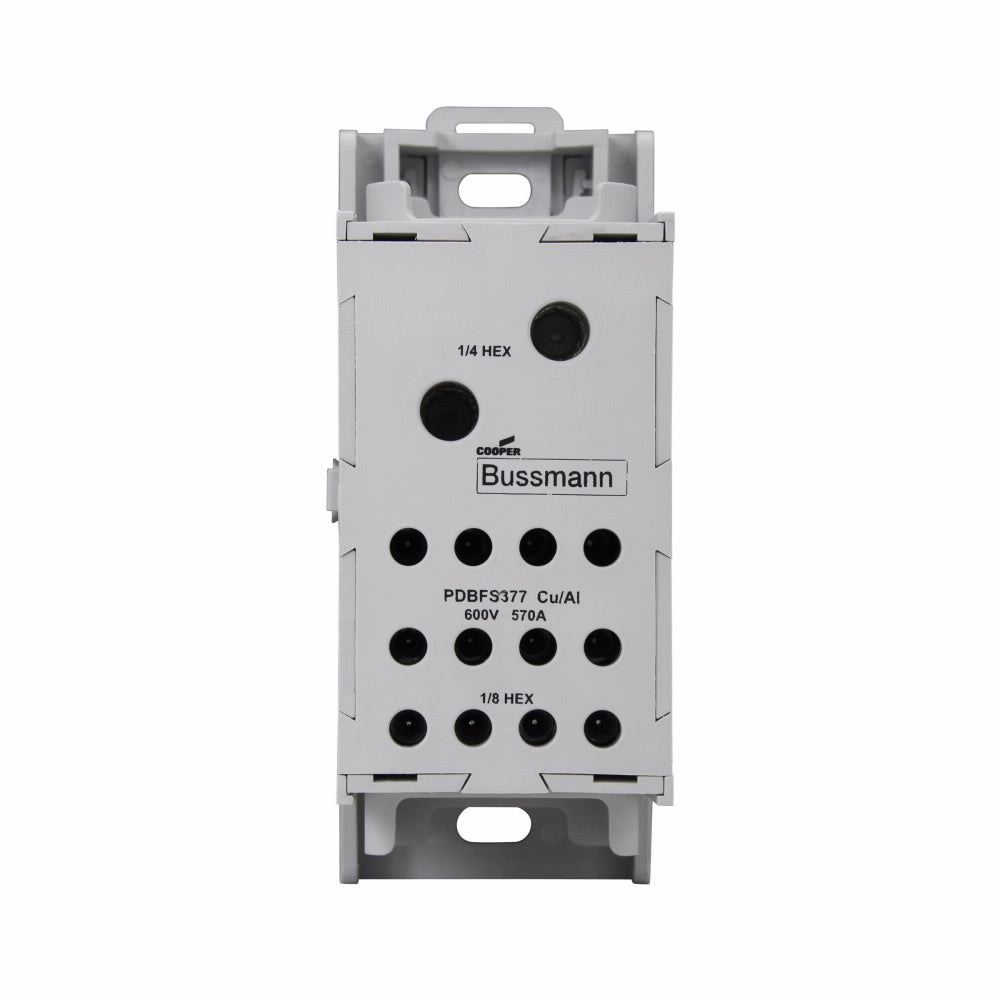

The Eaton PDBFS377 is a power distribution block designed for electrical assemblies and panels. It operates at up to 600 VAC and 570 A and supports both copper and aluminum conductors.
- IP20 finger safe design enhances safety.
- Features wire ready captive termination screws.
- Accommodates multiple pole configurations.
Product Highlights
This product meets UL standards for safety and performance while allowing flexibility in installation.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171265990
Technical Specifications
-
Amperage Rating: 570 A
-
Application: Electrical Assemblies, Panels and EOEMs Applications
-
Dimensions: 4.66 inches L x 1.875 inches W x 2.93 inches H
-
Finish: Tin Plated
-
Fuse Type: Class LPJ/LPN-RK/LPS-RK/FRN-R/FRS-R/JJN/JJS/SC/LP-CC/FNQ-R/KTK-R
-
Manufacturer Part Number: PDBFS377
-
Material: Aluminum
-
Number of Poles: 1
-
Primary Connections Pole: 1
-
Secondary Connection Pole: 12
-
Series: PDBFS
-
Short Circuit Current Rating: 200/100 kA
-
Standards/Approvals: cULus Listed, RoHS Compliant, UL Listed
-
Voltage Rating: 600 VAC/VDC
