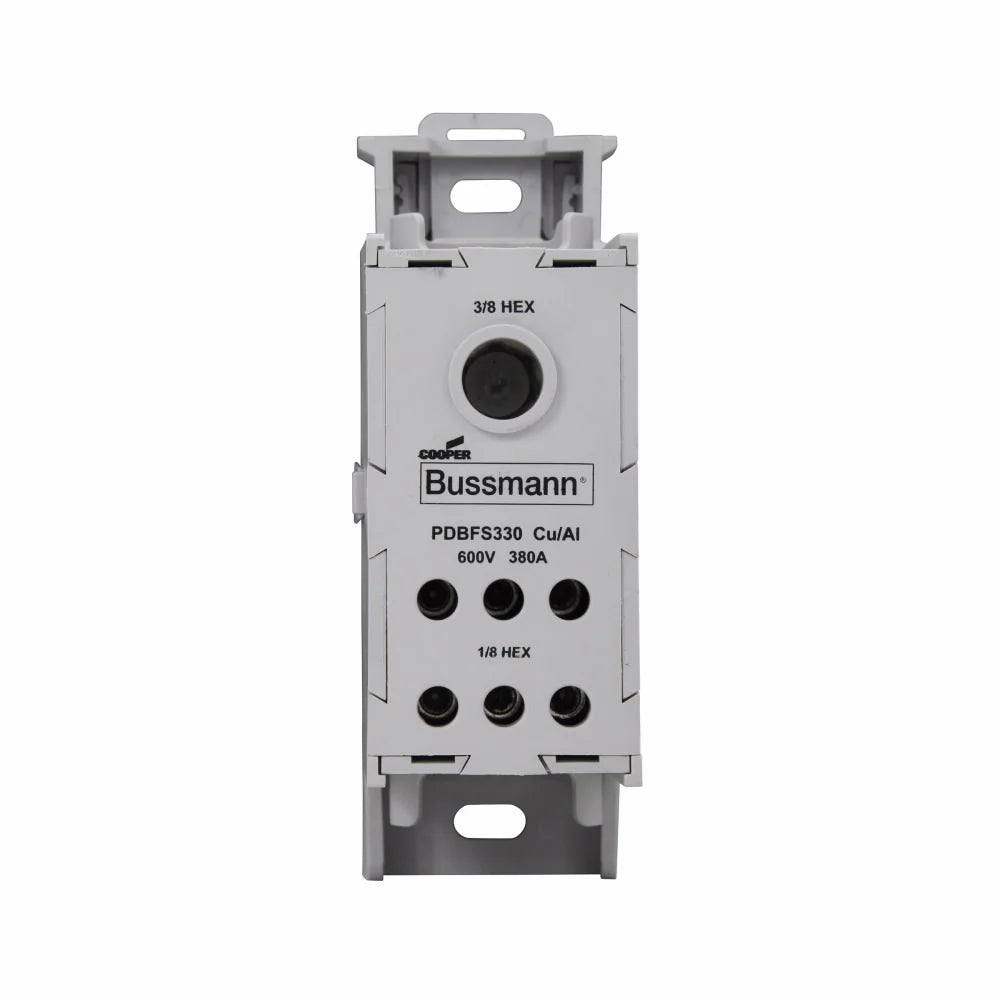

Eaton PDBFS330 BUS PDB 380A 1-6-500 IN 6-2-14 OUT (2)

Product Description

The Eaton PDBFS330 is a power distribution block designed for reliable electrical connections. With a voltage rating of six hundred VAC/VDC and an amperage rating of three hundred eighty A, this block is essential for effective power distribution in various applications.

• IP20 finger safe protection for increased safety.
• Wire-ready captive termination screws enhance installation efficiency.
• Sliding DIN rail latch simplifies mounting.

Product Highlights

This distribution block is built to support heavy-duty electrical systems while maintaining safety standards. It features a modular design that allows multiple blocks to be interconnected.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171265986

Technical Specifications

• Amperage Rating: 380 A
• Voltage Rating: 600 VAC/VDC
• Number of Poles: 1
• Dimensions: 4.66 inches L x 1.55 inches W x 2.95 inches H
• Material: Aluminum
• Short Circuit Current Rating: 200/100 kA
• Standards/Approvals: CSA File No. 47235 Guide QPQS, IEC 60529, RoHS Compliant, UL 1953 File No. E256146
