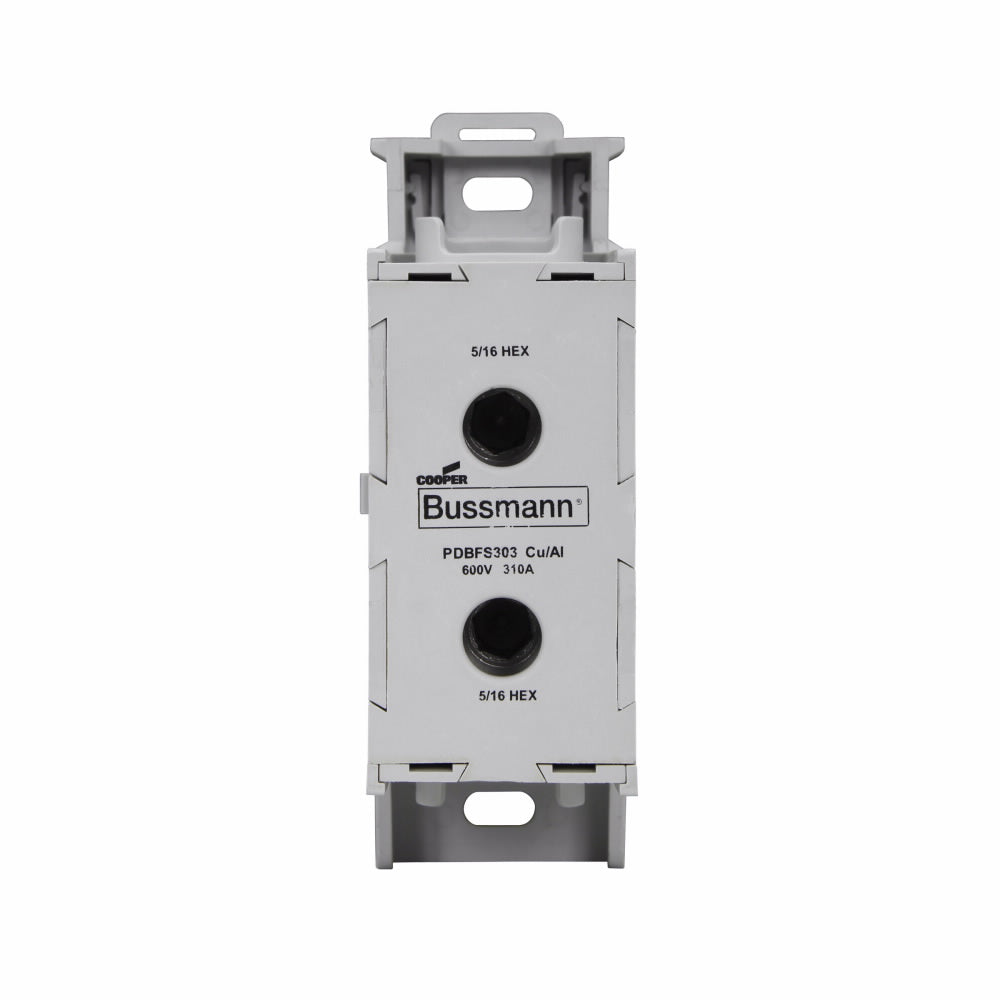

Eaton PDBFS303 PDB 310A 1)350-6 IN 1)350-6 OUT

Product Description

The Eaton PDBFS303 Power Distribution Block is designed for safe and efficient electrical connections. With a voltage rating of six hundred volts alternating current/direct current and an amperage rating of three hundred ten amps, this block serves a crucial role in electrical assemblies and panels.

• Accepts wire sizes from six AWG to three hundred fifty kcmil.
• Constructed from aluminum with a tin plated finish for enhanced durability.
• Rated for short circuit current of two hundred kiloamperes.

Product Highlights

The design includes IP20 finger protection ensuring safety by isolating energized connections. It also features captive termination screws for easy installation.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171265984

Technical Specifications

• Amperage Rating: 310 A
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Dimensions: 4.66 in L x 1.54 in W x 2.87 in H
• Finish: Tin Plated
• Material: Aluminum
• Number of Poles: 1
• Series: PDBFS
• Short Circuit Current Rating: 200 kA
• Standards/Approvals: CE Certified, CSA Certified, IEC Certified, RoHS Compliant, UL 1953
• Voltage Rating: 600 VAC/VDC
