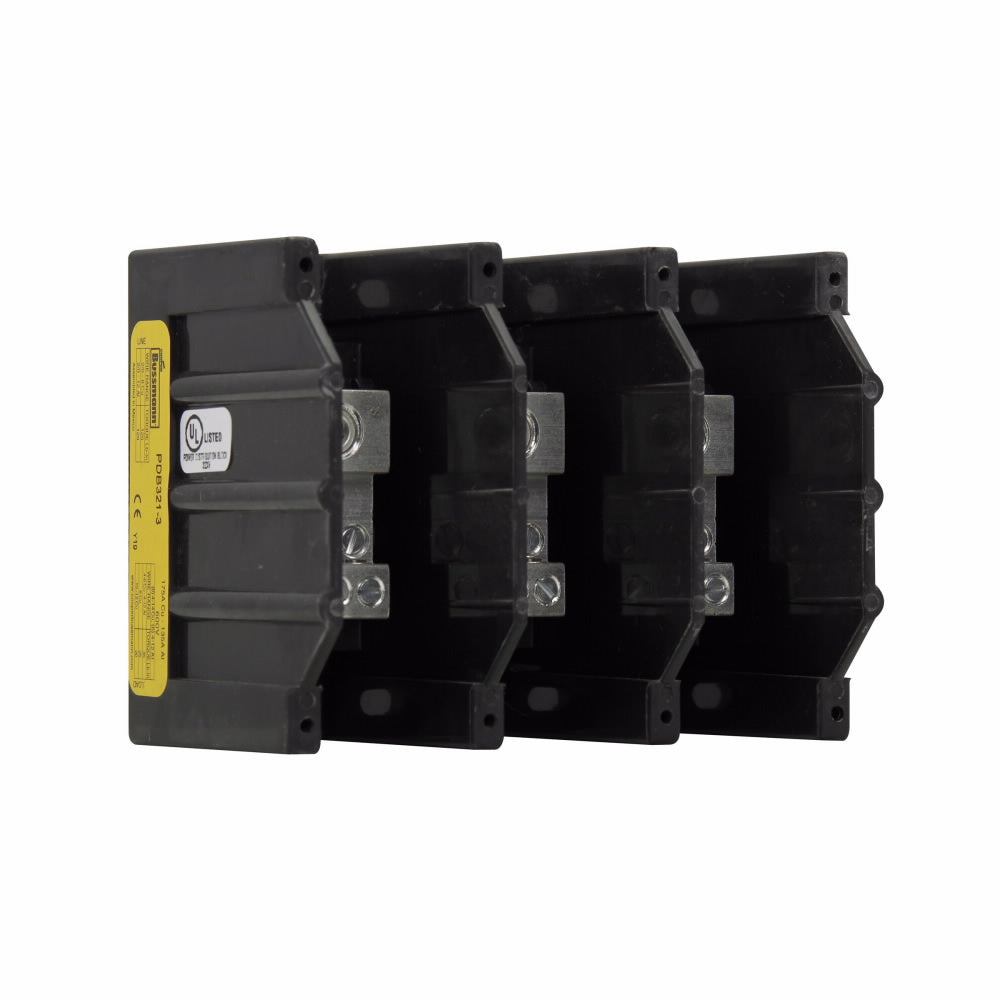

Eaton PDB321-3 BUS POWER DISTRIBUTION BLOCK 600 VAC/VDC

Product Description

The Eaton PDB321-3 is a barrier power distribution block designed for effective electrical distribution. It is rated for six hundred volts AC and DC, with a maximum current of one hundred seventy-five amps. This three-pole device accommodates wire sizes from eight to two-ought American Wire Gauge for line connections and fourteen to four AWG for load wire connections.

• Three pole block for robust connectivity
• Supports a short circuit current rating of two hundred kA
• UL listed for compliance with safety standards

Product Highlights

This power distribution block enables effective power distribution in electrical systems while ensuring compliance with NEC and OSHA standards.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: PDB321-3

Technical Specifications

• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 175 A
• Short Circuit Current Rating: 200 kA
• Number of Poles: 3
• Primary Connections Pole: (1) Box Lug
• Secondary Connection Pole: (6) Box Lug
• Dimensions: 4 inches L x 5.2 inches W x 3.32 inches H
• Material: Aluminum
• Finish: Tin Plated
• Fuse Type: Class CC
• Application: Power Distribution, Electrical Assemblies, Panels and EOEMs Applications
• Standards/Approvals: CE Certified, CSA Certified, IEC Certified, NEC Certified, RoHS Compliant, UL 1953
