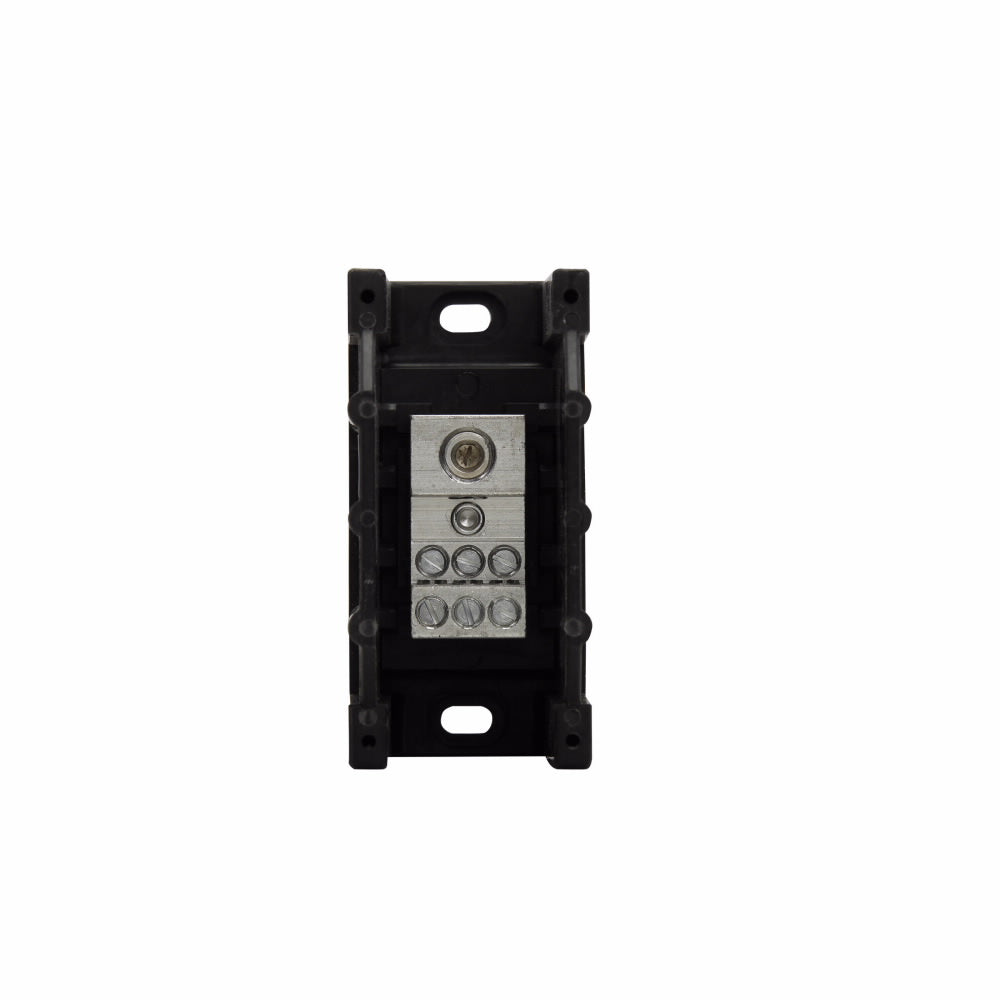

Eaton PDB321-1 BUS POWER DISTRIBUTION BLOCK 600 VAC/VDC 175 A 1

Product Description

The Eaton PDB321-1 is a power distribution block designed for high short-circuit current rating applications. This device operates at 600 VAC/VDC and supports a maximum current of 175 A. It features a single pole with primary connections and secondary connections for optimized power distribution. It is suitable for various electrical assemblies and panels needing robust power management.

• Compatible with copper conductors ranging from eight to two over zero American Wire Gauge.
• Supports various load configurations with multiple box lug connections.
• Maintains compliance with NEC and OSHA standards.

Product Highlights

This distribution block enhances the safety and efficiency of electrical systems, providing reliable service in industrial applications.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: PDB321-1

Technical Specifications

• Amperage Rating: 175 A
• Voltage Rating: 600 VAC/VDC
• Number of Poles: 1
• Short Circuit Current Rating: 200/100 kA
• Dimensions: 4 in L x 1.96 in W x 3.32 in H
• Material: Aluminum/Phenolic
• Fuse Type: Class CC/G/J/T
• Standards/Approvals: CE Certified, CSA Certified, IEC Certified, RoHS Compliant, UL 1953
